This guide will be helpful for repairing the speaker if the troubleshooting page recommends that you replace it. This is a necessary step when you have determined no other way to repair your current speaker.
-
-

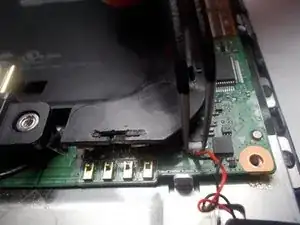

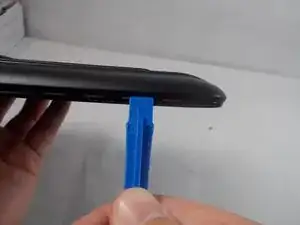

Insert the plastic opening tool between the edge of the screen and the back cover.
-

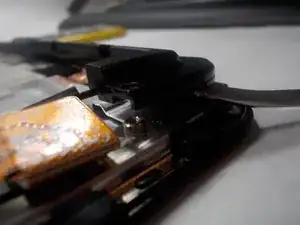

Gently pry them apart. Use hands to pull them apart if necessary.
-
-
-

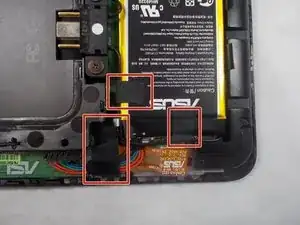

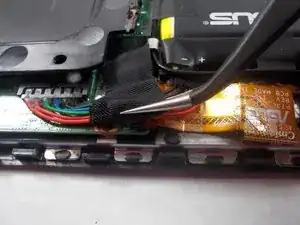

Remove the three pieces of tape that secure the battery and its wires. Peel gently so you don’t damage any wires.
-
-
-

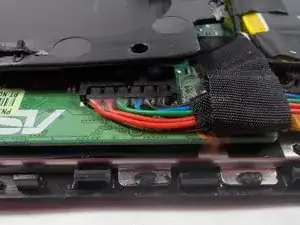

Disconnect the ribbon from the motherboard by gently pulling with your fingers.
-

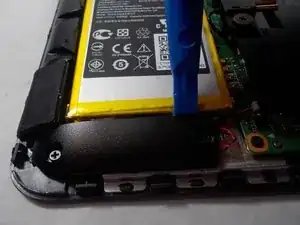

Using the opening tools, pry the battery off of the adhesive.
-
-
-

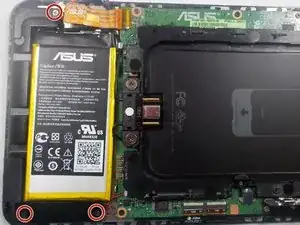

Use a Phillips #00 screwdriver to remove the three 2.5mm screws that secure the speaker case to the motherboard.
-
-
-

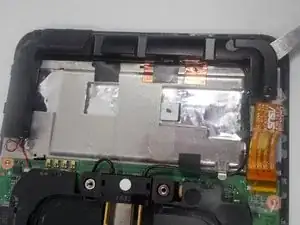

Use tweezers to remove the three pieces of tape that are covering the metal.
-

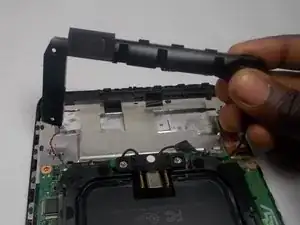

Insert the metal spudger beneath the speaker case and wedge it upwards to remove speaker case from the device body.
-
To reassemble your device, follow these instructions in reverse order.
