Einleitung

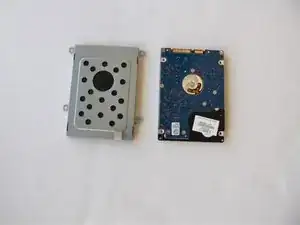

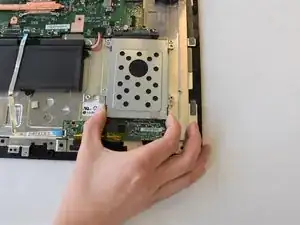

We will replace the hard drive in this guide. The only necessary tools are a screwdriver and a spudger/plastic opening tool.
-
-
Remove the grey scuff guard at the bottom of the PC by pressing down on it, and pulling it away.
-
Lift the hinge and remove the grey rubber tabs on either side of the PC’s model information.
-
Remove the two 7.62mm Phillips #1 screws beneath the rubber tabs under the hinge and the four 7.62mm Phillips #1 screws where the scuff guard was removed.
-
Remove the two 4.74mm Phillips #1 screws under the hinge (near the hinge joints) and a 4.74mm Phillips #1 screw under the handle.
-
-
-
Disconnect the three cables connecting the back panel ports to the motherboard.
-
Flip up the locking latch holding the two ribbon cables with a plastic opening tool and pull the cables out.
-
Gently wiggle the third connector out of its socket.
-
-
-
Remove the four 3.5 mm Phillips #1 screws on the edges of the outer casing, two on each side.
-
To reassemble your device, follow these instructions in reverse order.
