ASUS Portable AiO PT2001 Motherboard Replacement

Geschrieben von: Vinu Weerasinghe
  • Kommentare: 1
ASUS Portable AiO PT2001 Motherboard Replacement

Schwierigkeitsgrad

Easy

Schritte

15

Zeitaufwand

20 Minuten

Einleitung

This guide will show how to replace the motherboard of the ASUS Portable AiO PT2001.

  1. UsAYPEF6ElPTE1L6
    UsAYPEF6ElPTE1L6
    m6sOoGcuGdxSZfIK
    yIIZQLcHFMVOtCAA

    • Remove the grey scuff guard at the bottom of the PC by pressing down on it, and pulling it away.

    • Lift the hinge and remove the grey rubber tabs on either side of the PC’s model information.

    • Remove the two 7.62mm Phillips #1 screws beneath the rubber tabs under the hinge and the four 7.62mm Phillips #1 screws where the scuff guard was removed.

    • Remove the two 4.74mm Phillips #1 screws under the hinge (near the hinge joints) and a 4.74mm Phillips #1 screw under the handle.

    How to open the 2 screws at the root of the handle? (The orange colored in your chart) There are two squares gray toppers. Which type of tools to use to open that toppers? Thank you so much for this instruction.

    adazhu -

  2. L6JeL1qPWBvL3Pdq
    L6JeL1qPWBvL3Pdq
    R5IAqiK3PtSQ6SpN
    YINZGlpgIfnKEmvX

    • Use 1-2 plastic opening tools or nylon spudgers to firmly pry open the back panel.

    • We recommend that you start prying the panel where the scuff guard was removed.

    • Prying the back panel will cause loud popping noises. This is just the sound of the clips that hold the back panel to the PC popping off.

    • Using excess force while prying can break the clips that hold the back panel and can damage the ports on the side of the PC.

  3. mZXMd4lNOOSwbNku
    mZXMd4lNOOSwbNku
    McRWuvXvXGN6KPal
    KOy6VUsDXyX1Ru4A

    • Disconnect the three cables connecting the back panel ports to the motherboard.

    • Flip up the locking latch holding the two ribbon cables with a plastic opening tool and pull the cables out.

    • Gently wiggle the third connector out of its socket.

  4. DEluZ1QflhQx6Crn
    DEluZ1QflhQx6Crn
    5XdxX6HJ2nkS6dMm

    • Peel off the tape attaching the metal enclosure to the heat sink.

    • Lift the metal enclosure off of the motherboard.

  5. q2WbUmVPG4BKAkCX
    q2WbUmVPG4BKAkCX
    XHaLNmQnmlUvG4kP
    54OwuWpJlTeqdJ1C

    • Pull the jaws of the white plastic frame apart. This will pop the front of the RAM up.

    • Gently lift the front edge of the RAM.

    • Pull the RAM out and up.

  6. ZbQarHGOMTrJxHj6

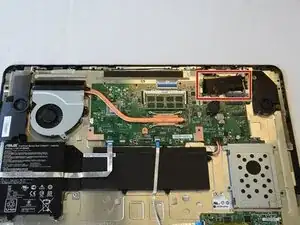

    • The wireless card is on the corner of the motherboard next to the speaker. Remove the black tape to reveal the wireless card.

  7. TisXqJmbqfFMBtEL
    TisXqJmbqfFMBtEL
    FntZn4MeVlXJRvnA

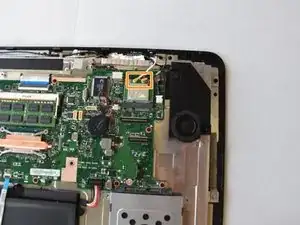

    • Remove the 3.5 mm Phillips #1 screw from the wireless card.

    • Remove the connectors by pulling straight up on their ends.

  8. XJsahtISMR1YoS6i
    XJsahtISMR1YoS6i
    U4TmHyC32HtsqRCG

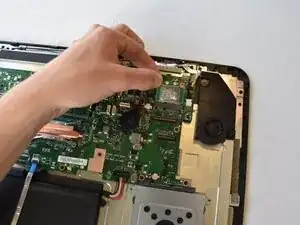

    • Remove the wireless card from the casing by lifting up then pulling out.

    • The wireless card is fragile. Be careful when pulling it out of the casing.

  9. QjN3PVDHm1PivJMU
    QjN3PVDHm1PivJMU
    yvKMqlYmgDebKE3F

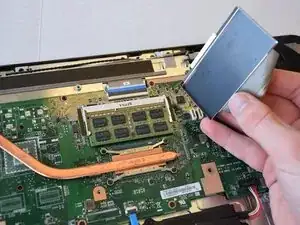

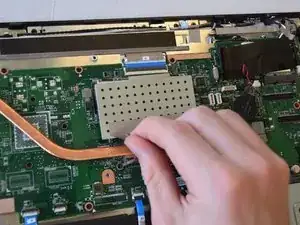

    • Remove the tape attached to the heat sink and the metal enclosure.

    • Lift the metal enclosure off.

  10. TMsTIIfM3WQmXEK4

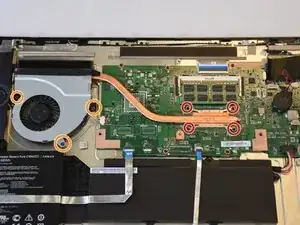

    • Remove the four 3.0 mm Phillips #1 screws attaching the heat sink to the motherboard.

    • Remove the three 4.0 mm Phillips #1 screws connecting the fan to the device.

  11. q41p6NhxOPdJvJm5

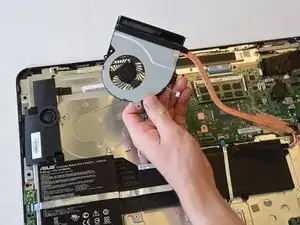

    • Lift the heat sink and fan assembly off of the device.

    • When putting the heat sink back into place, reapply thermal paste to the underside of the heat sink where it rests on the motherboard.

  12. eJQaoRfWheTknT2A
    eJQaoRfWheTknT2A
    p34kgDGSnW1DLL2T
    KbU1NcpEsQVwlxga

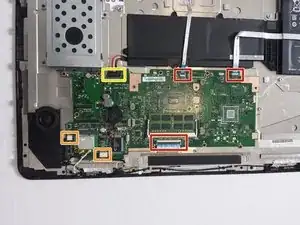

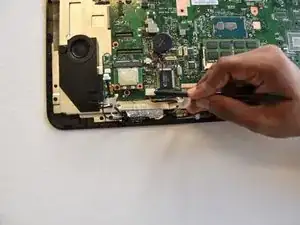

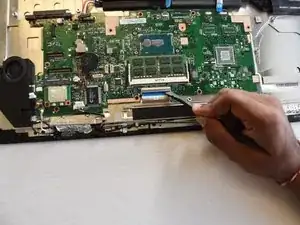

    • Flip up the locking mechanism and disconnect the three cables using a nylon spudger.

    • Disconnect two more cables by pulling back on the cable using a nylon spudger.

    • Disconnect the battery cable by pulling up on the black connector.

  13. rxVYURm5rAVVMyfp
    rxVYURm5rAVVMyfp
    H3AksLoa5VBPs6I2

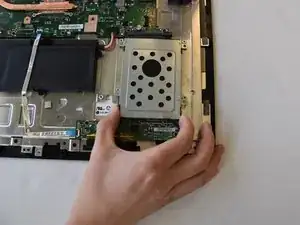

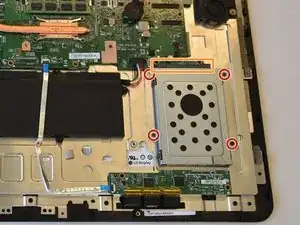

    • Use a Phillips #1 screwdriver to remove the four-5mm screws that hold the hard drive enclosure to the PC.

    • Pull the hard drive away from the motherboard and set it aside.

  14. lRJLPxlJvLTTBCw2

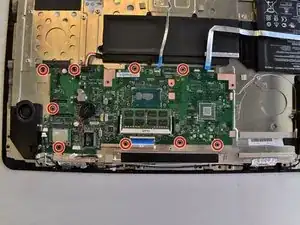

    • Use a Phillips #1 screwdriver to remove the nine-3.5mm screws located at the sides of the motherboard.

    • The screws are denoted by white triangles.

  15. 26SGBmsWApAl3vuD

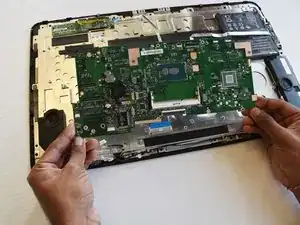

    • Lift the motherboard off the motherboard standoffs.

    • Remembering the position of the motherboard standoffs makes it easier to position the motherboard when placing it back in the PC.

Abschluss

To reassemble your device, follow these instructions in reverse order.
