ASUS Portable AiO PT2001 Speaker Replacement

Geschrieben von: Erich Fenczik Warnock
  • Kommentare: 1
ASUS Portable AiO PT2001 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

This guide will demonstrate how to remove the pair of speakers. This process is straightforward, and no special tools are necessary.

  1. UsAYPEF6ElPTE1L6
    UsAYPEF6ElPTE1L6
    m6sOoGcuGdxSZfIK
    yIIZQLcHFMVOtCAA

    • Remove the grey scuff guard at the bottom of the PC by pressing down on it, and pulling it away.

    • Lift the hinge and remove the grey rubber tabs on either side of the PC’s model information.

    • Remove the two 7.62mm Phillips #1 screws beneath the rubber tabs under the hinge and the four 7.62mm Phillips #1 screws where the scuff guard was removed.

    • Remove the two 4.74mm Phillips #1 screws under the hinge (near the hinge joints) and a 4.74mm Phillips #1 screw under the handle.

    How to open the 2 screws at the root of the handle? (The orange colored in your chart) There are two squares gray toppers. Which type of tools to use to open that toppers? Thank you so much for this instruction.

    adazhu -

  2. L6JeL1qPWBvL3Pdq
    L6JeL1qPWBvL3Pdq
    R5IAqiK3PtSQ6SpN
    YINZGlpgIfnKEmvX

    • Use 1-2 plastic opening tools or nylon spudgers to firmly pry open the back panel.

    • We recommend that you start prying the panel where the scuff guard was removed.

    • Prying the back panel will cause loud popping noises. This is just the sound of the clips that hold the back panel to the PC popping off.

    • Using excess force while prying can break the clips that hold the back panel and can damage the ports on the side of the PC.

  3. mZXMd4lNOOSwbNku
    mZXMd4lNOOSwbNku
    McRWuvXvXGN6KPal
    KOy6VUsDXyX1Ru4A

    • Disconnect the three cables connecting the back panel ports to the motherboard.

    • Flip up the locking latch holding the two ribbon cables with a plastic opening tool and pull the cables out.

    • Gently wiggle the third connector out of its socket.

  4. AqhHhhrSTuJH4Lwu
    AqhHhhrSTuJH4Lwu
    EMNWhmnBw1ULXBxE

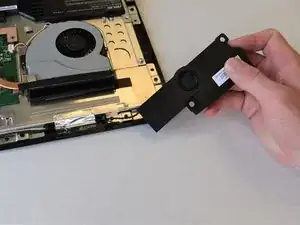

    • The two in-house speakers are located near the sides of the device with the motherboard in between.

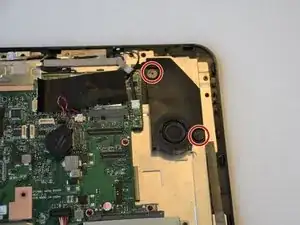

    • Remove the two 2.35 mm Phillips #1 screws from each speaker.

  5. 3FwtxfmTciBCULGM
    3FwtxfmTciBCULGM
    TeQPiWfRsRKOIkM1

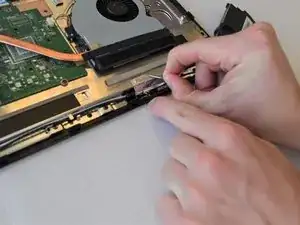

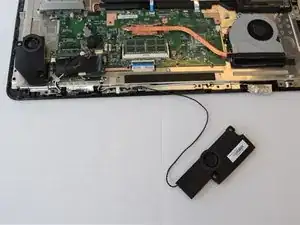

    • The two speakers are attached to each other with a cord that is threaded along the side of the casing. Gently pull the wire out

    • The cord is secured under two pieces of tape with multiple other wires. Make sure that you only remove the wire connecting the speakers.

    • Keep in mind that when replacing the wires, you will need to secure the tape again. Accordingly, be careful not to tear the tape when peeling it.

  6. PQYWGv1sOVcHucIU

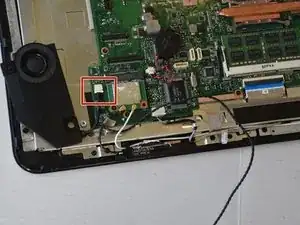

    • Pull the cord attached to the speaker out of the motherboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
