ASUS Q302L Back Case Replacement

Geschrieben von: Kerolus Gerges
  • Kommentare: 0
ASUS Q302L Back Case Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

Prerequisite Only

  1. CJFsBJjnGvUvpLxA

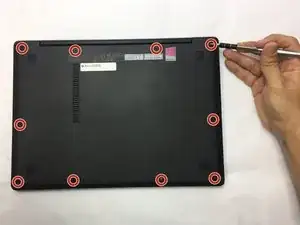

    • Make sure the laptop is disconnected from a power supply and is TURNED OFF.

    • Use a Phillips #0 screw driver to remove all ten 10 mm screws around the back of the laptop.

  2. XWDqtTJbnvbJIBVi
    XWDqtTJbnvbJIBVi
    jRjmQPEqTMMGiE4V
    Kc23UFl62ZffxFbc

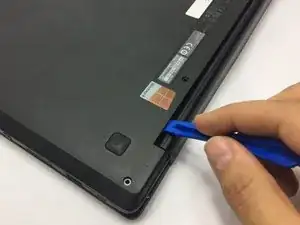

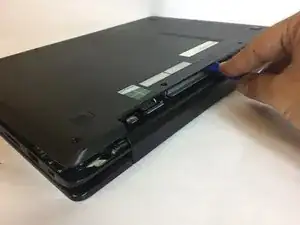

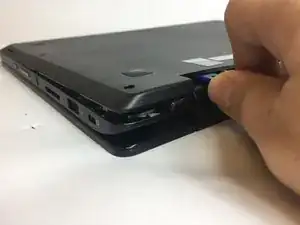

    • Wedge a plastic opening tool under the rear case near the hinge.

    • Pry around the outer edge to release the plastic clips holding the rear case to the laptop.

  3. NGawJCYhKyo1Cahm

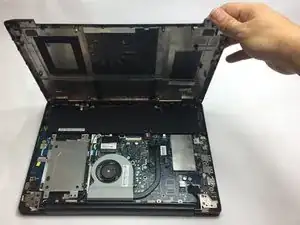

    • Once the cover is free from all the clips, remove the cover from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
