ASUS Q400A-BHI7N03 RAM Replacement

Geschrieben von: Matthew Gold
  • Kommentare: 4
ASUS Q400A-BHI7N03 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

Sometimes the RAM in your laptop can get damaged or might not be enough for the programs that you are running. Use this guide to remove and replace RAM.

  1. jkYkiHpsagJUDQaY

    • Turn off the laptop.

    • Disconnect the charging cable from the laptop.

    • Failure to unplug the cable could result in electric shock.

    • Flip the laptop over so that it is upside down.

    • The slightly raised area is the battery.

    • Orient the laptop so that the battery is away from you.

  2. XGhkIlVeWQocXSXH

    • In the top right corner, push the tab to the right to the unlocked position.

  3. DPslOTCWvkDMcDaL
    DPslOTCWvkDMcDaL
    at5OA5PZgAXTuKvL

    • Find the tab in the top left corner. With one finger, pull the tab to the left to the unlocked position.

    • While holding this tab in the unlocked position, gently pull the battery away from you.

    Maybe add a reminder to lock the battery back in that was unlocked in Step 2.

    Kevin Low -

  4. LO2dhYukKOZq1f4D

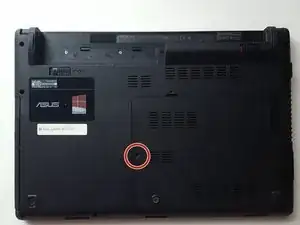

    • Flip the laptop so that it is upside down and locate a screw near the middle of the laptop. Remove the 8 mm PH0 screw.

  5. LXPILZoKCQ5ArN53
    LXPILZoKCQ5ArN53
    gRrv3hJCatC3TtCX

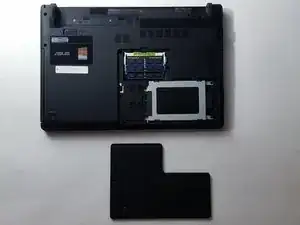

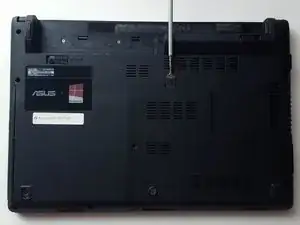

    • Use a metal opening tool, to remove the L shaped section. To avoid breaking the plastic, alternate the sides where you pry.

  6. e3dDIeftWrQ5YEiS
    e3dDIeftWrQ5YEiS
    ZnftusOInBP1vjfm
    jQvTUECXpZXFeCN6

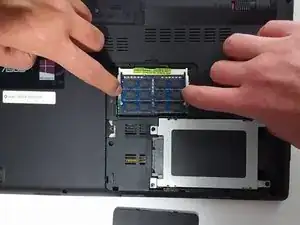

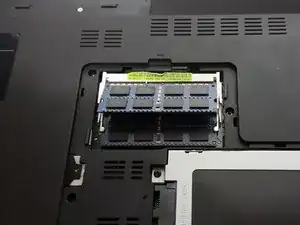

    • The RAM is located in the top of the section you uncovered.

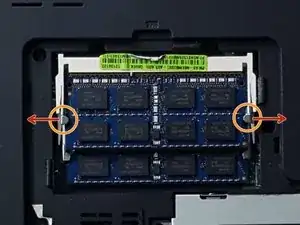

    • Identify the two metal tabs on both sides of the RAM.

    • Gently push both tabs outwards at the same time. The RAM will pop up.

    • Carefully pull the RAM out.

    Mention that there are 2 RAM modules that can be replaced.

    Jaspal Chauhan -

  7. EkpoMAQIVPYPo2IW
    EkpoMAQIVPYPo2IW
    Z1qwBITSBGWKRTEn

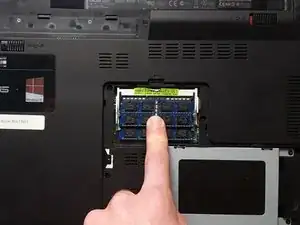

    • To put RAM back in, lineup the RAM with the plastic holder.

    • Slide it into the slot at a 30 degree angle and push down until it clicks into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
