ASUS Q400A-BHI7N03 Screen Replacement

Geschrieben von: Wan Ahmad Aiman
  • Kommentare: 1
ASUS Q400A-BHI7N03 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

If the screen is damaged, or has an incorrect display, it should replaced. The following is a comprehensive guide for replacing the screen.

  1. 2VBcicCjAm4NKwQQ

    • Flip the laptop on its back side with the battery facing toward you.

    • Slide the tabs with lock/unlock symbol, to the unlock position.

    • Grabbing the top edge of the battery, lift upward to relieve the battery from its slot.

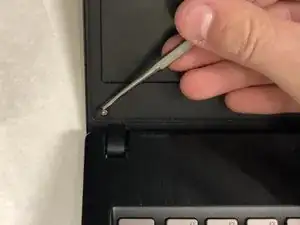

  2. Pnyi32GwBAJaWO4H

    • Lift the two black plastic circles off the screen using the plastic spudger.

    • Unscrew the two 8mm Phillips #0 screws.

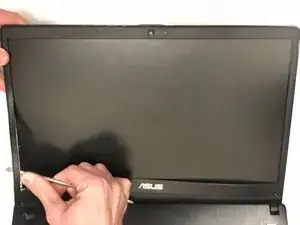

  3. 6eFBgU4wZK14N2oO

    • Pry the front edges of the screen using the spudger.

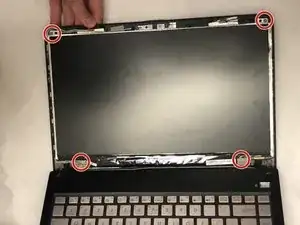

  4. D2mcPAwNmiPUlVrM

    • Remove the four black 8mm Phillips #0 screws and set them aside.

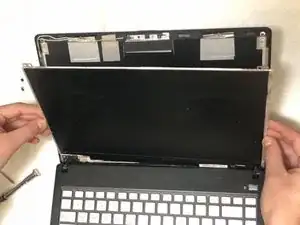

  5. 4LFgjmRA6LAsYhAJ

    • Pry the LCD from the front frame.

  6. G2DFvIX4G1Y5fCQZ

    • Pull the gold ribbon cable to disconnect the screen from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
