ASUS Q405U RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

25 - 30 Minuten

Einleitung

The RAM, (random access memory), helps process the data of your computer to increase speed. Issues with it are very serious, such as intermittent crashing or preventing the computer’s ability to turn on. which can be quite frustrating for the user as it can share symptoms with other failing components. This guide will go through with you step by step on how to replace the RAM of your ASUS Q405U.

  1. BFD6o3ZDLETKyqVK

    • Using the Phillips #1 screwdriver, remove eleven (11) 1.5 mm screws from the back cover.

  2. WiOStdoZBxgfVQLR

    • Pull the back cover off of your laptop. Use a spudger to help pry it off of the device.

  3. ewHr2IHWfF5mH43v
    ewHr2IHWfF5mH43v
    WbYgUdZUQOTOKo6F
    XLsvqwBjR1YUnhBM

    • Disconnect the 4 wires attached from the keyboard side of laptop to the screen side of laptop by pulling them out of their sockets on one end (as shown in picture).

  4. 2DFQytan4OsdBGBV

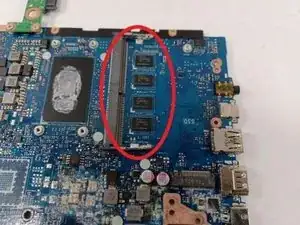

    • RAM is what is identified in picture. Unscrew the 0.8mm screw to remove it from socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
