ASUS ROG G46VW Screen Replacement

Geschrieben von: Ryan Riley
  • Kommentare: 1
ASUS ROG G46VW Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

30 Minuten

Einleitung

Pay attention to your device as you disassemble so that you can successfully reassemble later.

  1. 5DDfCTkbpAeeedqP

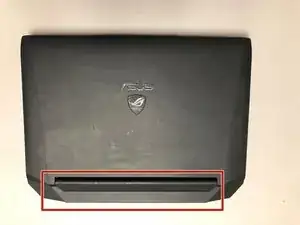

    • Gently pry the back hinge cover piece away from the device.

    You have to remove 3 screws from the bottom side first, two of them are phillips 0 under rubber pads and the third is torx in the middle.

    Jan Voběrek -

  2. PPEIRUH21KHqjhWZ

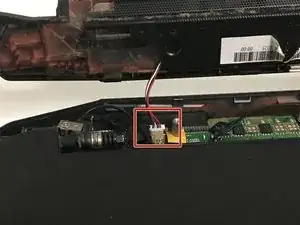

    • Disconnect the speaker cable from the motherboard.

  3. BPw3EsdNxrIcjhuG
    BPw3EsdNxrIcjhuG
    bsklJRrIEikt3YFS

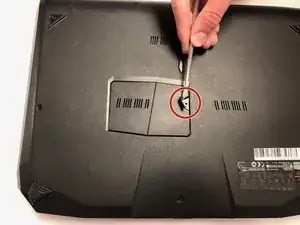

    • Lift the screw cover and remove the screw using a Phillips #0 screwdriver.

  4. ZWwdrEtJJosFZPBv

    • Remove the RAM cover by lifting the screw cover and pulling away firmly.

  5. p3HXLVvAWpU5SlfE
    p3HXLVvAWpU5SlfE
    eI11WhSJwbZyAh6t

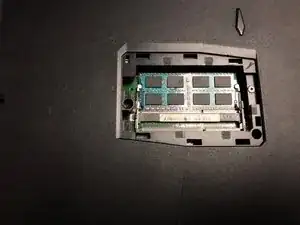

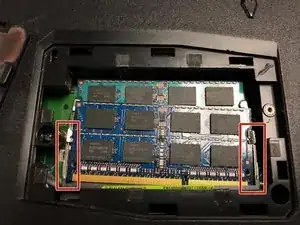

    • Push outwards on the clips to release the RAM stick. The stick should pop up at an angle.

  6. cocGx5Uje4BSuVho

    • Pull out the RAM stick carefully.

    • Do not use a prying motion as this will damage the hardware. Be careful not to damage the gold section of the RAM stick.

  7. 4ECmKnJQIF2nIMak

    • Repeat steps 3-4 to remove the second RAM stick.

  8. RHyNwMZXQFYiLDbl

    • Remove the two screws from underneath the RAM cover.

  9. k6ObjdybS634CWIE

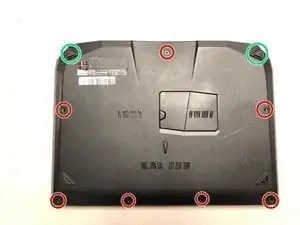

    • Remove all of the screws from the bottom of the case.

    • If replacing the screen, remove the rubber feet to reveal two more screws.

  10. VYDqdNMVn2nU2B2H

    • Turn the laptop over and remove the screws as shown

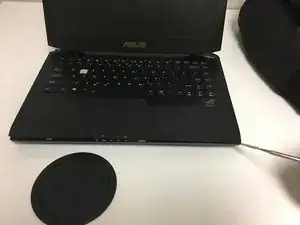

  11. Q5G1kSPJEPeAvEw4

    • Carefully pry the keyboard away using your spudger and the opening tools.

    • Be sure not to damage the clips holding the keyboard to the bottom case.

  12. 51CtUDAIONXVfrjQ
    51CtUDAIONXVfrjQ
    uk1ZYr4WtCNUkkee

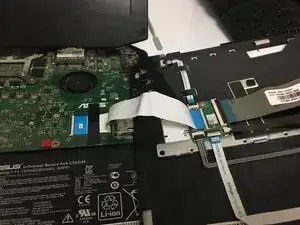

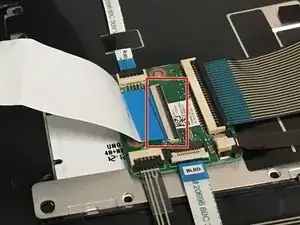

    • Detach the ribbon cable by releasing the clip

  13. JEvNWMomuQtEyVWl
    JEvNWMomuQtEyVWl
    NCaGIkWlKjVA1RtG

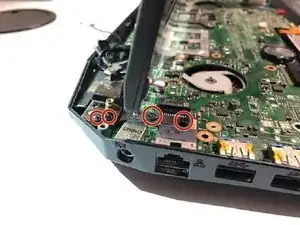

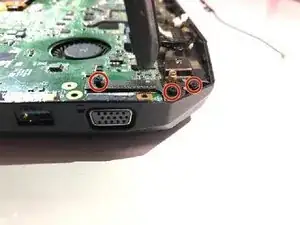

    • Remove screws from silver braces.

  14. XSfokihGbBON4PZD

    • Use tweezers to remove golden screw caps.

  15. GYDkvyM26oRkcmNe

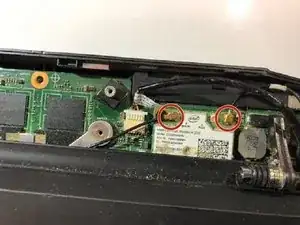

    • Remove tape and gently pull up on golden cap connectors to disconnect them.

  16. xM5QTJnCpMEhitAC

    • Gently pull the white connector until it comes loose.

Abschluss

To reassemble your device, follow these instructions in reverse order.
