ASUS ROG G750JW-RS72-CB Display Assembly Replacement

Geschrieben von: Sully Chen
  • Kommentare: 3
ASUS ROG G750JW-RS72-CB Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

20 - 30 Minuten

Einleitung

In this guide, we will replace the screen of the Asus ROG G750JW-RS72-CB.

  1. WRAvOkAFSRRq5bEA

    • Make sure you completely power down the computer before beginning this process.

    • With your finger, push this slide to the right. The battery should pop out of place.

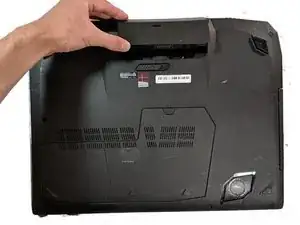

  2. oNNdnyrwMvyLDa6F

    • Pull the battery out of its place gently.

  3. tPAFYhGkB3IidMWj

    • Lift up the flap using a plastic opening tool.

    • Hold the flap back with your finger.

  4. u4NKZCDhGvxMYOo6

    • Unscrew the 5.2mm screw underneath the flap.

  5. mYRAKlRxRJi5UPAb
    mYRAKlRxRJi5UPAb
    EuEAqj3jGdcXOhf1

    • Once the screw is out, pull on the plastic tab to pull off the plastic cover.

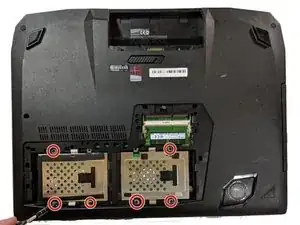

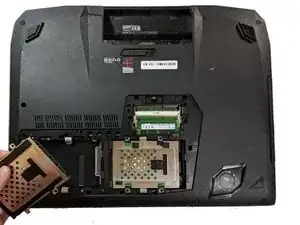

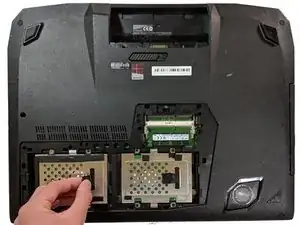

  6. hSQs1PtqATG3HREl
    hSQs1PtqATG3HREl
    QRDoQyKvpkG6mDB1
    ZMOH3yyXIULVZUL5

    • Unscrew the 5.2mm screws holding the hard drive in place.

    • Gently pull the rubber hard drive mount to the side.

    • Pull the drive out.

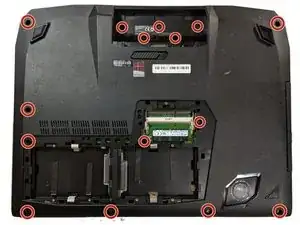

  7. KRYiYZRwwGD6kySl

    • Remove the 8.5mm screws holding the bottom half of the laptop together.

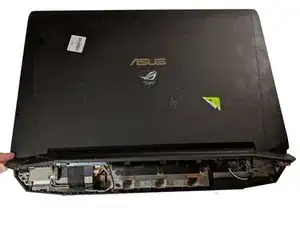

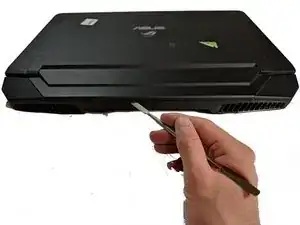

  8. dQRbnBD5VfAtV2SU
    dQRbnBD5VfAtV2SU
    k1C1iOofiF2VPweV

    • Take a metal separater and gently pry open the back end of the laptop halves.

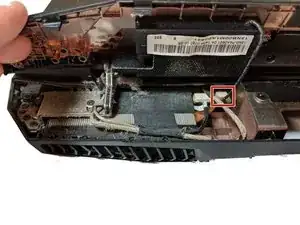

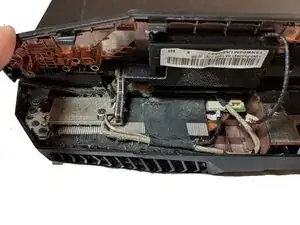

  9. jJOFlINLWxjlWRw1
    jJOFlINLWxjlWRw1
    GZs2oFokgHWPiH4R

    • Remove the connector connecting the screen and the motherboard

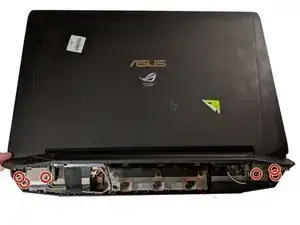

  10. vjKGf4ceubiucQ1G
    vjKGf4ceubiucQ1G
    EZJiNg1SZ2DRG6fi

    • Unscrew the 6.8mm screws holding the hinges of the screen to the bottom half of the computer.

    • Detach the screen from the hinges of the laptop.

    • Be careful not to damage the connecting wires when detaching the screen.

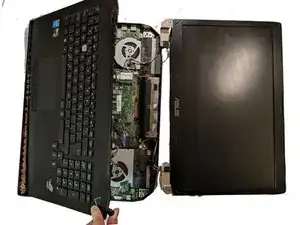

  11. SseSwYjQQooGesZA
    SseSwYjQQooGesZA
    yonpYFQLGL6A3T2E

    • Use a metal separator to carefully separate the bottom half of the laptop.

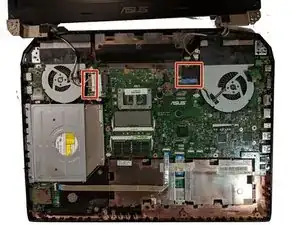

  12. X5ZnODfYlwc5LTkN

    • Gently unplug the cables connecting the screen to the motherboard.

    • The display assembly can now be freely separated.

    Question, so is it really needed to take out the hard drives (ssds) in order to replace the top cover? I understand the keyboard needs to come out thats why Im asking.

    adeeb -

    hi how are u, thx, question, if i want to only replace my top cover. do i have to take out the hard drives (ssdd), or can I leave them in, cause I do understand I need to remove the keyboard?

    adeeb -

Abschluss

To reassemble your device, follow these instructions in reverse order.
