Einleitung

RAM, or Random Access Memory is used by your computer to store frequently accessed or used information. Your computer then draws upon this storage when you perform an action that your computer recognizes as regular or normal. Having an insufficient amount of RAM can cause your computer to slow down. In this guide we will teach you how to disassemble your ASUS Transformer Book Flip TP500LA and to locate and remove your computer's RAM chip.

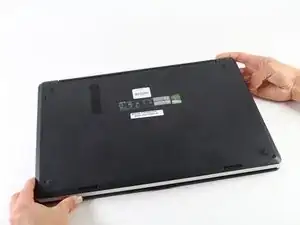

  1. 3FUMFN2BN5NSUtsp
    3FUMFN2BN5NSUtsp
    cWtnTAsgXmDLi1Eg
    ib5aexrDnJAiMewb

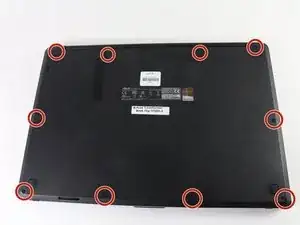

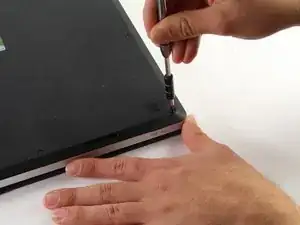

    • Remove the ten 10 mm Phillips #0 screws found on the computer's back case.

  2. ORrXfcdimQvdrG52
    ORrXfcdimQvdrG52
    4KxxXqTD1thjjM3E

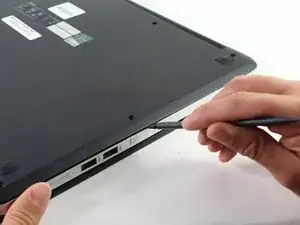

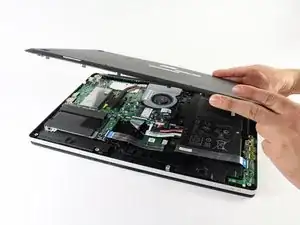

    • 'Slide a heavy-duty spudger in between the back case and the computer.

    • Slowly work around the edges to undo the clips to fully separate the back case from the computer.

    • Gently lift off the back case.

  3. 2fPk4ni2WCYOr51E
    2fPk4ni2WCYOr51E
    HDp3GiICUHuaUTaU

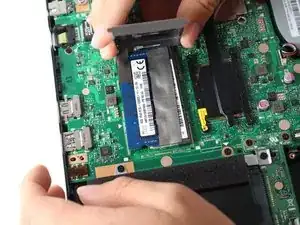

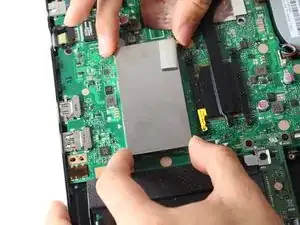

    • Grasp the edges of the RAM case with your fingers.

    • Slowly lift the case upwards to remove the RAM case.

  4. DKX6wloyual41sr1
    DKX6wloyual41sr1
    mpggLNCOLaVQMtOM
    mQRTNXHhf3JDunqh

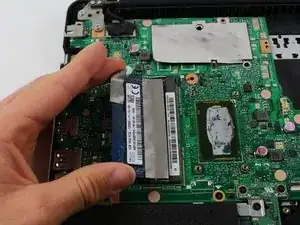

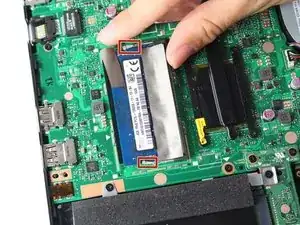

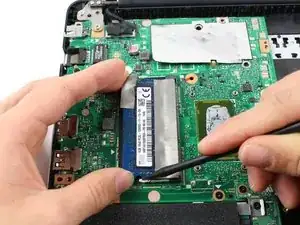

    • Loosen the RAM's fastener clips by lifting one of the clips as you grasp the RAM card.

    • Carefully lift it away from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
