ASUS Transformer TF101 Battery Replacement

Geschrieben von: Sandy Babich
  • Kommentare: 9
ASUS Transformer TF101 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

20 - 30 Minuten

Einleitung

If your battery no longer holds a charge or you suspect it might be faulty, use this guide to replace it.

  1. huhern2sOPEGdkuG
    huhern2sOPEGdkuG
    l4Vh4UmSBDb6L4NE

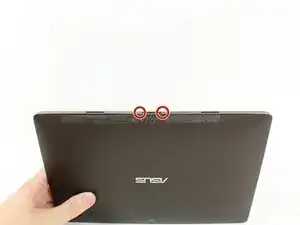

    • Use T5 Torx Screwdriver to remove two 4.5 millimeter T5 screws on either side of the port on the bottom of the tablet.

    If you have a device with SIM card slot, remove SIM card first.

    Hans-Josef Hoffmann -

  2. akIPEmUwVK6DHRHl
    akIPEmUwVK6DHRHl
    NWFIirXbtoyl4vFn
    oPsftIREKjjmT4hR

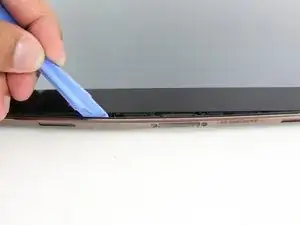

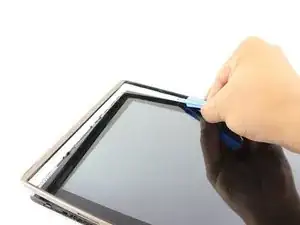

    • Use the Plastic Opening Tool to pry between the main tablet body and the outer rim casing. Remove the outer rim casing by prying all the way around the device and pulling the rim upward.

    • The physical buttons are located on the outside of the rim on the right side, proceed with the guide to locate internal buttons.

  3. XkD1ItQaWHxvTW12

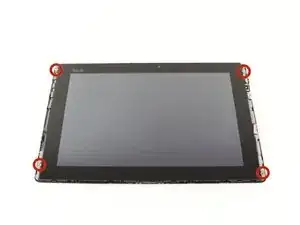

    • Remove the four 2 millimeter Phillips #00 screws at the corners of the tablet.

  4. qDTKMHfY2KICN1Pr

    • Use a Phillips #00 Screwdriver to remove the three 3 millimeter screws securing the front panel to the back panel found above the camera area, on the top portion of the tablet.

  5. kZsEXBCYUW1NkeLK

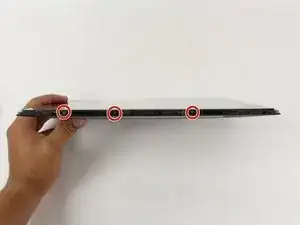

    • Use a Phillips #00 Screwdriver to remove the three 3 millimeter screws securing the front panel to the back panel found on the bottom portion of the tablet near the port.

  6. AOPZbHXhPfU3fche
    AOPZbHXhPfU3fche
    ra6NEVWkVq2kvacn

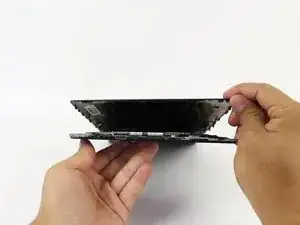

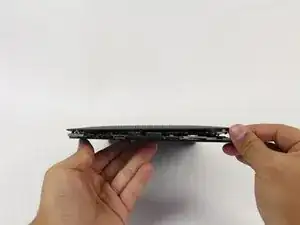

    • Remove back panel by pulling away from the remaining device.

  7. WPehUyNpxVrAmjLF
    WPehUyNpxVrAmjLF
    YUgkfN5E26xQKTxd

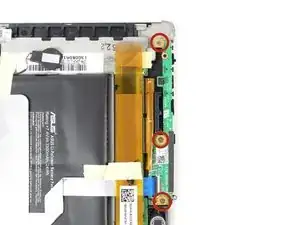

    • Use a Phillips #00 Screwdriver to remove the three 3 millimeter screws securing the buttons to the back panel.

  8. jjDpurC1UVUTAXme
    jjDpurC1UVUTAXme
    Euq1w4OWW1Xc13M2
    jvYe5K3x53BGGoOU

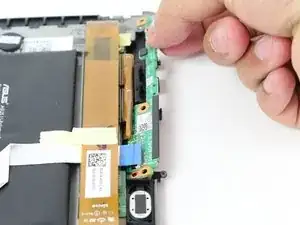

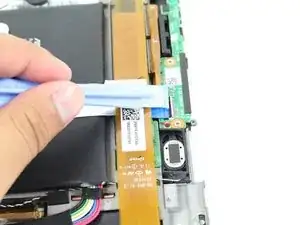

    • Use Plastic Opening Tool to pry off the clip located towards the bottom of the button component near the metallic strip with a blue end, capped by the black button clip.

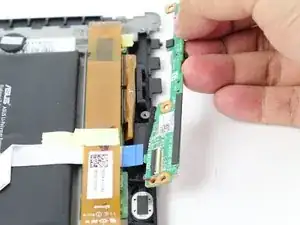

    • Remove button component by pulling straight outward from the device.

  9. cMXSIFd4RxErE1Wf

    • Use Phillips #00 Screwdriver to remove four 3 millimeter screws found on the metal panel.

    TF101G has a flex print, probably the GSM antenna, glued on top of the metal panel. It is connected to a printed circuit board with a connector similar to that in step 8.

    Hans-Josef Hoffmann -

  10. LKtNaMFS3RDncIJV

    • Metal panel is glued to the battery. Remove with care.

    • Use Plastic Opening Tool to pry off the metal panel from the battery starting on the right side corners and working around the rest of the panel.

  11. ZnrXCAIQIPvnJ5eb

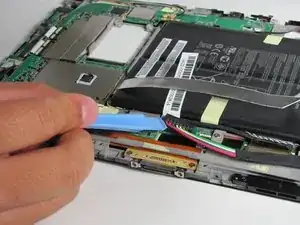

    • Do NOT pry the battery connector upward as shown in this photo. Instead, pull the connector straight out (in the direction of the wires).

  12. snD4cL6mrtCRWXmY
    snD4cL6mrtCRWXmY
    NMA2A21ecWqU2yCg
    xabyI1CWrqUycshS

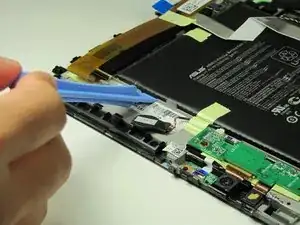

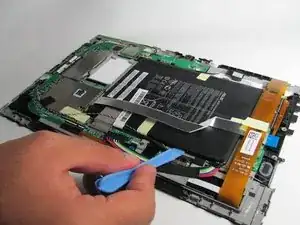

    • Battery is glued to device. Remove with care.

    • Peel off tape from around the edges of the battery.

    • Insert Plastic Opening Tool into slot on side of battery found near the wire bundle.

    • Lift up the battery off of the device.

    e’ possibile avere le informazioni in italiano? Grazie

    Paolo Panacea -

Abschluss

To reassemble your device, follow these instructions in reverse order.
