In this guide, the user will be able to follow step-by-step instructions for replacing the motherboard in his or her ASUS U46E-RAL7 Laptop.

  1. eVZAlquHEjJEN3go
    • Remove two (2) 9mm x 4mm screws from the back panel with the size 0 Phillips head screwdriver.

    • Remove two (2) 7mm x 4mm screws from the back panel with the size 0 Phillips head screwdriver.

    • Remove six (6) 7mm x 4mm screws with the size 0 Phillips head screwdriver.

    • Remove three (3) 3mm x 3mm screws with the size 0 Phillips head screwdriver.

    • Remove one (1) 4mm x 4mm screws with the size 0 Phillips head screwdriver.

  2. MTX6LvuLWUb46i1N
    MTX6LvuLWUb46i1N
    IHSBJUIc2IQMQ5E4
    • Remove the rubber caps (4) with the tweezers. If the rubber caps are not removed easily, pull gently. The caps are glued down.

    • Remove four (4) 7mm x 4mm screws with the size 0 Phillips head screwdriver.

  3. mHCRXEwi2Z5CPaxE
    mHCRXEwi2Z5CPaxE
    JBULBdIVaXQCjbuD
    OouIMMO1U6KkFVIm
    • Remove the L shaped panel with the plastic opening tool by inserting it into the indent along the USB port side of the laptop.

    • Push down gently on the plastic opening tool until part of the panel pops up.

    • Use your fingers to pop the panel off.

  4. 2kTMgKlfxN63cEu3
    • Remove three (3) 5mm x 4mm screws with the size 0 Phillips head screwdriver.

    • Remove one (1) 4mm x 4mm (closest to the battery) screw with the size 0 Phillips head screwdriver.

  5. 2c164yI1QOpa4hIY
    2c164yI1QOpa4hIY
    nF6NTgAOOsPjxxOM
    QwdBD2uKBKKhjpLp
    • Remove the CD ROM drive by inserting the plastic opening tool between the drive and the laptop's side.

    • Push down gently to eject the drive.

    • Pull the drive straight out to remove the part from the laptop.

  6. OJn5AYUNWapbYOXa
    • Remove three (3) 3mm x 3mm screws with the size 0 Phillips head screwdriver.

  7. go4vGjdVrVLxmEWG
    go4vGjdVrVLxmEWG
    nu4oxBF5bUlyhIF6
    aEw2wJm5ICuPnWXF
    • Flip the device so that the laptop will open away from you to remove the hinge cover behind the screen.

    • Place index fingers underneath the hinge cover and gently pull up.

    • The cover will pop off easily with a click.

    • Remove five (5) 5mm x 4mm screws from the hinge compartments of the device with the size 0 phillips head screwdriver.

  8. evTbkglSQfKBjOOO
    evTbkglSQfKBjOOO
    ZHVBXdYYEsTYTLQL
    ZNfwIlXRZICDseZa
    • Open the screen.

    • Carefully lift the keyboard panel. The keyboard will be attached to the motherboard by two ribbons.

    • To disconnect the ribbons, use your fingernails to push down gently on the protruding plastic at the base of the connector. There is a soft click and ribbon releases. Repeat for the other ribbon.

  9. IBofpXE2cYTof2Jq
    IBofpXE2cYTof2Jq
    iTk1Y1VHZWfelOZF
    • Remove the keyboard from the computer to reveal the motherboard.

  10. SP1ROWBgb5vlwwbU
    • Remove four (4) 7mm x 4mm screws with size 0 phillips head screwdriver.

    • Remove thirteen (13) 5mm x 4mm screws with size 0 phillips head screwdriver.

  11. fWnx1tah6UXyNwhF
    • Disconnect ribbon from bottom left corner of motherboard.

    • Use your fingernails to push down gently on the protruding plastic at the base of the connector. There is a soft click and the ribbon releases.

  12. nPohppkO6GQMaRmc
    nPohppkO6GQMaRmc
    tHGaSa6DIx2uuROJ

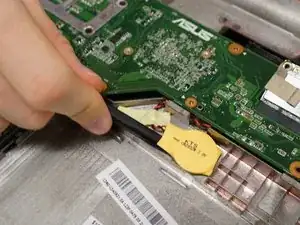

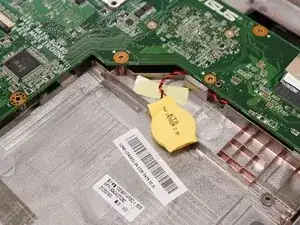

    • Disconnect one (1) white/red/black connector wire by prying it up with the spudger.

  13. T5rUglf4IthCQqlG

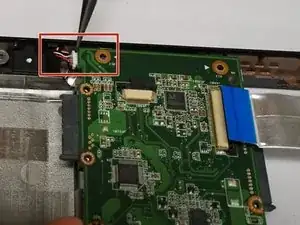

    • Disconnect one (1) red/black connector wires by prying them out with the nylon spudger.

  14. gWOcG6ftVUQF3j3w
    gWOcG6ftVUQF3j3w
    xTjF5AHhnLqXKRgB
    XwB33vsiU6DOHSOR

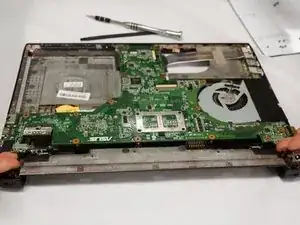

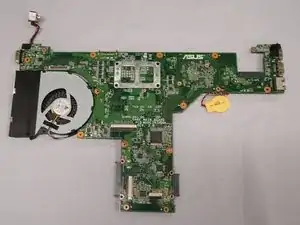

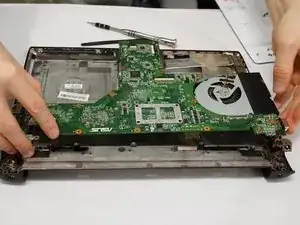

    • Insert index fingers underneath the motherboard in the top corners of the motherboard. Slowly move your fingers toward the center of the board while lifting up gently. The motherboard will lift easily from the device casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
