ASUS U46E-RAL7 RAM Replacement

Geschrieben von: Connor
  • Kommentare: 0
ASUS U46E-RAL7 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

4 Minuten

Einleitung

In this guide, the user will be able to follow step-by-step instructions for replacing the RAM in his or her ASUS U46E-RAL7 Laptop.

  1. UyAoWhS3iAJd52rB
    UyAoWhS3iAJd52rB
    HVRPPFJB54FKmog3
    Ei5aKlLlhrNBBpcP

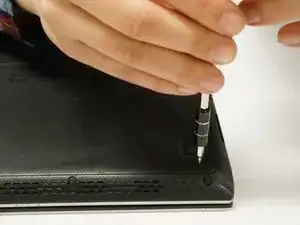

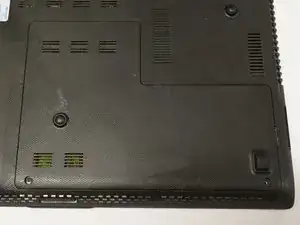

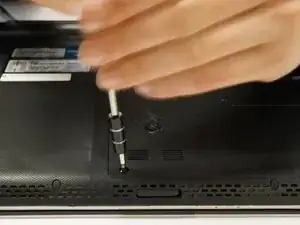

    • Using a size 0 Phillips screwdriver, remove two (2) 5mm screws from the L shaped back panel.

  2. FHOab5xVvjOCLcDa
    FHOab5xVvjOCLcDa
    fO5SgLrgaWU5SKsb
    wQDndZ3utjWYrZjU

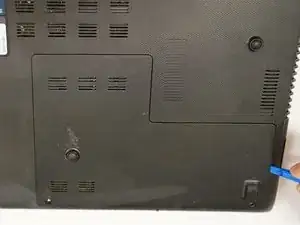

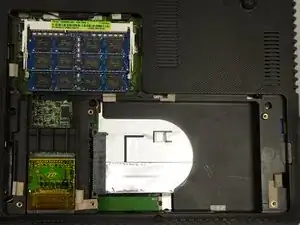

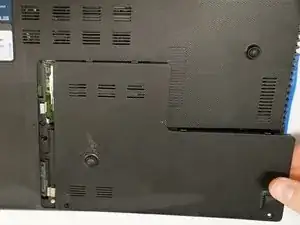

    • Using a plastic opening tool, pop off the L shaped panel.

  3. PXBZDZSGoK1oCY4d
    PXBZDZSGoK1oCY4d
    uebhHd2IGMVyHJZg

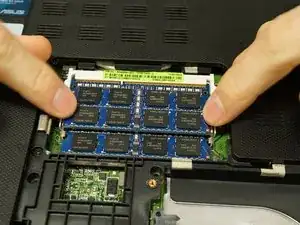

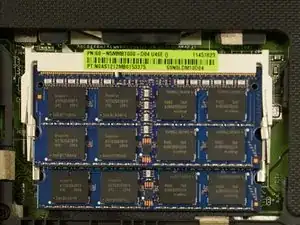

    • Place both index fingers on the metal bars on the edge of the ram.

    • Press down gently until the RAM pops up.

  4. Z2SAJfEdGMNlFPZT

    • Pull the RAM stick out of the socket.

  5. 6aLPKDeSFf6eYGlt
    6aLPKDeSFf6eYGlt
    lcAniv32Du1i5ikk

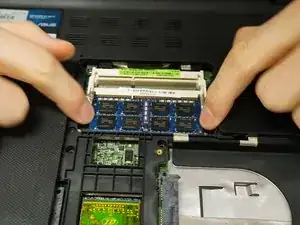

    • Repeat steps 1-4 for the second stick of RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
