Einleitung

In this guide, the user will be able to follow step-by-step instructions for replacing the screen in his or her ASUS U46E-RAL7 Laptop.

  1. eVZAlquHEjJEN3go
    • Remove two (2) 9mm x 4mm screws from the back panel with the size 0 Phillips head screwdriver.

    • Remove two (2) 7mm x 4mm screws from the back panel with the size 0 Phillips head screwdriver.

    • Remove six (6) 7mm x 4mm screws with the size 0 Phillips head screwdriver.

    • Remove three (3) 3mm x 3mm screws with the size 0 Phillips head screwdriver.

    • Remove one (1) 4mm x 4mm screws with the size 0 Phillips head screwdriver.

  2. MTX6LvuLWUb46i1N
    MTX6LvuLWUb46i1N
    IHSBJUIc2IQMQ5E4
    • Remove the rubber caps (4) with the tweezers. If the rubber caps are not removed easily, pull gently. The caps are glued down.

    • Remove four (4) 7mm x 4mm screws with the size 0 Phillips head screwdriver.

  3. mHCRXEwi2Z5CPaxE
    mHCRXEwi2Z5CPaxE
    JBULBdIVaXQCjbuD
    OouIMMO1U6KkFVIm
    • Remove the L shaped panel with the plastic opening tool by inserting it into the indent along the USB port side of the laptop.

    • Push down gently on the plastic opening tool until part of the panel pops up.

    • Use your fingers to pop the panel off.

  4. 2kTMgKlfxN63cEu3
    • Remove three (3) 5mm x 4mm screws with the size 0 Phillips head screwdriver.

    • Remove one (1) 4mm x 4mm (closest to the battery) screw with the size 0 Phillips head screwdriver.

  5. 2c164yI1QOpa4hIY
    2c164yI1QOpa4hIY
    nF6NTgAOOsPjxxOM
    QwdBD2uKBKKhjpLp
    • Remove the CD ROM drive by inserting the plastic opening tool between the drive and the laptop's side.

    • Push down gently to eject the drive.

    • Pull the drive straight out to remove the part from the laptop.

  6. OJn5AYUNWapbYOXa
    • Remove three (3) 3mm x 3mm screws with the size 0 Phillips head screwdriver.

  7. go4vGjdVrVLxmEWG
    go4vGjdVrVLxmEWG
    nu4oxBF5bUlyhIF6
    aEw2wJm5ICuPnWXF
    • Flip the device so that the laptop will open away from you to remove the hinge cover behind the screen.

    • Place index fingers underneath the hinge cover and gently pull up.

    • The cover will pop off easily with a click.

    • Remove five (5) 5mm x 4mm screws from the hinge compartments of the device with the size 0 phillips head screwdriver.

  8. evTbkglSQfKBjOOO
    evTbkglSQfKBjOOO
    ZHVBXdYYEsTYTLQL
    ZNfwIlXRZICDseZa
    • Open the screen.

    • Carefully lift the keyboard panel. The keyboard will be attached to the motherboard by two ribbons.

    • To disconnect the ribbons, use your fingernails to push down gently on the protruding plastic at the base of the connector. There is a soft click and ribbon releases. Repeat for the other ribbon.

  9. IBofpXE2cYTof2Jq
    IBofpXE2cYTof2Jq
    iTk1Y1VHZWfelOZF
    • Remove the keyboard from the computer to reveal the motherboard.

  10. nHgpansELKnbalCK
    nHgpansELKnbalCK
    oUSXCcIjKNYXYZrH
    EbbmfcB1e6FZRVhD

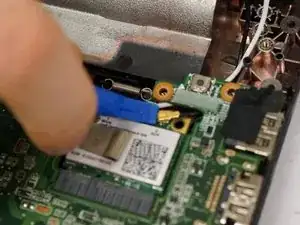

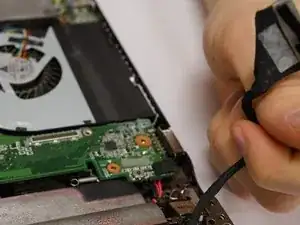

    • Use the straight tweezers to disconnect the wires attaching the screen to the main computer by pulling up gently. The computer screen should be open and away from you.

  11. FXI3GATub5uNUPFY
    FXI3GATub5uNUPFY
    nJxdTLrHExcwrKUT
    pLLGHOWAXSadWQjb

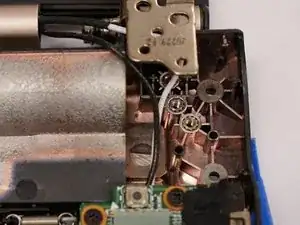

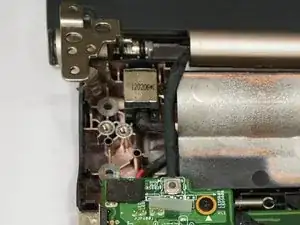

    • Remove two (2) 5mm x 4mm screws from the upper right hand corner of the motherboard with the size 0 Phillips screwdriver.

  12. aatOyPotUZQknDNP
    aatOyPotUZQknDNP
    lPFiVCSQhjcmiw6D
    LdktBa2P3vSw3xhA

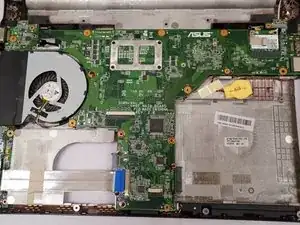

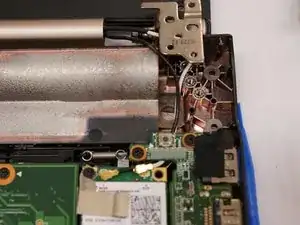

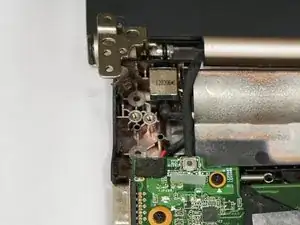

    • Remove one (1) 5mm x 4mm screw from the upper left hand corner of the motherboard with the size 0 Phillips screwdriver.

  13. 6jSbNNFMKNXgKHte

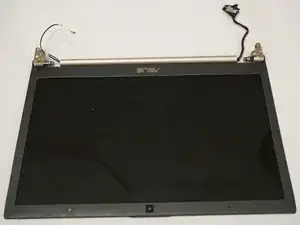

    • Lift up the corner of the motherboard on both sides and disconnect the wires connecting the screen by pulling gently.

  14. GMOd4aWUGtxpZDIh
    GMOd4aWUGtxpZDIh
    HEapBkjpEgALFlmF
    vbi1FwLPMnuytTWq

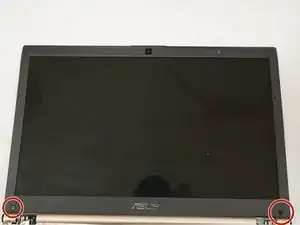

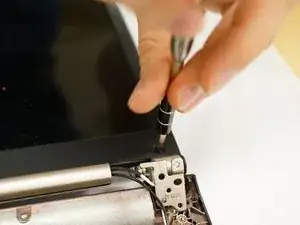

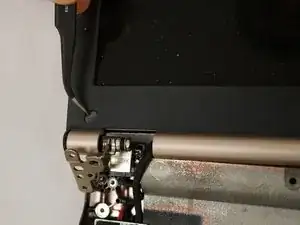

    • Use tweezers to remove both plastic screw cover.

    • Remove two (2) 5mm x 4mm screws with the size 0 Phillips screwdriver.

  15. 2C3BKqKaaBNciByY
    2C3BKqKaaBNciByY
    LCKLHfajCnpFYOml
    pBiiHLI5KRgExQOV

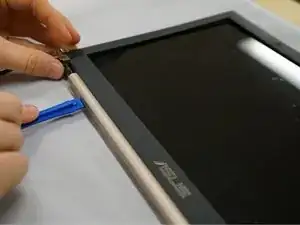

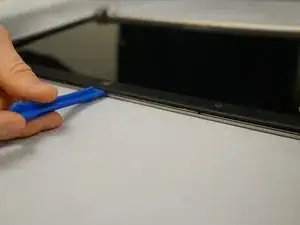

    • With the hinges facing towards you, use the plastic opening tool to pry up next to the hinges and work all the way around the screen.

    • The casing will be difficult to separate. The clips secure the casing together and may break as you remove the casing.

  16. SpZi5KRoSLCQxRVX
    SpZi5KRoSLCQxRVX
    CYDQQtfPWM4QSiJB
    Un6yyjWePR3LhWVs

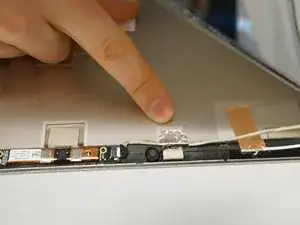

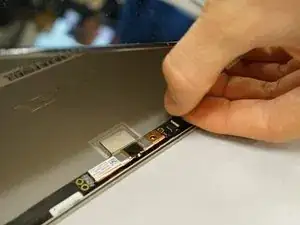

    • Remove the 4 pin connecter from behind the screen.

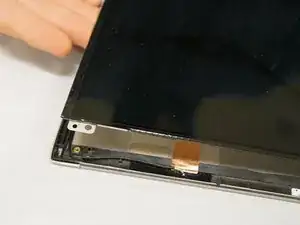

    • Lift up the LCD screen. Remove and pull away the tape as you lift the screen out. Screen will pull away easily once the tape is removed.

  17. 6qQRZAp5av2X2dxW

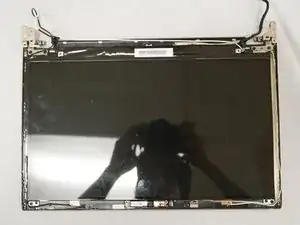

    • Lift the screen away from the back holder.

Abschluss

To reassemble your device, follow these instructions in reverse order.
