Use this guide to replace your camera assembly that holds the webcam. This is a fairly easy replacement just keep in mind parts of the computer are fragile.
Werkzeuge
-
-
Scrape off the black circle rubber cushions with your index finger at the bottom frame of the screen.
-

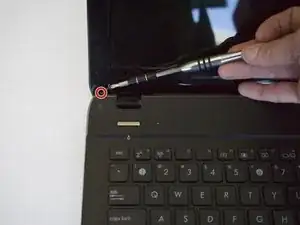

Unscrew the two 3mm Phillips screws on the bottom of the frame with the J1 screwdriver.
-
-
-

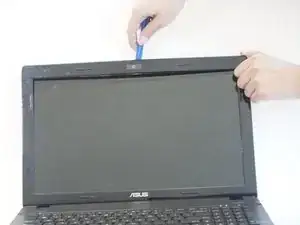

Insert the plastic opening tool into the crack where the plastic of the screen's frame meets the shell at the top.
-
Gently twist and slide the tool to open it. The plastic will snap as the frame is released.
-

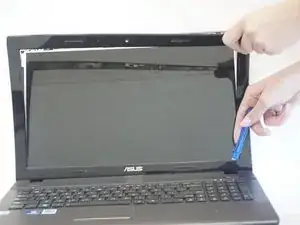

Continue to pry with the opening tool or use your fingers until the top portion of the frame releases.
-
-
-

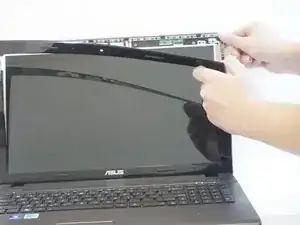

Pull the screen frame towards you so that the seam between the frame and the bottom of the screen is opened.
-

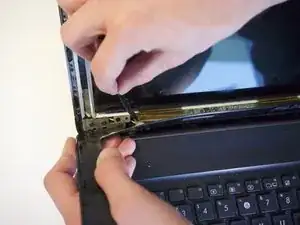

Insert the opening tool into the seam.
-
Peel the metallic strip with your finger and thumb until it's fully off.
-
Place the remaining frame down on the keyboard.
-
-
-

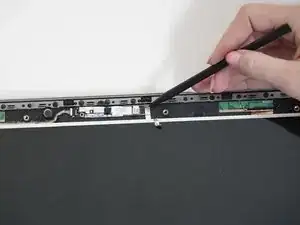

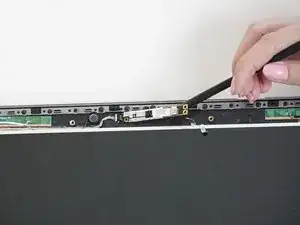

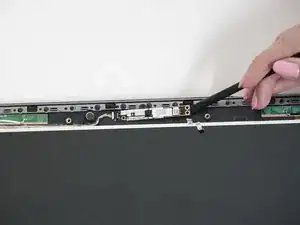

Use the pointed side of the black spudger to remove the metallic stickers by the circuit board of the camera above the screen.
-
-
-

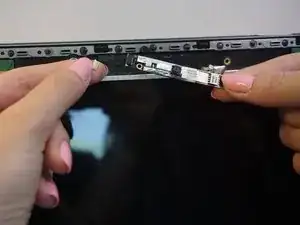

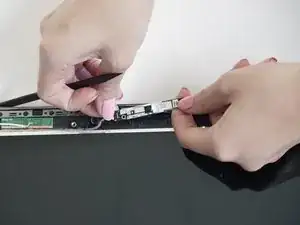

Holding the camera's circuit board with your right hand, use your left index finger and thumb to unplug the micro white hook from the camera.
-
To reassemble your device, follow these instructions in reverse order.
