ASUS U52F-BBG6 Keyboard Replacement

Geschrieben von: Ashley DeHuff
  • Kommentare: 2
ASUS U52F-BBG6 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

You can now move on to replacing your keyboard assembly, keep in mind it will take a lot of effort when removing the back panel.

  1. 4wVd4Uot4FbVQ23d
    4wVd4Uot4FbVQ23d
    gujXWDxsygEoEbSp

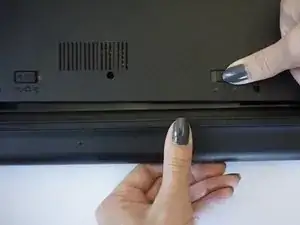

    • Flip the laptop over to the back.

    • Slide the right latch to unlock, then simultaneously slide the left latch outward while pulling the battery out.

  2. nUk3LRP2YNPxLZeK
    nUk3LRP2YNPxLZeK
    KlvcJfxDNOCkxytx
    Bh2AJXaxFSgu2rGN

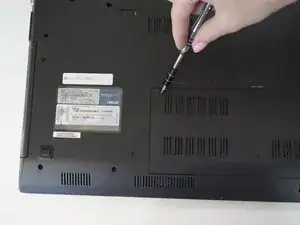

    • Unscrew all twelve 3mm Phillips screws with the J1 screwdriver.

    • Unscrew two 3mm Phillips screws on the black panel using the PH0 screwdriver.

    • Lift the black panel upward by inserting your fingernail in the space provided.

  3. pGX3rpEOvnKeNtpy
    pGX3rpEOvnKeNtpy
    yDZLODuZtm51UDWe
    iupFCNCBCfsoV2Wy

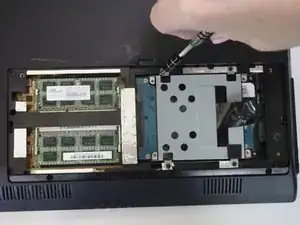

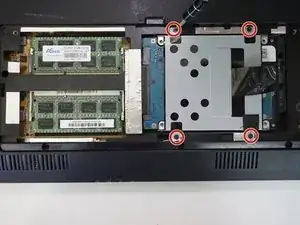

    • In the RAM and hard drive compartment, unscrew the four 3mm Phillips screws using the J1 screwdriver.

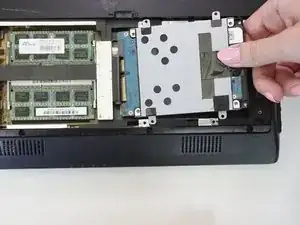

    • Gently pull out the hard drive.

  4. jx1YFn1VrADLTRMW
    jx1YFn1VrADLTRMW
    6KTPvwJTPWn2UPNn

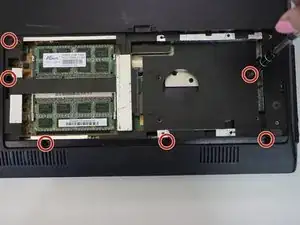

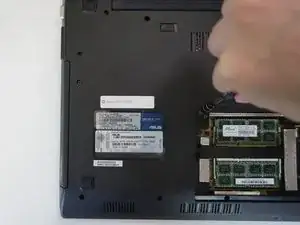

    • Unscrew six 3mm Phillips screws in the RAM and hard drive compartment with the J1 screwdriver.

  5. eUHGXPpfpfylavIB

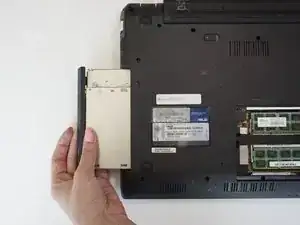

    • Pull the CD drive outward with your left hand.

  6. R5rFeEjWVdBLEGQl
    R5rFeEjWVdBLEGQl
    hxLi1IqSCKQDIy5O

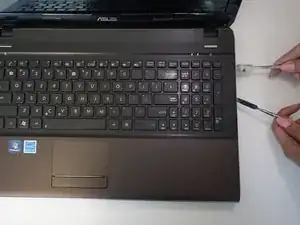

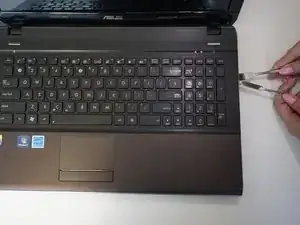

    • Insert and gently twist the flat metal spudger between the keyboard assembly and the bottom plastic cover so that a small seam is opened.

    • Put in the metal spudger in the seam to hold its place while twisting and levering the flat metal spudger along the whole keyboard.

    • Be careful not to hit any of the internals with the metal spudger. The regular black nylon spudger should be used whenever possible, especially around batteries or sensitive internal components.

    • You will need add a lot of pressure to open the laptop. Expect to hear snaps as the clips holding the two pieces are released.

    • Slowly pry off the back

  7. JuCphB3eVQLf4byA
    JuCphB3eVQLf4byA
    YdnQbVa4ajlIE1ny

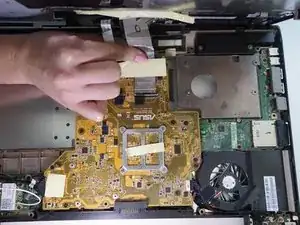

    • Unlatch the clip attaching the white flattened flexible cord with a blue tip to the circuit board with your thumb.

    • Pull out the white flattened cord.

  8. jYSElovVjuWfoXUW

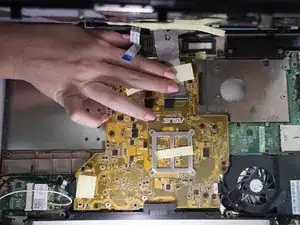

    • Pull back yellow tape attaching the metal colored flexible flattened cord to the circuit board.

    • Lift up the latch at the end of the cord.

    • Pull out the cord to release the keyboard.
