ASUS U52F-BBG6 Random Access Memory (RAM) Replacement

Geschrieben von: Ashley DeHuff
  • Kommentare: 0
ASUS U52F-BBG6 Random Access Memory (RAM) Replacement

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

Keine Schätzung

Einleitung

This guide will help you replace or upgrade your random access memory. This replacement will be very easy and will only require you to remove some screws.

  1. KaECada2qHWPOvMy
    KaECada2qHWPOvMy
    gkYYQ2iXYWfBTMCe

    • Unscrew the two 3mm Phillips screws with the PH0 screwdriver.

    • Unhook the back panel by inserting your fingernail in the slot provided.

    • Lift the panel upward.

  2. vbF1QY5TgdCxMFcA
    vbF1QY5TgdCxMFcA
    5psQNbwBf4HXuqFR

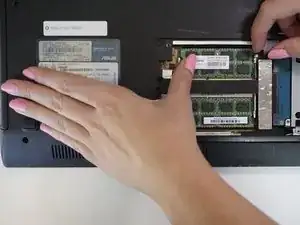

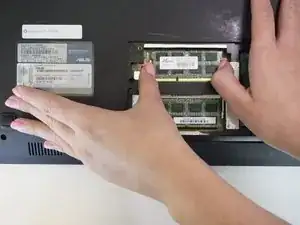

    • Use both hands to pull the gold prongs outward.

    • Be careful not to get pinched as the RAM will spring upwards when released.

    • Lift the RAM out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
