Use this guide to replace your Wi-Fi chip. Keep in mind it will take a lot of effort when removing the back panel.
Werkzeuge
-
-
Flip the laptop over to the back.
-
Slide the right latch to unlock, then simultaneously slide the left latch outward while pulling the battery out.
-
-
-
Unscrew all twelve 3mm Phillips screws with the J1 screwdriver.
-
Unscrew two 3mm Phillips screws on the black panel using the PH0 screwdriver.
-
Lift the black panel upward by inserting your fingernail in the space provided.
-
-
-
In the RAM and hard drive compartment, unscrew the four 3mm Phillips screws using the J1 screwdriver.
-
Gently pull out the hard drive.
-
-
-
Unscrew six 3mm Phillips screws in the RAM and hard drive compartment with the J1 screwdriver.
-
-
-
Insert and gently twist the flat metal spudger between the keyboard assembly and the bottom plastic cover so that a small seam is opened.
-
Put in the metal spudger in the seam to hold its place while twisting and levering the flat metal spudger along the whole keyboard.
-
Slowly pry off the back
-
-
-
Unlatch the clip attaching the white flattened flexible cord with a blue tip to the circuit board with your thumb.
-
Pull out the white flattened cord.
-
-
-
Pull back yellow tape attaching the metal colored flexible flattened cord to the circuit board.
-
Lift up the latch at the end of the cord.
-
Pull out the cord to release the keyboard.
-
-
-

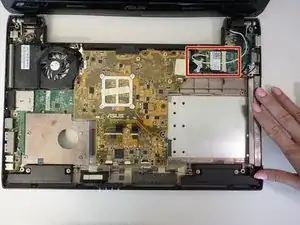

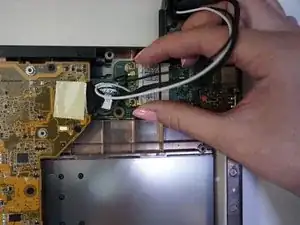

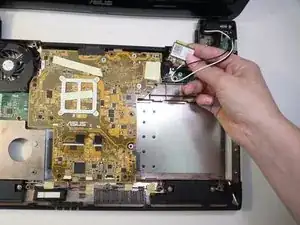

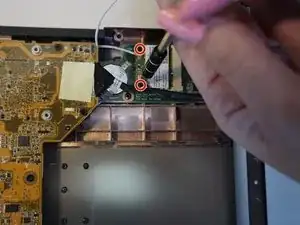

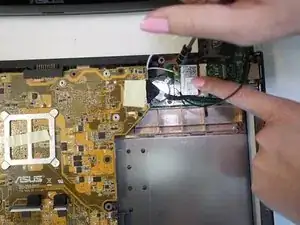

Find the Wi-Fi chip circuit board, which has a white sticker on it and is connected to a black and white wire.
-
To reassemble your device, follow these instructions in reverse order.
