Einleitung

If your laptop does not start (e.g., the power button light turns on, but the screen remains black), there might be a problem with your motherboard. The following guide will help you to replace the motherboard.

  1. qIaJXUKBgsLVUETG
    • Make sure the laptop is completely shut down to avoid data complications.

    • Hold the left lock switch towards the left to the unlock option.

  2. NuEhq5OpIYVGgmRK
    • Toggle the right lock switch to the unlock option.

  3. wMMPOTMVH6WtY2Jt
    • Gently slide the battery out while still holding the left unlock switch.

  4. uiC25ajcCxu2fNUm
    uiC25ajcCxu2fNUm
    wCQSSP2IPiAJKjSM
    • Remove the two 2 mm Phillips head screws on each side on the bottom using PH00 screw driver.

    • Remove the one 2 mm screw underneath the black cover in the middle using the same screw driver.

  5. xabCQS6HCkgITSj1
    • Remove the RAM by lifting up with your fingers and sliding it out towards you.

  6. t12fCE3f1rxuS1UY
    • Remove the three 2 mm Phillips head screws on the hard drive using PH00 screw driver.

    • Remove the remaining seven 1.8 mm Phillips head screws using the same screw driver.

  7. WZnTEKalDmrTwfRk
    WZnTEKalDmrTwfRk
    o43DyGLLCRuwEdHT
    • Remove the hard drive by sliding it to the left and lifting up.

  8. 2buaAjPhpkT6Xf6T
    2buaAjPhpkT6Xf6T
    suBmURdU4OoDbRTA
    • Remove the six 2 mm Phillips head screws on the top edge of the laptop using PH00 screw driver.

    • Flip the laptop right-side up and open the screen.

  9. yhOdwKEmgTPDhvYt
    yhOdwKEmgTPDhvYt
    6KOxUwLIsZamSpOQ
    Z1Bvr2S5YyELc3rG
    • Starting in a corner of the keyboard, pry the keyboard from the laptop using a plastic opening tool.

    • Remove the ribbon cable on the bottom of the keyboard by lifting up on the tape and pulling up.

    • The front panel is now loose from the laptop.

  10. aF3goIVABuFNRNjB
    • Slide the optical drive out. It should easily come out.

    What kind of connection links the dvd with the laptop? sata? Something else?

    Thomas Seiffert -

  11. KFN2HLCXlfS1j3pR

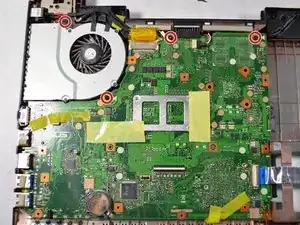

    • Remove the four 2 mm Phillips head screws from the top of the motherboard and fan using PH #1 screwdriver.

  12. GQMJd6Sjfy2G13SR
    GQMJd6Sjfy2G13SR
    PyhLKV1vKMQDwTUv
    • Remove the blue cable on the bottom right by lifting up on the tab and pulling the cable out.

  13. HqqGSvQlCYUSRPNR
    HqqGSvQlCYUSRPNR
    UP1yClgbWC2cmnSD
    vpDnMcvuomp1HFXd

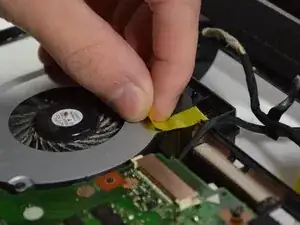

    • Peel off the black and yellow tape attaching the fan to the base.

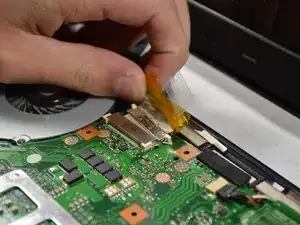

    • Peel the tape off the yellow cable and pull out to remove the cable.

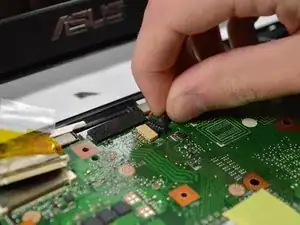

    • Remove the small black, white and red cable next to the yellow cable at the top.

  14. LVHcpVZDSToS1g4P

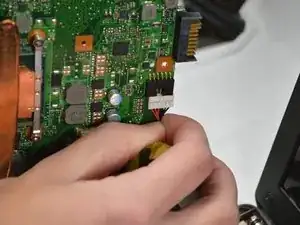

    • Carefully and slowly lift up the motherboard from the base and remove the red and black cable underneath the motherboard in the top left corner near the fan.

    • The motherboard and fan are still attached to each other, but are loose from the base.

  15. yMQuP1KfKXNXpZqp

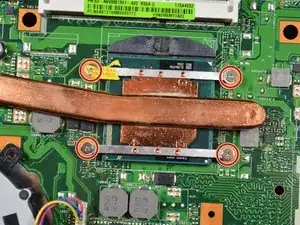

    • Remove the four 2 mm Phillips head screws surrounding the copper rod using PH1 screw driver.

  16. wnycUgrhGb6K1RZJ

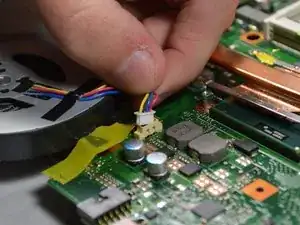

    • Remove the red, blue, black and yellow cable attaching the fan and motherboard together with your fingers.

    • Now the motherboard and fan are completely separate from each other.

Abschluss

To reassemble your device, follow these instructions in reverse order.
