ASUS UX50V-RX05 Keyboard Replacement

Geschrieben von: James
  • Kommentare: 0
ASUS UX50V-RX05 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

2 Minuten

Einleitung

This is how you remove the keyboard on an Asus UX50V-RX05 Laptop.

  1. CYM2PjoHhARgEKfr

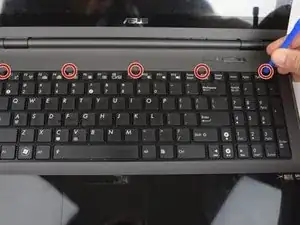

    CYM2PjoHhARgEKfr

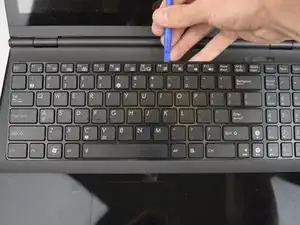

    DDyvQwLB3G3HoVDR

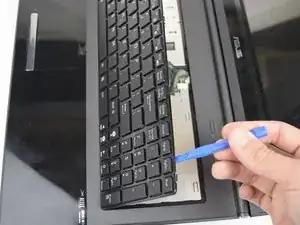

    uhB11uEbGtSQlh6J

    • Make sure the device is powered off and the battery is removed before beginning.

    • Use the Plastic Opening tool to pry the five slots up at the top of the keyboard.

  2. sBqO2MQuPJMKY4XH

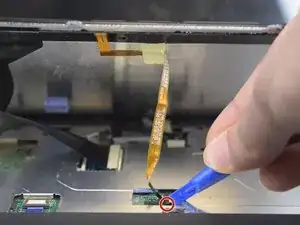

    sBqO2MQuPJMKY4XH

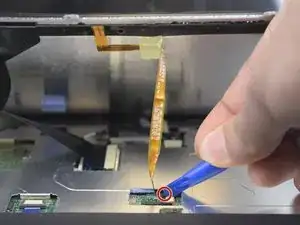

    D6Rv2PgDrfAFnV3Z

    • Lift the keyboard enough to expose the two ribbon connectors (LCD flex cable and flex band).

    • Use the Plastic Opening tool to push open the two black clips on each side of the connecting cords.

    • Remove the cable after pushing out the two black clips.

  3. kSruvVbYBORTJdOp
    kSruvVbYBORTJdOp

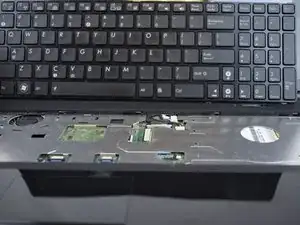

    CGVnBsaatSXZJlZ4

    • Push out each end of the black clip with a plastic opening tool or nylon spudger to remove the ribbon cable.

    • Remove the cable after pushing out both black clips.

    • Remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
