Einleitung
The battery stores the power needed to run the device. Batteries can age over time, decreasing in capacity, or even fail outright. Replacing the battery with a new one can solve this issue. This guide will walk you through the process of replacing the battery of the ASUS VivoBook Flip TP501U.
Werkzeuge
-
-
Open the laptop until it is flat and lay it screen down.
-
Remove eight 9.6mm Phillips #00 screws from the bottom of the laptop.
-
Remove two 4.8mm Phillips from the corners of the device.
-
-
-
Turn the device face up.
-
Use the plastic Opening Pick to separate the keyboard panel from the chassis that was just unscrewed.
-
-
-

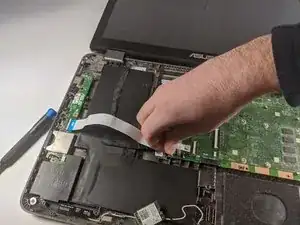

With the keyboard panel pulled up, detach the two ribbon cables from the motherboard using the blue tabs on the cables.
-
Remove the keyboard panel completely.
-
-
-
Unscrew the 3/16 inch long screw that holds the battery to the chassis using a #00 Phillips Screwdriver.
-

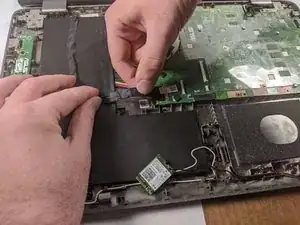

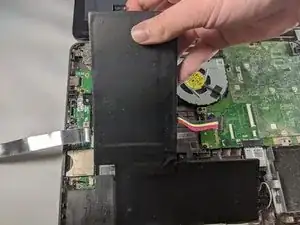

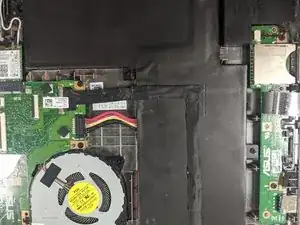

Lift the battery from the chassis.
-
To reassemble your device, follow these instructions in reverse order.
