ASUS VivoBook S300CA-BBI5T01 Wi-Fi Card Replacement

Geschrieben von: Keith Rachels
  • Kommentare: 0
ASUS VivoBook S300CA-BBI5T01 Wi-Fi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

6 Minuten

Einleitung

This guide's focus is on replacing the Wi-Fi card of a wireless desktop computer. Please follow the directions below to accomplish this result.

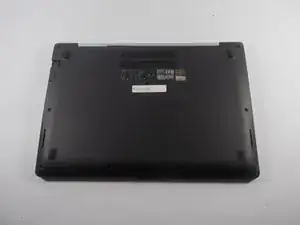

  1. JPbgpEWS5KKoah4A

    • Place the laptop upside down so that the bottom panel is facing upwards.

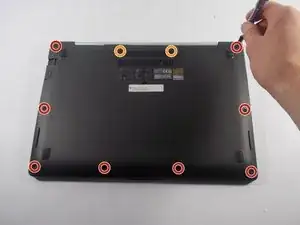

  2. FZVrapZVD6QE1vRe

    • Unscrew the following 10 screws

    • Eight 5 mm Phillips head screws

    • Two 10 mm Phillips head screws

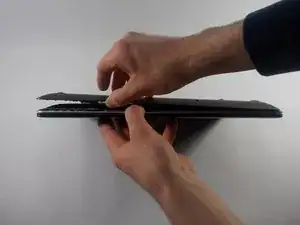

  3. qDlWBtIMnlnILAEI

    • Carefully peel the panel off of the bottom of the laptop.

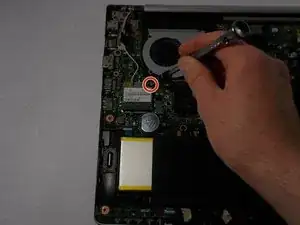

  4. hQmkPZTjKcNMWrHD

    • Remove the one 3 mm Phillips head screw holding the Wi-Fi card in place.

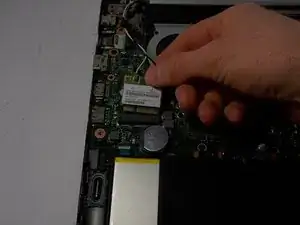

  5. wCVwLK5TeNIORotf

    • Carefully slide the card out of its connection port by pulling it outward.

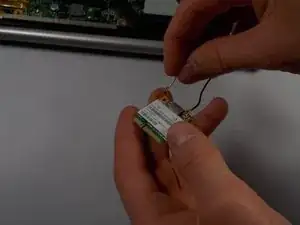

  6. fQfXWWvZuoVHDUsA

    • Remove the black and white antenna cable connector wires by carefully pulling upwards on them.

    • Note that the black wire connects to "Main" and the white wire connects to "Aux".

Abschluss

To reassemble your device, follow these instructions in reverse order.
