ASUS Vivobook Q301LA-BSI5T17 Fan/Heatsink Replacement

Geschrieben von: Amrinder Singh
  • Kommentare: 0
ASUS Vivobook Q301LA-BSI5T17 Fan/Heatsink Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

The fan is the most crucial part of the ASUS Vivobook Q301LA-BSI5T17. If the fan doesn’t work properly you will run a risk of overheating your laptop. Once a laptop overheats you can cause multiple internal problems.

These steps will help you replace your fan and prevent your laptop from overheating.

  1. 33RX2ZGZdonydNRR

    • Remove all ten 6mm Phillips #1 screws from the bottom of the computer chassis.

  2. cVdcWaVUgWRhJ2XP

    • Carefully pry open the back cover from the laptop and place it to the side.

  3. tPIWyUdY6UoTVORK

    • Remove three 5mm Phillips #1 screws that are holding the fan in place.

  4. SDRIGyMaPx1BUbDR
    SDRIGyMaPx1BUbDR
    XNBdKTjEiVLRtcUJ

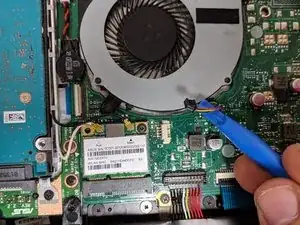

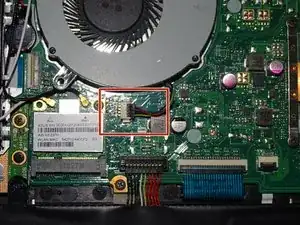

    • Carefully unplug the fan cable from the motherboard using a spudger or plastic opening tool.

  5. IFCBcFZcDIex5wiC
    IFCBcFZcDIex5wiC
    RocJGEFWH1KldXce

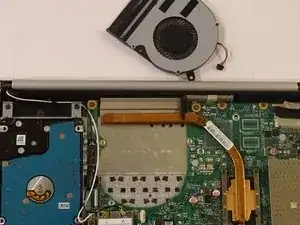

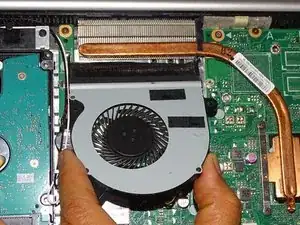

    • Carefully use your hands to remove the fan by pulling it from the heatsink housing.

    • Do not use excessive force; there is a potential to break the plastic.

Abschluss

To reassemble your device, follow these instructions in reverse order.
