Einleitung

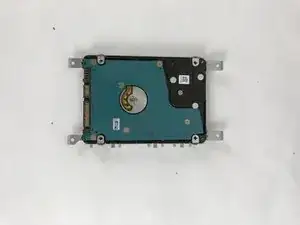

This guide will show you how to remove the hard drive from the laptop. The hard drive is where all files on the computer are stored on. By changing the hard drive, you will be able to upgrade the performance of file loading speeds.
Most commonly, you would use this guide to upgrade the hard drive to a more modern one, such as a Solid State Drive (SSD). With a SSD, the computer will load programs significantly faster and will be quieter due to the lack of any moving parts.
Please keep in mind that only 2.5-inch SATA drives can be installed on this laptop, due to the size limitation of the drive bay.
Werkzeuge
-
-

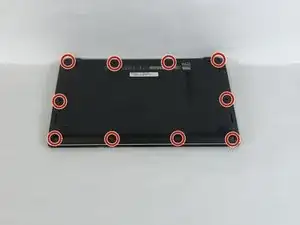

Unscrew the (10) screws on the bottom of the computer chassis using the JIS #0 screwdriver.
-
-
-

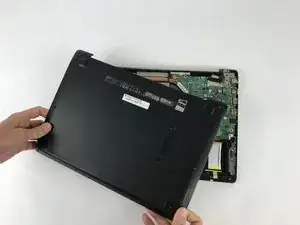

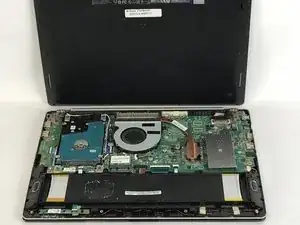

Slightly lift the lower case and push it toward the rear of the computer to free the mounting tabs.
-
-
-

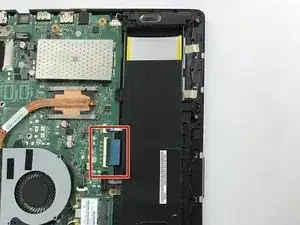

Remove the (6) six screws attaching the battery to the frame using the JIS #0 screwdriver.
-

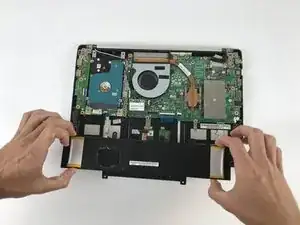

Use the black plastic spudger to remove the battery from the device.
-
-
-

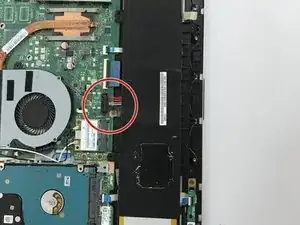

Gently take the battery out of the laptop, making sure that all wires connecting to it are disconnected.
-
To reassemble your device, follow these instructions in reverse order.
Ein Kommentar
Vorrei installare un secondo hdd al posto del lettore cd. Devo comprare un HDD Caddy, che ha ha il lettore cd? Con quali caratteristiche è comprensarlo? GRAZIE
Pay attention to the different lengths of the screws
