ASUS X42J IO Board Replacement

Geschrieben von: Connor Pelis
  • Kommentare: 0
ASUS X42J IO Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

25 - 45 Minuten

Einleitung

The IO board in the ASUS X42J contains vital ports including power, ethernet, and one USB port. This is the very last thing that can come out of this device, so this will be the most time consuming guide for this device.

  1. CZPIC4SwatlMPbu5

    • Make sure your device is unplugged and turned off before proceeding.

    • Using a Spudger, gently pry up the keyboard.

  2. mwrSovwdExuWMYt1
    mwrSovwdExuWMYt1
    EXiVYMLLLIpjwXtA

    • Rotate the keyboard to face downward.

    • Pull out the blue wiring connection. Use tweezers to make it easier to remove.

  3. ZUEJv6mMFiGqRNJs

    • Use the Phillips #0 screwdriver to remove the two screws on the back of the laptop.

  4. P6rXs1GNSLiCV6XE

    • Slide the disk drive out of the device.

  5. WP2DhoQyveXZ1D1f
    WP2DhoQyveXZ1D1f
    WGSbBPOhP6ewsLOA
    6nyCmEL31EiA1Xtb

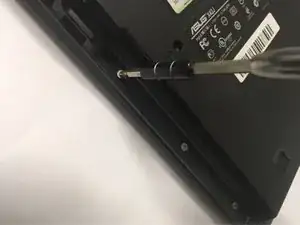

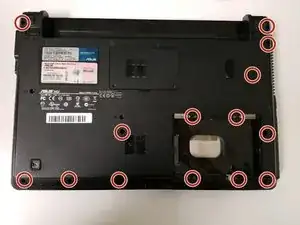

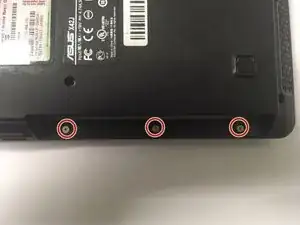

    • Remove all screws located on the bottom plate of the laptop, beginning with the three located underneath the disc drive.

  6. RHZbwTNp5KZFE5Yj
    RHZbwTNp5KZFE5Yj
    4fAdrH2iIHDTQGPH

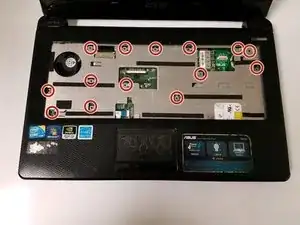

    • Rotate the laptop until it is sitting face up and extract all screws exposed by removing the keyboard.

  7. beMqJ1C4jAtLAVyI
    beMqJ1C4jAtLAVyI
    DA3OxaihZFiwQwwS

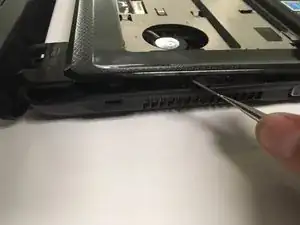

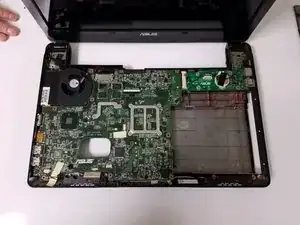

    • Pull up on the front panel using the spudger until the front panel separates from the bottom panel.

  8. VKJNC5VgnVWtlBXO

    • Unscrew and remove the marked screws.

  9. SPt2i51MicIuNlDh

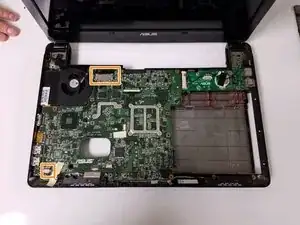

    • Separate the connectors.

  10. vdYiePXh6k1a2qHb
    vdYiePXh6k1a2qHb
    LVEeblnIYCKjcDdk

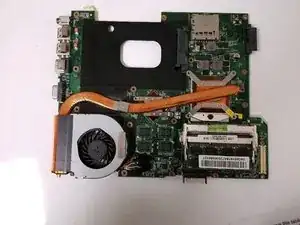

    • Remove the motherboard from the device.

  11. V3kh3dlsakxNqWGB
    V3kh3dlsakxNqWGB
    A5ynk5gQtgjYx2dH

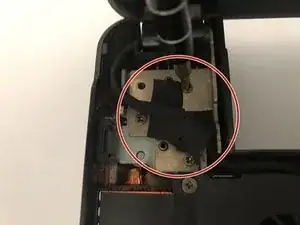

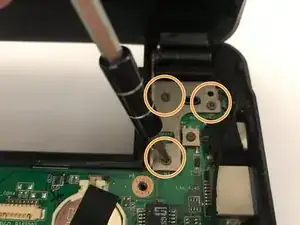

    • Remove the tape from the screen connector.

    • Remove the screws from the connector.

  12. ntWjbwbIfJDEDDyC

    • Pull the screen away from the mount.

  13. NOjDJnXLZ23GhyJC

    • Pull the IO board off of the mount.

Abschluss

To reassemble your device, follow these instructions in reverse order.
