Einleitung

Use this guide to help you replace a broken or damaged screen in your laptop. Don't forget to keep track of all your screws.

  1. KWueXTCGrtBVrNBN
    KWueXTCGrtBVrNBN
    olBGPhrEUq1w1suh
    • Flip the device over.

  2. 5BPCavAOQMMFhfJc
    5BPCavAOQMMFhfJc
    XEWBuJ65Us1Bd3dX
    3e1iD6fBWNKJXLOt
    • Slide the right lock button to the unlock position.

    • After it is unlocked, a red line will be visible.

  3. SGiygMCARBjIFlZr
    SGiygMCARBjIFlZr
    5KZUnU2GBVGNRVmi
    • Slide the left lock button into the unlock position and hold.

  4. BHTyROPwnnykEVUt
    BHTyROPwnnykEVUt
    VnxFsUm6lYCWZfNl
    gIvweW3M43UOsAg6
    • While holding the left lock button in the unlock position, push the battery from the center away from you.

  5. rvuSfoUFoJnZAZ41
    rvuSfoUFoJnZAZ41
    TvpodNBBwZPbNHZQ
    • Remove the two 9 mm Phillips head screws with the PH0 bit indicated by the red circles in the picture.

  6. cMyKDZCsWltWZeRn
    cMyKDZCsWltWZeRn
    NBFlFNXxB1tf5gAO
    • Once the screws are removed, slide the back panel away from the computer.

  7. GBZUWYxXEBknnarQ
    • Remove the 9mm Phillips head screw in the left bottom corner of the hard drive with the PH0 bit.

  8. Egh6hjw6jl1udyMC
    Egh6hjw6jl1udyMC
    HYEqmW3IDjCQLDuJ
    • Slide the hard drive to the left, unlocking it from its default position.

  9. MLVMOrXiCWgWnriM
    MLVMOrXiCWgWnriM
    tpp4K1vTeamGsguX
    • Pull the hard drive upwards and take it out of its position.

  10. bfflLr6wCDpbNgGO
    bfflLr6wCDpbNgGO
    YCGyBfRRpnrpCus6
    2LoGtlEqBPSmBaK5
    • Remove two 3mm Phillips head screws, one located on each side of the metal casing holding the hard drive using the PH0 bit.

  11. h1hR2xTXtf6IHCPg
    • Pull upwards on the metal casing and it will come off.

  12. lPoWMETcLTFjkHiZ
    lPoWMETcLTFjkHiZ
    PXj3y6XxRNEDP2Wg
    • Open the laptop to show the keyboard.

  13. mGxbgwRqUqkBbVrW
    • Look at the top row of the keyboard, you will see a space that has four latches holding the keyboard down.

    • The latches are located above the Esc key, the F5 key, between the F10 and F11 key and the Delete key.

  14. FJohgSBh3SNGgoFu
    FJohgSBh3SNGgoFu
    RpGTFDZbxZHUURjH
    VXiEbESVYdntphmS
    • Don't pull too hard on the keys otherwise they may fall off.

    • Push the latch away from the keyboard using the spudger point.

    • While pushing the latches use a plastic opening tool and pull up on a key near it.

    • Continue along the rest of the keyboard until it is released at all four latches.

  15. fBtPJ1quqPHcBVtM
    fBtPJ1quqPHcBVtM
    FKWShKohZLHjg3jq
    • Push the keyboard away from the mouse track pad to unlock the bottom from the base.

    • Do not pull too hard because there is a ribbon connecting to keyboard to the motherboard.

  16. C4UWgqyaQLJV2TLE
    C4UWgqyaQLJV2TLE
    irgPEHFTfEAsdJPa
    • Flip the keyboard over to reveal the back of it and what is underneath.

  17. ufGEIuXVO4MLYvEL
    ufGEIuXVO4MLYvEL
    JWmF1Xrb4bYEMOlP
    NckqdhcCKxI4vBWV
    • Pull each end of the black ribbon cable piece towards the mouse track pad to unlock the ribbon connector piece.

    • Gently pull out the ribbon cable from the connector piece.

  18. WehlkUyVOMPymujY
    • Remove the keyboard completely.

  19. 2QWCMRws51Wt5CEi
    2QWCMRws51Wt5CEi
    QaooQSUlKmqWH2pw
    NHeXc6TCg4BLNVov
    • Lift up the black lock holding the ribbon.

    • Using the blue tab, pull out the ribbon.

    • Pull gently on the ribbon to remove the risk of damaging the ribbon.

  20. LjVhSAdfMbL21FSJ
    • Lift up the black lock holding the ribbon.

    • Using the blue tab, pull out the ribbon.

    • Pull gently on the ribbon to remove the risk of damaging the ribbon.

  21. cQrrP4c3YKSwNEjD
    cQrrP4c3YKSwNEjD
    GVaRh4yvfLxS6AOB
    • Remove the five 9 mm Phillips head screws with the PH0 bit.

  22. oniMo2rQ32wgTP3Q
    oniMo2rQ32wgTP3Q
    yTBaRjJIWchxWKYf
    • Flip the laptop on its side so that the red line indicated in the pictures is facing upwards.

  23. tjqxNHiROi4CBJDk
    tjqxNHiROi4CBJDk
    keybHpKpKYYGny1R
    • Pull up on the disk drive and remove.

  24. pM6kRCXtLJNTGyRP
    pM6kRCXtLJNTGyRP
    YPFIWbkuWfuTx2yy
    • Close the laptop and flip it over.

    • Remove the six 12.5 mm screws Phillips head and the five 9 mm screws remaining with the PH0 bit.

  25. edIlgDIDHGY4AoTf
    edIlgDIDHGY4AoTf
    wJkpnWZtCbORrbbE
    QmoH6cMFqyudcDN3
    • Flip the device back over and open the laptop.

    • Using the nylon or metal spudger, gently pry off the panel by moving the spudger along the seam.

    • You should hear clicking sounds as the front panel is being removed from the base.

  26. dVV5vQv2SLAUkrM4
    • Remove the panel.

    • The laptop will now become heavier to the front so it will tend to fall on the back side of the screen.

  27. JVYKYKEHKIt2x34K
    JVYKYKEHKIt2x34K
    HNDAOeBGfRLJSOvj

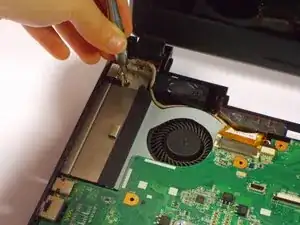

    • Remove the 5mm Phillips head screw using the PH0 bit.

  28. woXdQUgj4ASNWfun
    woXdQUgj4ASNWfun
    dwtfbLiq6LTCIKts
    K2mAwW2JDGCiFitL

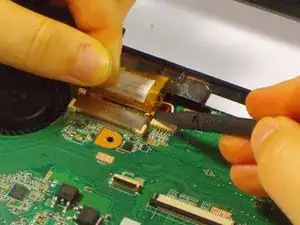

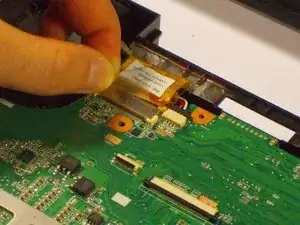

    • Pull up on the tape holding the tan cable in place.

    • While holding the tape push up on each side of the cable connector to disconnect it.

  29. BlxS1HjNSAbPZdcN

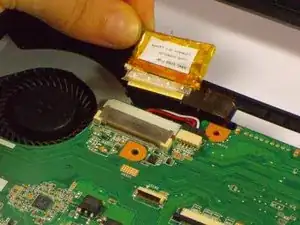

    • Gently pull out the cable connector.

  30. EioCU1GxkXRUZwVK
    EioCU1GxkXRUZwVK
    RdDVwFQW1eKFtoV5
    CxgmEXte343L1iRj

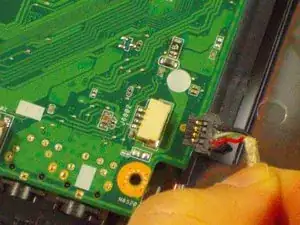

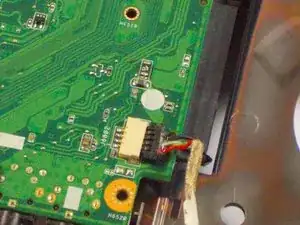

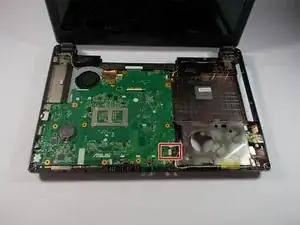

    • Gently pull out the USB connector attached to the motherboard.

  31. oUFaKFJVVdWsKSwn
    oUFaKFJVVdWsKSwn
    RRyZQVicMQ3ud6KX

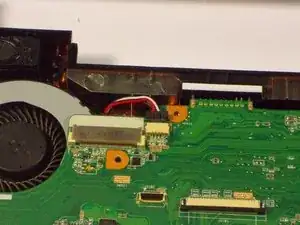

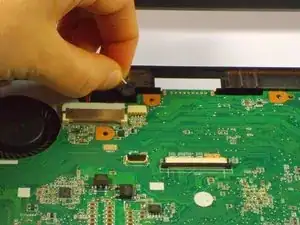

    • Remove the red and white wire connector next to the fan.

  32. qFOW4ecy1E1WLKIZ

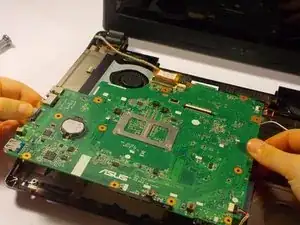

    • Take out the motherboard

    • There are still two wires connected to the bottom of the motherboard so remove carefully.

  33. WMYm1ClJO55AIeLq

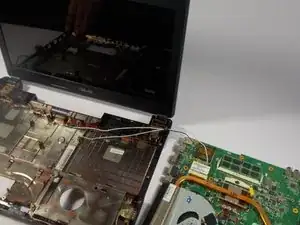

    • Flip the motherboard over next to the laptop base.

  34. pAMIKf6CQPQ1OdLe
    pAMIKf6CQPQ1OdLe
    Re1hMmGxTgQfNtlx
    TnFxmGX3vXsjbMoy

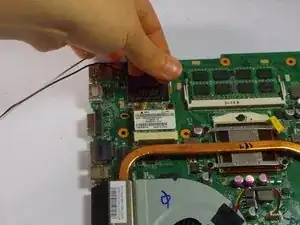

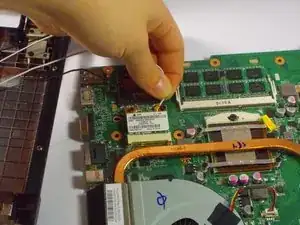

    • Remove the white and black wire.

    • The motherboard is not completely separated from the base of the computer.

  35. 5CWsdAsUlQaiiWjb
    5CWsdAsUlQaiiWjb
    BkKyLiDK2LgFlqHh

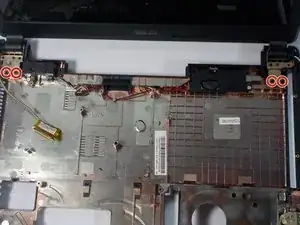

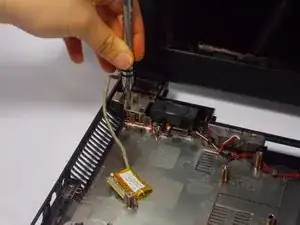

    • Remove the four 9 mm Phillips head screws that hold the screen to the base with the PH0 bit.

  36. TZOEGVFHnH6aPy62

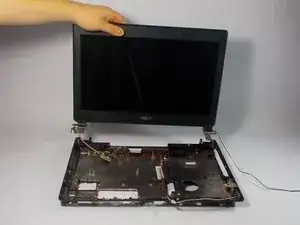

    • Lift up the screen from the base.

  37. ZbslcrnEeevpsBVU
    ZbslcrnEeevpsBVU
    WasUVNtqk3WX6uvE

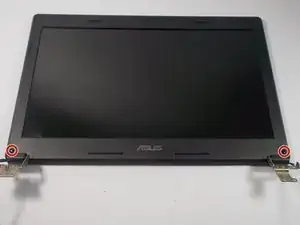

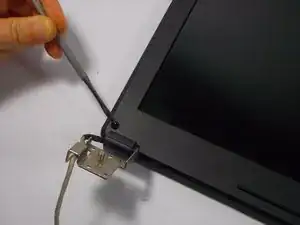

    • Remove the rubber pads with the nylon or metal spudger to reveal two 5mm Phillips head screws.

  38. iOBeakLTolQwGlRv
    iOBeakLTolQwGlRv
    krmQ5kwi3eLq6Frs

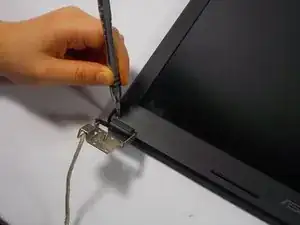

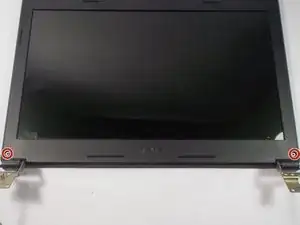

    • Remove the two 5mm Phillips head screws with the PH0 bit.

  39. wBJjYTKaQrNWjHJn
    wBJjYTKaQrNWjHJn
    mTSP6eD5EswlG2gd

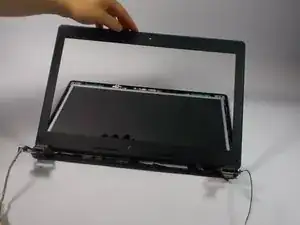

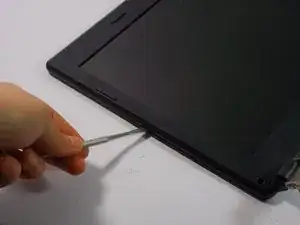

    • Pry open the screen cover by running the nylon or metal spudger in the seams.

    • Remove the cover.

  40. lNCGVQOcIVf1SdwF

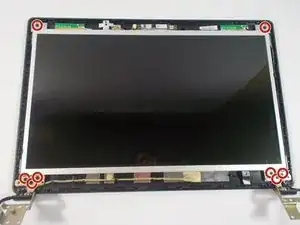

    • Remove the eight 5mm Phillips head screws holding down the screen with the PH0 bit.

  41. xQnDNperM5gIfI16

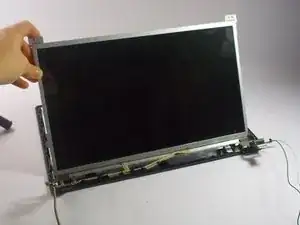

    • Lift up the screen.

    • Carefully remove the screen because there are still wires connected to the screen

  42. cBMOKLyeO5X1UcOq
    cBMOKLyeO5X1UcOq
    N1hNlEEHxYxM2HRK
    VjgtcR6wxYwSQRmL

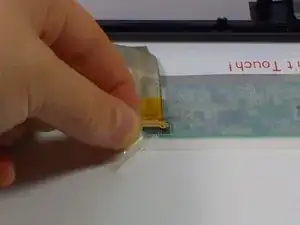

    • Lift up the tape piece securing the ribbon to the screen.

    • Pull out the ribbon.

    • Remove the screen completely from the frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
