ASUS X502CA Wi-Fi Card Replacement

Geschrieben von: Christian Spencer
  • Kommentare: 1
ASUS X502CA Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

20

Zeitaufwand

30 Minuten

Einleitung

Replacing the Wi-Fi card itself is quite simple, however, they did not make it easy to get to. To remove the Wi-Fi card you will need to remove most of the internal parts of the computer. All pre-requisite guides are listed and shown above.

  1. qWC1aeIsA1M1OGch

    • Use the Phillips #00 screwdriver to remove the seven 90mm screws.

    • Use the Phillips #00 screwdriver to remove the four 50mm screws.

  2. ZWLs3MKHBgUBenEC

    • Next, use the plastic opening tool to carefully pop off the keyboard cover panel.

    • Be cautious when pulling off the cover because there are cables you will have to disconnect before completely removing the panel.

  3. CXxHpdwpMKHTAh4d
    CXxHpdwpMKHTAh4d
    WgEmifKaORvyMPDt

    • Lift palm rest and unplug keyboard cable and touchpad cable using tweezers. After these two cables have been unplugged you can remove the keyboard cover panel.

  4. nlEF1UGiDRqvgCVT
    nlEF1UGiDRqvgCVT
    JqV1ZEYNuKqOUC5e

    • Lift Palm Rest away.

    • Replace with new palm rest.

  5. WD3vHCrTdWmUbLuj
    WD3vHCrTdWmUbLuj
    Jyx5HZsOrhGqYTZM

    • Remove the four 5mm screws that attach the hard drive bracket using the Phillips #0 screwdriver.

  6. tyRyKWhCstKsPrjs
    tyRyKWhCstKsPrjs
    OCESQbkCg2KMVHnY

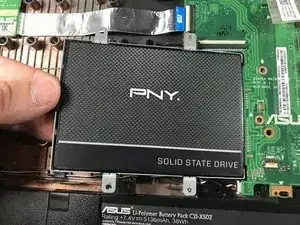

    • Lift the hard drive and attached bracket up and out.

  7. aUDCR3jAP6AdHXDy
    aUDCR3jAP6AdHXDy
    fODZKVYs5GRDkjre
    CBDNLMQLwqhpavME

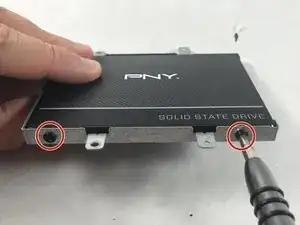

    • Remove the four 5mm Phillips #0 screws attaching the bracket to the hard drive.

    • There are 2 screws on each side.

  8. 1FPJAaGQcRLxnQwt
    1FPJAaGQcRLxnQwt
    y1JWnVgjdgmMo5cg
    JpgdquFGn5sPTBeN

    • Use the plastic opening tool to flip up the small clamp and pull out the ribbon cable.

  9. joZcDAvOO16mnjKg
    joZcDAvOO16mnjKg
    oRJgRJWiOcsCHqDD

    • Use 1 or 2 plastic opening tools to push down the small black plastic clips.

    • Pull the board up and out.

  10. UIuMWMLCWKfVrKB5
    UIuMWMLCWKfVrKB5
    hdX4uJYNoQSmdemP

    • Locate the I/O board on the left of the computer. Using the Phillips #0 screwdriver, unscrew the three 5mm screws to unhinge the screen, which will free the board allowing it to be removed and replaced.

    • Be careful with handling your computer while one side is unhinged; mishandling or over pressuring the other hinge could cause damage to it or the screen.

  11. MIa3GqdAXbgp4oOQ
    MIa3GqdAXbgp4oOQ
    RXh4uvsKPuswlFcx

    • Unplug the power strip connecting to the motherboard with your fingers or plastic opening tool.

    • Make sure the power strip is disconnected before pulling the board out.

  12. wOqWkjBlOfJcJuRC
    wOqWkjBlOfJcJuRC
    ULAfYU3gmKKc2jIH

    • Slightly pull the unhinged screen up to free the board and remove it.

  13. 6fGbOpcxWkNqoKls

    • Next, locate the battery in the front of laptop (closest to you).

  14. 6fiaoFpjc6IVvoqU

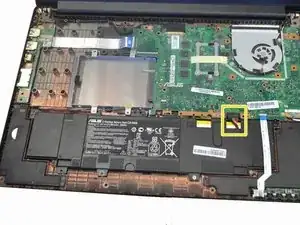

    • Unplug the battery from the laptop in the upper right hand corner of the battery using tweezers.

    • If battery is not unplugged, motherboard may shock you.

  15. jijRAXEnd4NGlDMP
    jijRAXEnd4NGlDMP
    JMigrQg2aGxLfoCC

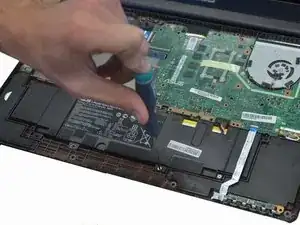

    • Use the Phillips #00 Screwdriver to carefully remove the 6 screws holding the battery in place.

    • Once you have removed all six screws carefully lift the battery out and dispose.

    • Each screw is 50 mm in length and 15 mm in diameter.

  16. JLjoiFx56YbbOuHI
    JLjoiFx56YbbOuHI
    YCHU4WGN5uDdeZhy

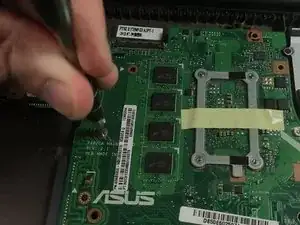

    • Use the Phillips #0 screwdriver to remove the last five 5mm screws holding the motherboard down.

    • These screws will be marked by diamonds next to the screw holes.

  17. caegliVwrOpQYjwL
    caegliVwrOpQYjwL
    WbiYAAkacPQresSR

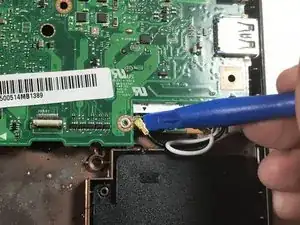

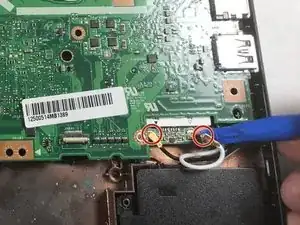

    • Use the plastic opening tool to unclip the two wires from the Wi-Fi card that are connected to the motherboard.

  18. dbsGrJBRAncgPD3y
    dbsGrJBRAncgPD3y
    BWen1RUaTC1NvQSN
    NGCdbxC6aevGJXbm

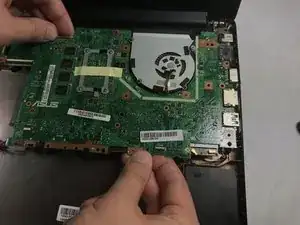

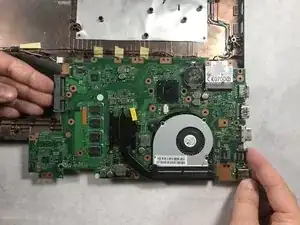

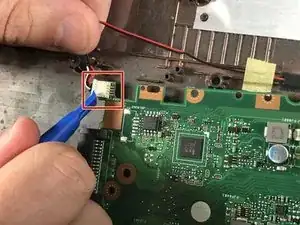

    • Flip the motherboard over and use the plastic opening tool to unplug the black and red wires from the motherboard.

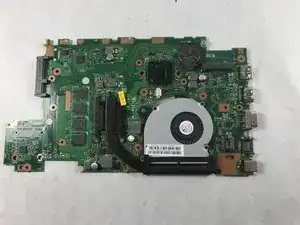

  19. kqxA6awr46UuyBND

    • Pull up on the motherboard and take it out.

  20. AjgDyyeGsCdoJYjs
    AjgDyyeGsCdoJYjs
    QusXXVi3ThX2HZH3

    • Take out the 2.5mm PH #0 screw located on the top of the Wi-Fi card.

    • Lift the card up and pull it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
