Einleitung
The display monitor is an output device which presents data on the screen. It is what allows the user to see what inputs they are putting into the device.
Werkzeuge
-
-

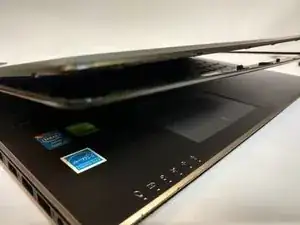

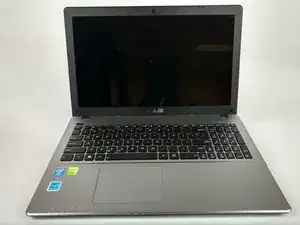

Flip open the laptop with the screen facing towards you.
-

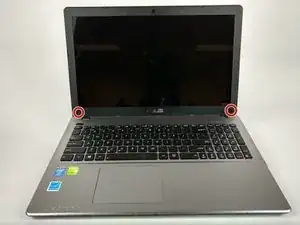

Using the plastic opening tool, remove the square tape from the marked locations.
-

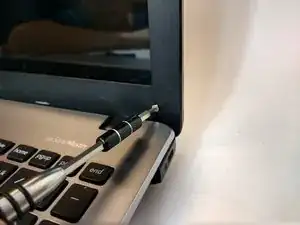

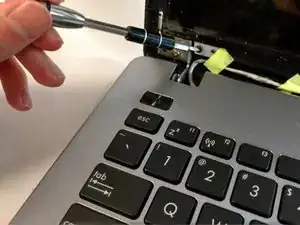

Use the Phillips #0 Screwdriver to remove the two 2mm screws from those locations.
-
-
-

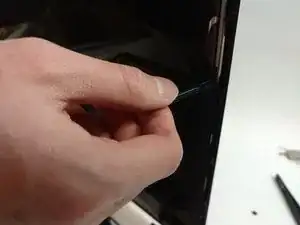

Peel off the tape located on the left and right side of the display monitor.
-

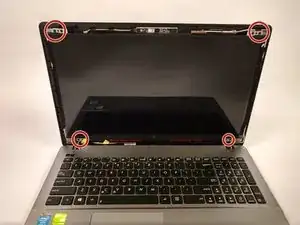

Use the Phillips #0 screwdriver to remove the screws at the marked locations in each corner of the display.
-
-
-
Place the display monitor face down to expose the ribbon connector.
-

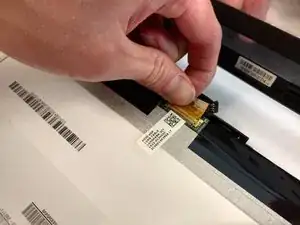

Remove the ribbon connector to separate the display monitor from the rest of the device.
-
To reassemble your device, follow these instructions in reverse order.
