Einleitung

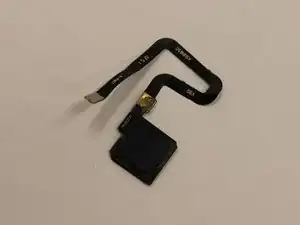

This guide will demonstrate how to replace the fingerprint scanner of a Zenfone 3. This may be necessary if the scanner no longer activates or inaccurately reads fingerprints. For this guide, you will need the tweezers, Torx T2 screwdriver, a prying tool, and the Phillips #00 screwdriver.
-
-
Insert a prying tool between the screen and the metal backing of the phone at the bottom to remove backing from phone.
-
-
-
Remove the two 3 mm screws, using the Phillips #00 screwdriver, on the silver band at the top of the battery and remove the band.
-
-
-

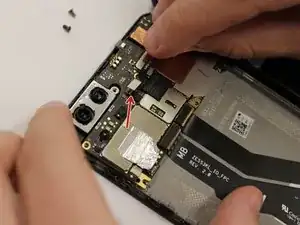

Unplug the wire connecting the two large pieces of the device. Next, seperate the two halves of the phone.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
