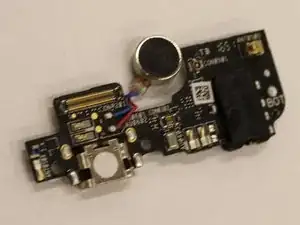

This guide will demonstrate how to replace the Speaker/Charger Port/Headphone Jack of a Zenfone 3. This may be necessary if these functions no longer work as normal. For this guide, you will need the tweezers, Torx T2 screwdriver, a prying tool, and the Phillips #00 screwdriver.
-
-
Insert a prying tool between the screen and the metal backing of the phone at the bottom to remove backing from phone.
-
-
-

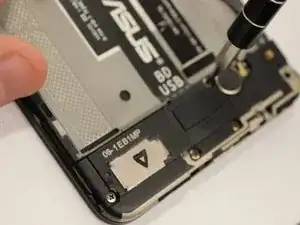

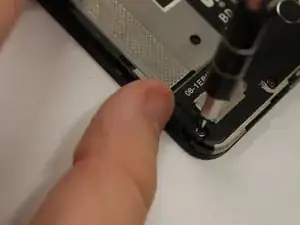

Remove the two 3 mm screws, using the Phillips #00 screwdriver, on the silver band at the top of the battery and remove the band.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
