ASUS ZenBook UX302LA-BHI5T08 Back Cover Replacement

Geschrieben von: Kristen Gismondi
  • Kommentare: 1
ASUS ZenBook UX302LA-BHI5T08 Back Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

Most components that need to be replaced are inside the base of the laptop. The laptop back panel will need to be removed in order to reach the inner components. This guide will give a step-by-step walk-through on how to remove the back panel of the ASUS ZenBook UX302LA-BHI5T08. For safety, make sure to unplug and turn off the laptop before starting this guide. When the back cover is removed, make sure to use extreme caution as the inner components of the laptop will be exposed!

  1. EOFklNQUVRfrNT6Y
    EOFklNQUVRfrNT6Y
    wjYumlDmXufh63eD

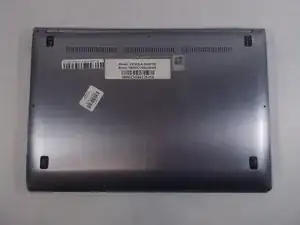

    • Flip the laptop over so the model stickers face the ceiling.

  2. pPcbWNYDrGJZQPll
    pPcbWNYDrGJZQPll
    6XZuhdXDmNZjJxqf

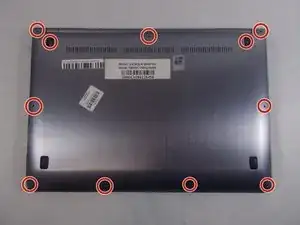

    • Remove eleven 7mm Phillips #00 screws that secure the back cover.

    • Two screws are under the rubber pad.

    The screws around the back cover are T5 screws, and the 2 screws under the rubber pads are Phillips #0 screws

    Tahir Khanzada -

  3. RqtXCIh1NSnCBvqq
    RqtXCIh1NSnCBvqq
    5qtRWoS3sNwZAlW6

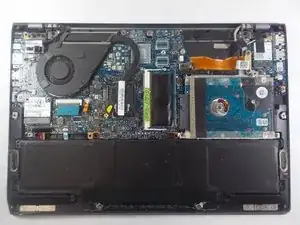

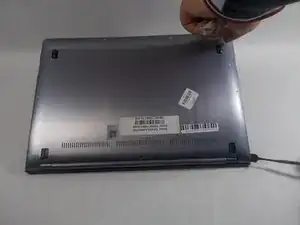

    • Using a spudger, carefully remove the back cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
