ASUS ZenBook UX302LA-BHI5T08 Battery Replacement

Geschrieben von: Jin Feng Lin
  • Kommentare: 1
ASUS ZenBook UX302LA-BHI5T08 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide goes over the procedure step by step on how to remove the battery in the ASUS ZenBook UX302LA-BHI5T08. This is something that’s essential to do when experience issue with powering up the computer or faulty battery.

  1. EOFklNQUVRfrNT6Y
    EOFklNQUVRfrNT6Y
    wjYumlDmXufh63eD

    • Flip the laptop over so the model stickers face the ceiling.

  2. pPcbWNYDrGJZQPll
    pPcbWNYDrGJZQPll
    6XZuhdXDmNZjJxqf

    • Remove eleven 7mm Phillips #00 screws that secure the back cover.

    • Two screws are under the rubber pad.

    The screws around the back cover are T5 screws, and the 2 screws under the rubber pads are Phillips #0 screws

    Tahir Khanzada -

  3. RqtXCIh1NSnCBvqq
    RqtXCIh1NSnCBvqq
    5qtRWoS3sNwZAlW6

    • Using a spudger, carefully remove the back cover.

  4. ph1WYkMEhehgfWMh
    ph1WYkMEhehgfWMh
    ZJK6TI1YpCvLPwq5

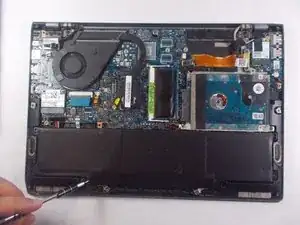

    • Remove the six 3mm Phillips #00 screws holding the battery in place.

  5. Wbok4qe4hOQWIlHG
    Wbok4qe4hOQWIlHG
    2AeNyWwWs6WTKmIN

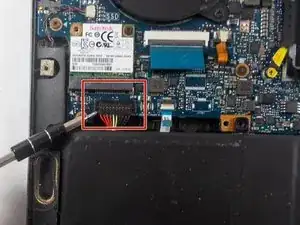

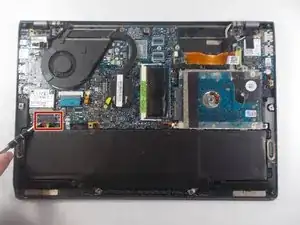

    • Disconnect the battery wires from the motherboard by pulling on the black tab using a spudger or your hands.

  6. LCMZkPNBTE3UEBhN

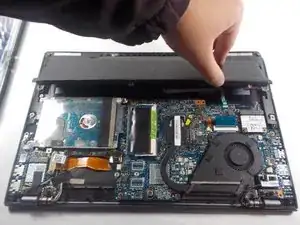

    • Carefully lift the battery up and out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
