Einleitung

This is a prerequisite guide to replacing the components in an ATT CL2490 phone. In order to get to these components, the back panel must be removed. This guide shows how to remove the back panel safely and effectively.

  1. TkrvmhM5T2HRKSb5
    TkrvmhM5T2HRKSb5
    A5nSAkjP2NfHs4yK
    xhVxGOoEkjWjiOww

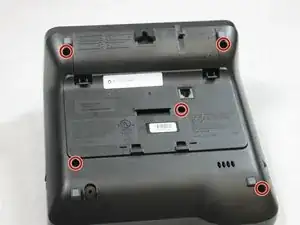

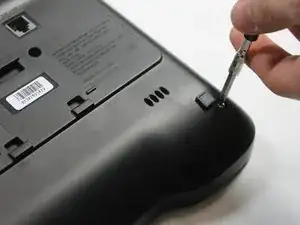

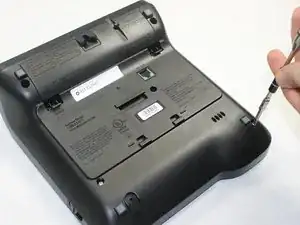

    • Remove five 9.5 mm Phillips #1 screws from the back panel of the phone.

  2. UFGjamdGKS2tX5Lb
    UFGjamdGKS2tX5Lb
    JxFg3uZ1beBdoQDk
    X2ZPG1feZ2dZeUfs

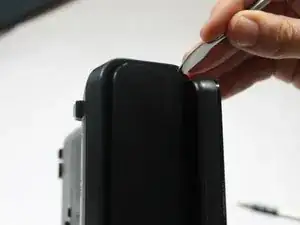

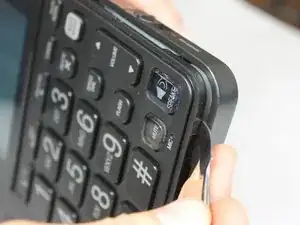

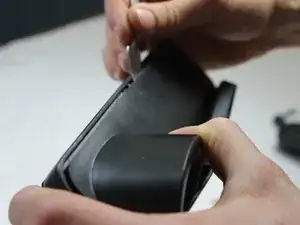

    • Slide the metal spudger into the crack and continue around to the front panel of the phone.

    • Be careful not to break the clips that hold the back panel to the front panel.

  3. UPJdLAAOFnWjEROa
    • When setting the back panel down, be careful to not rip any of the wires off of the internal components.

Abschluss

To reassemble your device, follow these instructions in reverse order.
