ATT CL2940 Buttons and/or Keypad Replacement

Geschrieben von: Charles Messmore
  • Kommentare: 1
ATT CL2940 Buttons and/or Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 Minuten

Einleitung

This guide delivers the complete steps to replace missing buttons and/or the keypad for the ATT CL2940 black corded speakerphone. The tools are listed and required to successfully complete this project.

This project is necessary for individuals who need to replace the buttons or keypads for this device. It can save you money and the hassle of switching to a new device.

If you need more information on how to troubleshoot this device, please follow this link: ATT CL2940 Troubleshooting. It has several troubleshooting instructions that will help you evaluate the technical needs of your device.

Warnings to adhere to when completing this project:

When setting the back panel down, be careful to not rip any of the wires off of the internal components.

Keep the screws for the upper and lower level motherboard separated.

  1. TkrvmhM5T2HRKSb5
    TkrvmhM5T2HRKSb5
    A5nSAkjP2NfHs4yK
    xhVxGOoEkjWjiOww

    • Remove five 9.5 mm Phillips #1 screws from the back panel of the phone.

  2. UFGjamdGKS2tX5Lb
    UFGjamdGKS2tX5Lb
    JxFg3uZ1beBdoQDk
    X2ZPG1feZ2dZeUfs

    • Slide the metal spudger into the crack and continue around to the front panel of the phone.

    • Be careful not to break the clips that hold the back panel to the front panel.

  3. UPJdLAAOFnWjEROa

    • When setting the back panel down, be careful to not rip any of the wires off of the internal components.

  4. dObATbAgJJgJYNLX
    dObATbAgJJgJYNLX
    VPOe6Riu1SKq3hXP

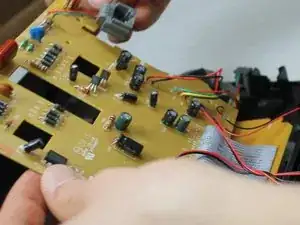

    • Unscrew five 5.6 mm screws on top level, yellow motherboard.

  5. a15EZMK12L52Y3EA
    a15EZMK12L52Y3EA
    2Xx1CwxMv5vyhkEt
    2HrA21J613JBGKTZ

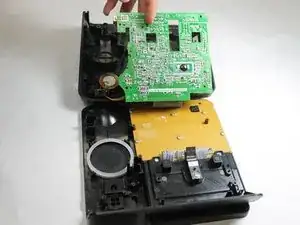

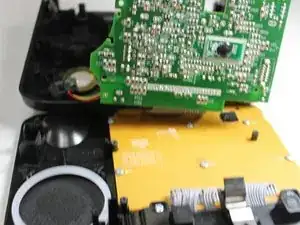

    • Lift the top level Motherboard in order to get to the lower level Motherboard.

  6. KhbK6hJxFNowukIu
    KhbK6hJxFNowukIu
    kIXasUqtfT1mlsry

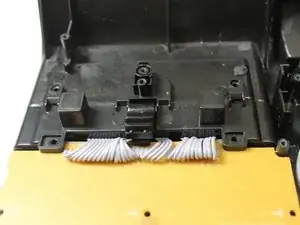

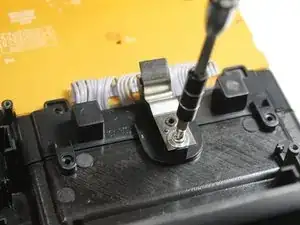

    • Unscrew the 5.6 mm screw on the clip behind the Screen as shown.

  7. sI5w2oFYGmXlPAMq
    sI5w2oFYGmXlPAMq
    FyE5oXXHetXjxkCB

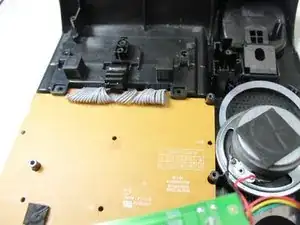

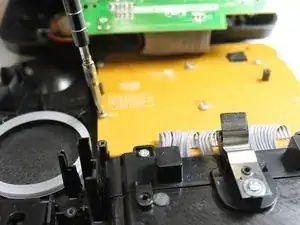

    • Unscrew five 5.6 mm screws on the lower level Motherboard.

    • Keep the screws for the upper and lower level motherboard separated.

  8. pODBON6kGoujKCPK
    pODBON6kGoujKCPK
    oRrXB6CGaBrwSHvm

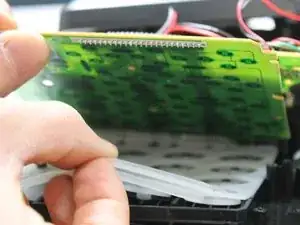

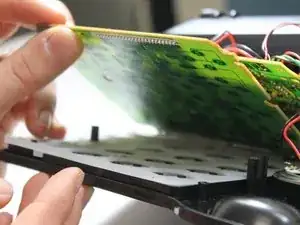

    • Lift the lower level Motherboard upward.

    • Remove the silicon pad above the buttons.

  9. AfopegeeCIc4LMji
    AfopegeeCIc4LMji
    CqHfEJXpyrmiVTNr

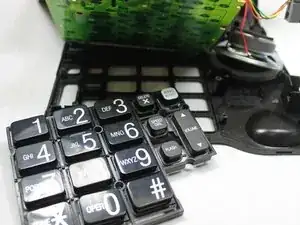

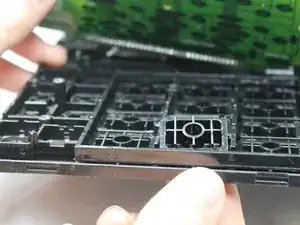

    • Push the Button Panel upward and pull it out.

    • Replace the entire Button Panel or a single defective button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
