ATT EL52300 Keypad/Plastic Display Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 Minuten

Einleitung

Use this keypad replacement guide if buttons are missing or damaged. A potential hazard would be affecting the motherboard through the charge that you internally carry, therefore you should use the anti-static wrist strap to prevent this. References to the other guides will be used.

  1. EIiavp3TaJis1413
    EIiavp3TaJis1413
    gg3sZLyYTPFnsMPE

    • Find the bump where the battery cover meets the phone. Put your thumb here, and push and slide the cover down.

  2. 6JJMoO5tOhIPNl53

    • Unplug the battery by squeezing your hands on the small white plug and lifting it up.

    • Do not pull on the wire itself because you might damage the wire!

    • The battery is now detached and ready to be removed by lifting it out.

  3. VsgucWVxEHAXTBSL
    VsgucWVxEHAXTBSL
    rrbqBgbX1FMKs5P3

    • Remove the two 3.75 mm screws with a PH1 screwdriver.

  4. aLDL2tSD4D6WGhNa
    aLDL2tSD4D6WGhNa
    W2ESVfwhcbVRCrrV

    • Use a plastic opening tool to remove the handset case.

    • Be careful to not lift the case too far as the ringer cable is attached to the case.

  5. eSBRnZNe1eQBhVFG
    eSBRnZNe1eQBhVFG
    rOTeQ2C6Ffmyxl5V

    • Remove the two 3.65 mm screws on the motherboard with a PH1 screwdriver.

    • Use an anti-static wrist strap to prevent damage to the motherboard.

  6. Hen5b6Byq645m32d
    Hen5b6Byq645m32d
    5TeEcKTavGrB6E3i

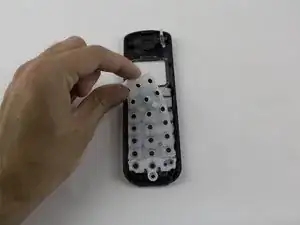

    • The keypad lies on the top of the motherboard and is easily detachable.

    • Remove the keypad.

  7. SAyvZtZICZV52ORi

    • Replace the plastic display screen, or the keypad buttons as needed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
