Einleitung

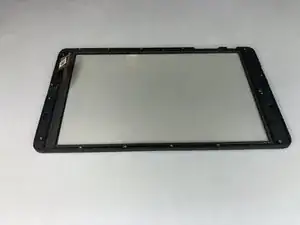

This guide will show how to replace the screen digitizer in the device. This repair might be needed if the screen is not lit properly, or is showing dead pixels on the screen. The tools that will be needed in order to replace this part are the blue plastic opening tool, thePhillips #00 screwdriver, and the angled tweezers. When replacing this part, the motherboard has to be removed.
Ersatzteile
-
-
To separate the screen from the back panel, run the plastic opening tool along the outer edge of the device.
-
-
-
Use a Phillips #00 screwdriver to remove the six 2.5 mm screws located around the perimeter of the battery.
-
-
-
Use the plastic opening tool to disconnect the black battery connector.
-
Gently lift the battery out of the device.
-
-
-
Using a Phillips #00 screwdriver, remove the seven 1 mm screws on the green perimeter of the motherboard.
-
-
-
Use the plastic opening tool to disconnect the large gold strip underneath the metal plate from the motherboard.
-
-
-
Use angled tweezers to pry up the black tab.
-
Use the angled tweezers to pull out the gold connector.
-
-
-
Use the plastic opening tool to disconnect the black connectors on each side of the motherboard.
-
-
-
Use the Phillips #00 screwdriver to remove the six 3 mm screws holding the black plastic corner pieces in place.
-
Gently lift the black corner pieces out of the device.
-
-
-
Use the angled tweezers to remove the black cables on each side of the device from their groove.
-
-
-
Use the plastic opening tool to disconnect the black cable connectors from each side of the device.
-
-
-
Use the plastic opening tool to disconnect the remaining three gold connectors at the bottom of the device.
-
To reassemble your device, follow these instructions in reverse order.
