Einleitung

The back cover is easily removed by inserting a Metal Spudger on the bottom of the phone. Be careful not to use too much force when attempting to open up the phone.

  1. ckMWxUpZyiMq1Kne
    • Open up the phone with a metal spudger, sticking it in the bottom near the cord jack entry.

    • Be careful with the amount of force you use, or the plastic may crack.

  2. OTLv1Kc3pDp6AiAh

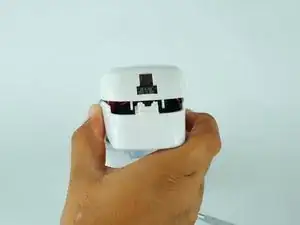

    • Pull up on the spudger while simultaneously pulling up the top shell of the phone.

  3. ERKlO5mXiFNADLIH

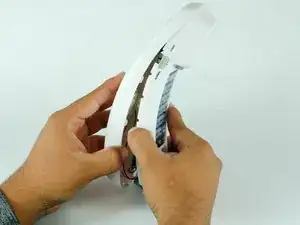

    • After unclipping the bottom half of the shell, pull upward from the position shown in the picture to detach the top half of the shell.

    • The cord connecting the speaker is short, and may detach if not done carefully.

  4. smTXrO2gkN5D6psI
    • You will have the motherboard and speaker exposed to you.

Abschluss

To reassemble your device, follow these instructions in reverse order.
