AUX Audio Input Repair for 2009-2013 Toyota Corolla

Geschrieben von: Binh Duong
  • Kommentare: 18
AUX Audio Input Repair for 2009-2013 Toyota Corolla

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

1 Stunde

Einleitung

This guide will first show you how to disassemble the interior of a Corolla 2010 to get to the AUX input. Then we are going to locate the component to be soldered (but be EXTRA CAREFUL when you solder).

  1. X265vvUZiThjriXL
    X265vvUZiThjriXL
    qJokmKQANRly2W2h
    EgJfGxxBimEYtShB

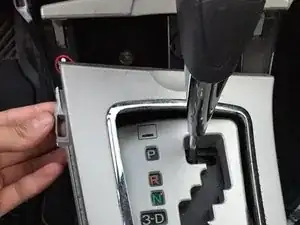

    • Don't be afraid to use extra force to get these components to open.

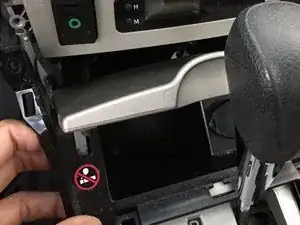

    • 1) There is two side of the component to remove for the first picture

    • Before removing component in the third picture, there are two screws to be removed (one on each side).

  2. bVUISkDBgOvo4tSE
    bVUISkDBgOvo4tSE
    3UwHyK5AKXNKM5IX
    GtvA1BJgkeHKj3KE

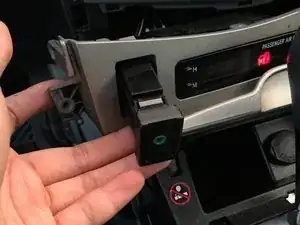

    • Pull the component out in the first picture with force!

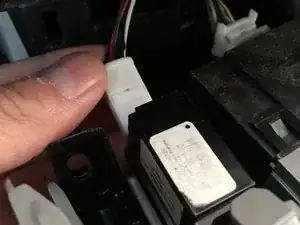

    • Reach underneath the white component connected to wire and along there, push to remove it from the AUX component (black rectangle thing)

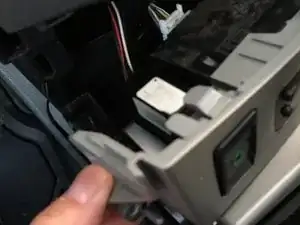

    • Once the white component detached, simply push AUX component out (toward you).

    Thank you so much I just fixed my aux on my 2009 camry. Same issue where it would not stay on aux option it would go directly to radio. Appreciate it so much!

    Brandon Morales -

  3. fV3nmHtxtI4oTLFF
    fV3nmHtxtI4oTLFF
    hUpQQvGpgJAGFNaX
    4JxZCoWlFGbQHuUO

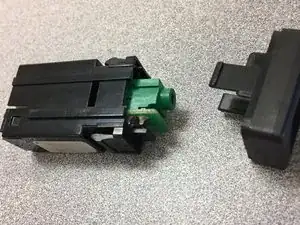

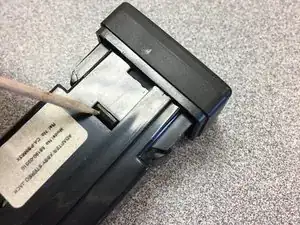

    • Apply pressure where the toothpick is pointing and remove the cap at the same time. (Can get tricky)

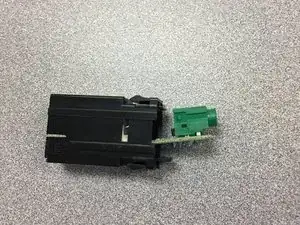

    • Finally, like the third picture, remove the AUX circuit with force but try to be gentle also.

    I was able to solder without removing the circuit out of the black case. You should be able to reach it easily.

    guytus0 -

    It is easier to remove the small upper back plate then pull out the AUX circuit board.

    It slides out easily.

    atenyim -

  4. SCFeDXikSNVVXcDb

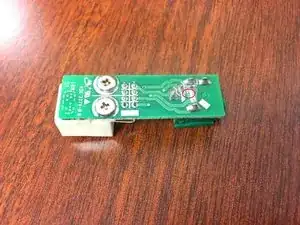

    • The center pin is located where the red circle is at on the picture

    The pins are the pointy things. The red circle doesn't actually show the pins but it is close. Make sure you put solder on the pins and not the pre-existing solder. This might sound dumb to some, but the first time I did this I soldered the old solder instead of soldering the pins because I had no soldering and electronics experience. I thought that it would cause electricity to bridge between them. Not only does the solder need to cover each pin, but both pins needs to be inside the same solder bubble.

    Dustin -

  5. hIXVgJNUuYAaeOF3

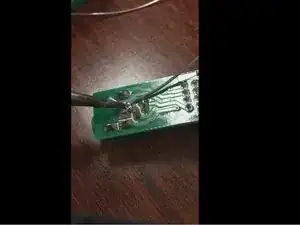

    • Hold the soldering gun in one hand and the solder in another. Lightly touch them together where the pin is shown in previous step.

  6. EAJGepViOYiLNMEL

    • Soldering does not have to be perfect as long as it connects the two pin we located in the previous picture.

    • Insert wisdom here.

    Before you put everything back together you should test that the aux port now works as intended. You can do this by plugging the port in without putting the panel back on. Then connect your aux device and try to play music or something. Whole the music is playing disconnect the aux wire from the car. The car's radio should remain on aux mode even though there is no longer a device connected. If it switches modes it means that you did not solder the aux pins correctly. After this you can reassemble everything. If you want to be extra cautious you can check all other electrical components that you may have had to disconnect (like a cigarette lighter) before putting all the panels back on.

    Dustin -

Abschluss

Hopefully this guide will save you time if done correctly and will definitely save you money. Local Toyota shop will charge over $100 just for an inspection and that doesn't include repairing the AUX input.
