AXIOO Pico M1110 PJM LAN Card Replacement

Geschrieben von: Cakra Diaz
  • Kommentare: 0
AXIOO Pico M1110 PJM LAN Card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Replace the LAN Card.

  1. 3GO3TP5ga64bHWMu

    • Identify the battery locker.

    • Set the righthand locker to unlock.

    • Pull the battery while setting the lefthand locker to unlock.

  2. Mt63OaJRFeqQTVtj

    • Remove the battery.

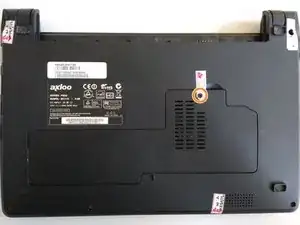

  3. C533PNJPKAOWJeAn
    C533PNJPKAOWJeAn
    BPUsRiDbuNlT2EY6

    • Remove the following screw:

    • 1 long Philips #0 screw

    • Remove the cover.

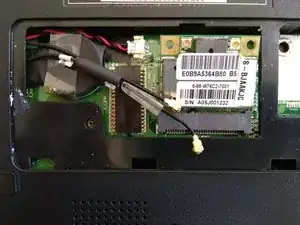

  4. fLmLJfM61yIWyH2f
    fLmLJfM61yIWyH2f
    aFW2kMfuLOokSlj1
    bVdePJtcBG1Xi6Lh

    • Remove the coaxial connectors by prying the connectors straight up from the board.

    • Remove the following screw:

    • 1 short Philips #0 screw

    • Remove the LAN Card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
