AYL SoundFit Speaker Replacement

Geschrieben von: Sajal Kherde
  • Kommentare: 2
AYL SoundFit Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace the speaker of the AYL SoundFit.

  1. urMS1wqTLHNdo1RJ

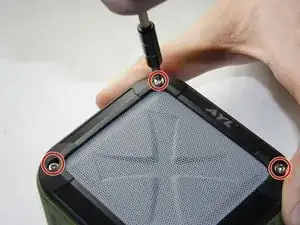

    • Unscrew the four hex screws on the top of the device using a 2.5mm hex screwdriver.

  2. m1AZHoyASy56E5lR

    • Place a spudger between the black plastic cover and the green case.

    • Remove the black cover away from the main casing and remove the cover.

  3. TyiJl4CivJlZ4cbF

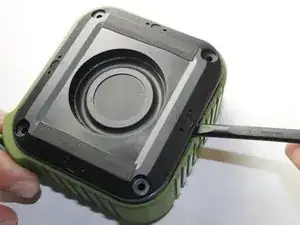

    • Place the spudger tool between the black housing, which contains the woofer, and the outer rubber casing.

    • Remove the housing away from the body to reveal the motherboard, speaker, and battery.

  4. bWMk5pNsRJlEJyWk
    bWMk5pNsRJlEJyWk
    QKaQYu5hSvosxsQf

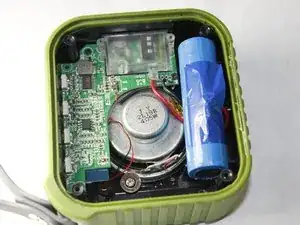

    • Remove the two Phillips screws which hold its battery casing on the housing using a PH00 Phillips screwdriver.

    • Remove the battery case to reveal the battery.

  5. pGUBU6RXTSIRIyIE

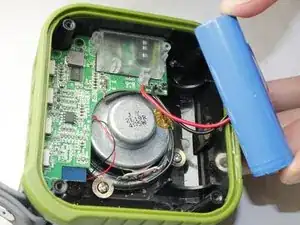

    • Using a soldering iron, heat up and remove both the positive and negative battery contacts from the motherboard.

  6. fZHXwj2FjkKZvryp
    fZHXwj2FjkKZvryp
    IOxMDB3wCj1Q2Jyh
    46LWNRkvXG6cEgoT

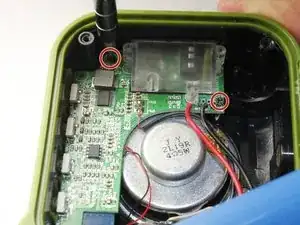

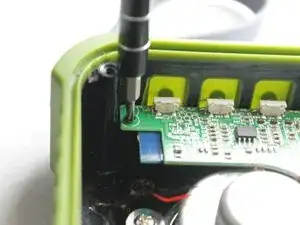

    • Remove all three Phillips screws which holds the motherboard to the base using a PH00 Phillips screwdriver.

    • The motherboard can now be wiggled free from the base.

    Where do I get a new Motherboard to replace the one I have just taken out?

    Mikie Groscurth -

    Where do I get a new Motherboard to replace theone I have just taken out?

    Mikie Groscurth -

  7. SAyPJ2EGRPStoWgI

    • Using a soldering iron, heat up and remove the positive and negative wire contacts from the motherboard.

  8. pxVrTSToLoHufnba

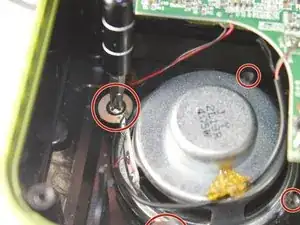

    • Remove four Phillips #1 screws to detach the speaker form the module.

    • Extract the speaker from the body of the AYL SoundFit.

Abschluss

To reassemble your device, follow these instructions in reverse order.
