Aarp RealPad MA7BX2 Speakers Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

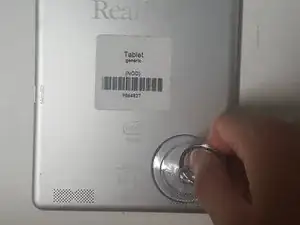

  1. POCLN1tl2uj5GGFU

    • Loosen the back cover using the suction cup.

    • Pull up on all four corners of the back with the suction cup.

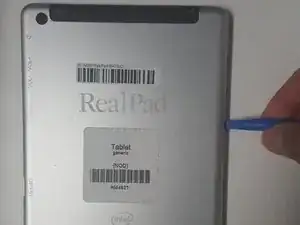

  2. dnubZCJnmu4AuRh5

    • Gently place the small opening tool in the crevice created by loosening the back.

    • Slide the opening tool around the edges of the device.

    • Wedge it open using the plastic opening tool.

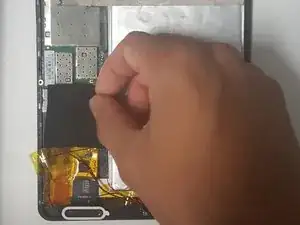

  3. ctR1MM2wRTfgfPN1

    • Gently pull off the black tape.

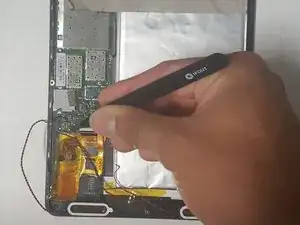

  4. RhLH4qxGePIQEZWB

    • Remove the wires with the tweezers by pulling them upward.

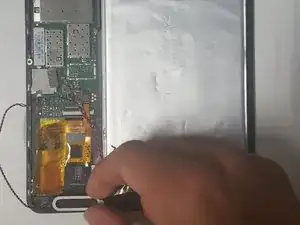

  5. aT1nfWstPwVXGCU1
    aT1nfWstPwVXGCU1

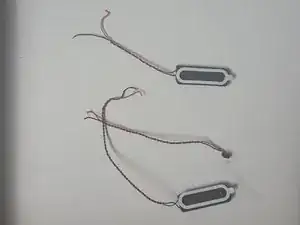

    rKhpAbBSTYvrnyWA

    • Pull the speakers upward with you hand.

Abschluss

To reassemble your device you will need to solder the wires back in position and then follow the other steps in reverse order.
