Einleitung

In this guide, you will be able to access and remove the LCD screen from the camera's frame.

  1. ZgmSVK6peCUBf5g4
    ZgmSVK6peCUBf5g4
    5DZJGlOkKtKhZxmg

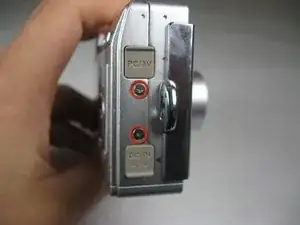

    • Remove the following screws:

    • Two silver 3.15mm Phillips #00 screws on the right side of the camera

    • Two silver 2.08mm Phillips #00 screws on the left side of the camera

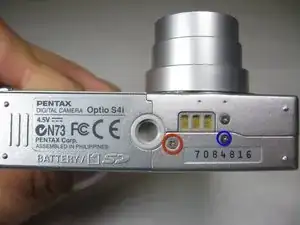

  2. Ti2MvaIh4iSGDH3s

    • Remove the two indicated screws on the bottom of the camera:

    • The screw circled in red is a longer silver 3.15mm Phillips #00 screw

    • The screw circled in blue is a shorter silver 2.25mm Phillips #00 screw

  3. rKw34AmCEhmfFhgE
    rKw34AmCEhmfFhgE
    vDRrY3eqsohAgLjH

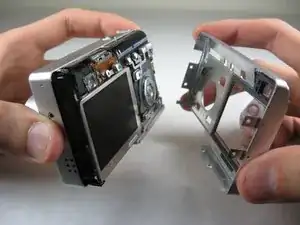

    • Carefully pull the back of casing away from the front.

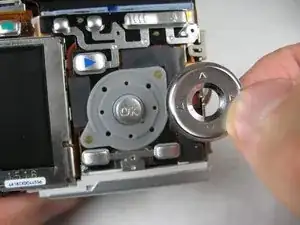

  4. TGBSGe6PpZ11OVdL
    TGBSGe6PpZ11OVdL
    iOSWVovFCHRbIs6T
    ElILR2jSQVCxaeAx

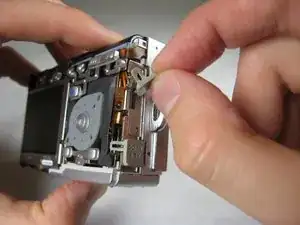

    • After removing the back cover, several things must be removed.

    • Silver donut-shaped button will fall off. Place separately. Remove the plug covers on the right side of camera, labeled “PC/AV” and “DC IN 4.5V”.

  5. MTriUeWyE6Up5xBj
    MTriUeWyE6Up5xBj
    2p3RoehZlahhOBFn

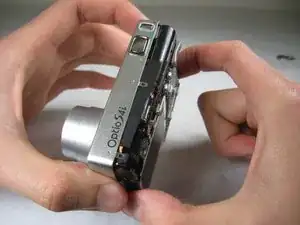

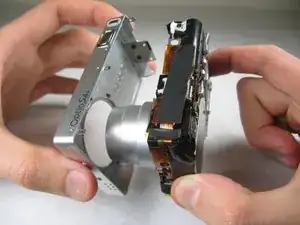

    • To remove the front cover, gently hold the inside structure of the camera and slowly pull the front cover off.

  6. RMroNjINRHArGyeI
    RMroNjINRHArGyeI
    lCdpX3WQGPxFAEiJ

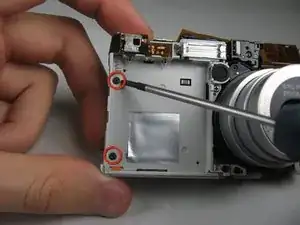

    • On the front of the camera, in battery case, remove screws indicated:

    • Two black 2.05mm Phillips #00 screws

  7. WQOeJNaSbTwNcsDt
    WQOeJNaSbTwNcsDt
    Z1FQl4QA22ms32GZ

    • Flip the camera over to the backside and remove screws indicated:

    • The screw circled in red is a longer black 3.00mm Phillips #00 screw

    • The screw circled in red is a shorter black 2.00mm Phillips #00 screw

  8. GTiZx4gKo4myjeHB

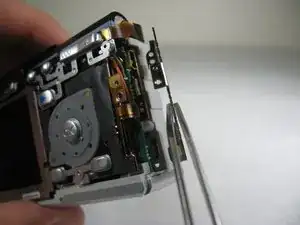

    • Pull the cover plate off for the two power cord jacks.

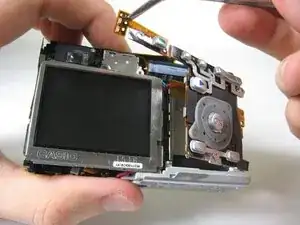

  9. HAxEQrFYaMGQBRgZ
    HAxEQrFYaMGQBRgZ
    AkIg3EuaNwvynN2A
    Gnrp1kFTbYihsVdX

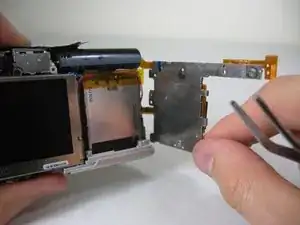

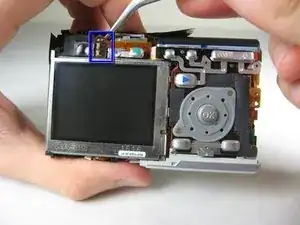

    • Cautiously and gently pull up the control board at the upper left corner, next to the viewfinder.

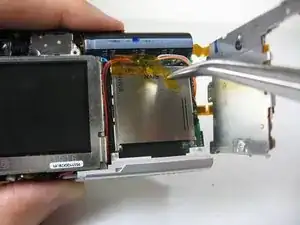

  10. SnV11aW5w55FiEDJ

    • Remove the orange tape on top of the SD cardholder.

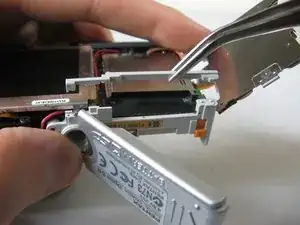

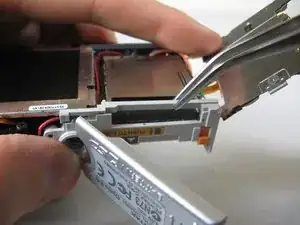

  11. tQYoYYUP4SG1CUKS
    tQYoYYUP4SG1CUKS
    jAB3654L3YTkCplk
    Z3HZJOOJGNHXv33T

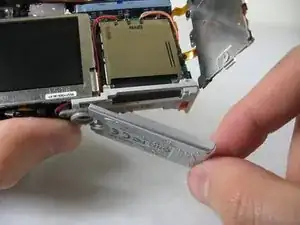

    • Open the battery cover and lift plastic piece off.

  12. k3ajIojyJmwvCQnG

    • Remove tape on left side of camera.

  13. lBS6iYeZ53dFK2Xv

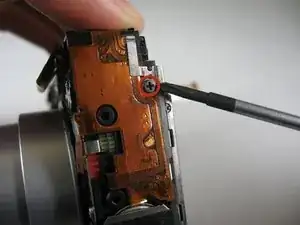

    • Remove the indicated 2.40mm Phillips #00 screw to release top left LCD bracket.

  14. yr2FBrqVHNNyKbWG

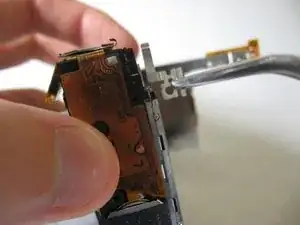

    • Remove top left LCD bracket.

    • This is a small piece, be careful not to lose it.

  15. LuetwHUBYIKr4Oqf
    LuetwHUBYIKr4Oqf
    WdOP6FFQFrQJQIZE

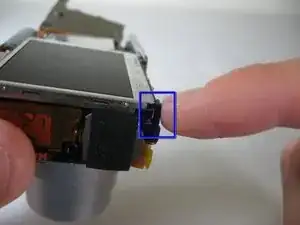

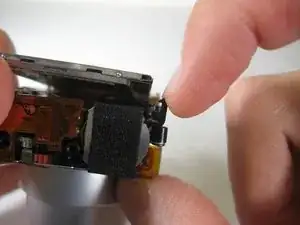

    • Push down bottom left LCD bracket to release the LCD from grip.

  16. CTPiM2EAWwxYPAeR

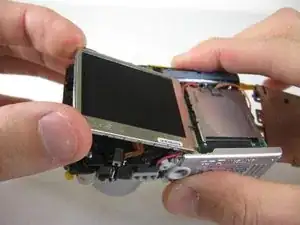

    • Gently lift up LCD screen.

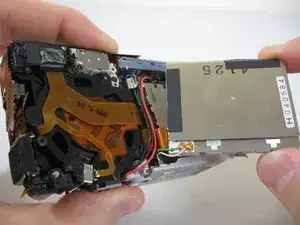

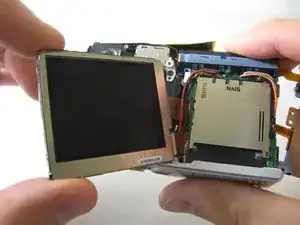

  17. CGfHtjEslnWBWHZg
    CGfHtjEslnWBWHZg
    LxVYlZGjVA3UehOI
    OZlHXXg4kcSbIiwy

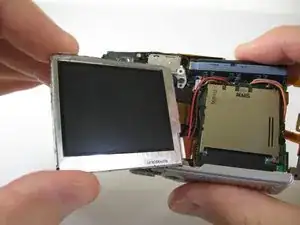

    • Slowly pull LCD screen to the left to remove it from the other grips.

    • BEWARE: The LCD screen is attached to the logic board by two wires at the bottom.

Abschluss

To reassemble your device, follow these instructions in reverse order.
