Acer AL1714 Power Supply Board

Geschrieben von: Christopher Kelly
  • Kommentare: 0
Acer AL1714 Power Supply Board

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

Keine Schätzung

Einleitung

  1. jxCadZB6wrOkmZ4F
    jxCadZB6wrOkmZ4F
    KpVOGMnDmFOFR1Lh

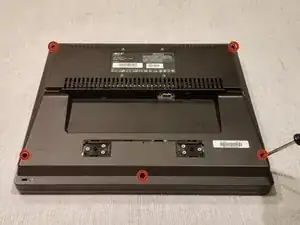

    • Turn the monitor facedown.

    • Unscrew the 5 screws holding the back cover on.

    • (This may require flipping the monitor over and shaking the screws loose once they're already unscrewed)

  2. lYtZZ5NdCuGcU6yZ
    lYtZZ5NdCuGcU6yZ
    xOUFeP6OAvWxQUlw
    jD1JVC5AYh1UEOOy

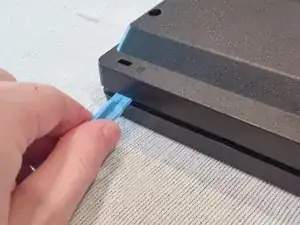

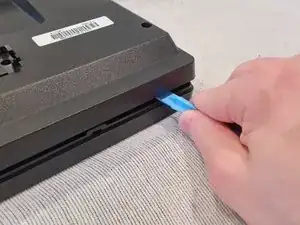

    • Take the edge tool or a metal ruler and insert it into bezel.

    • Apply pressure and push down.

    • Do the same to the right side.

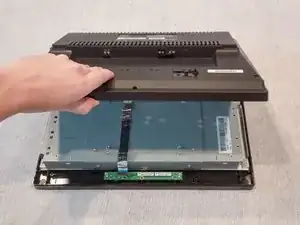

    • Once the side of the bezel facing you is decoupled, take the back cover and pry it loose.

  3. YfqGHtLUcxvsLEJY
    YfqGHtLUcxvsLEJY
    Pd5ZlyWJ6MC6G3EM
    AOS1EFq2W6ZrRRSy

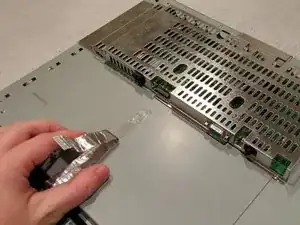

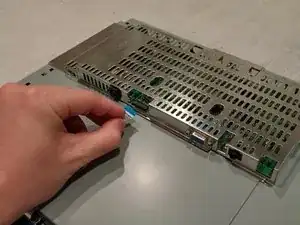

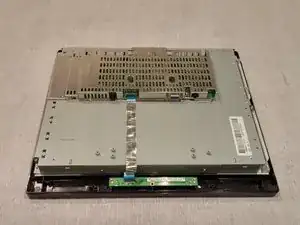

    • Remove the Flat Flex Cable from the Power Supply board under the metal cover.

    • Pull the cord back and out of the way.

    • (It may be stuck down with adhesive)

  4. HZbhOi2NRQlMpfOT
    HZbhOi2NRQlMpfOT
    R2TCDQMSOqAslILI
    i3vJ4WZekVRfmBEF

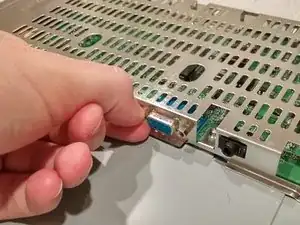

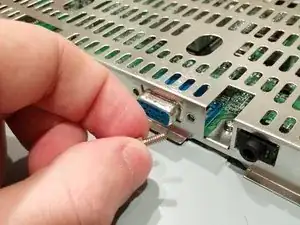

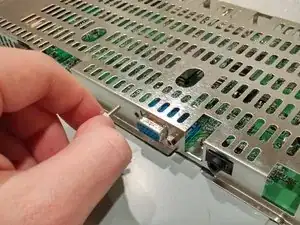

    • Unscrew the cord anchors for the VGA port.

    • (Use needle nose pliers if they're too tight for removal by hand)

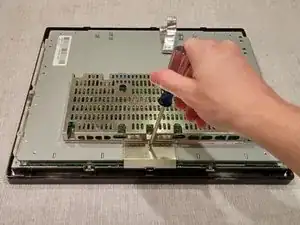

  5. 5vY6QHBmG1POkYX4
    5vY6QHBmG1POkYX4
    qFVFuZ2tyw6GclVl

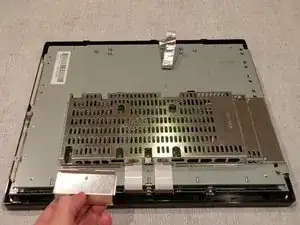

    • Turn the monitor around.

    • Unscrew the 1 screw holding the Flat Power Cable cover in place.

    • Lift up and remove the Flat Power Cable cover.

    • (Careful: it may be sharp)

  6. pyAUNaYFjD3yuLdv

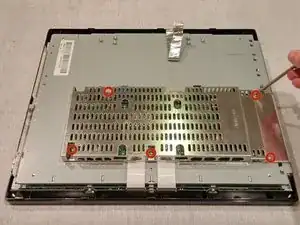

    • Unscrew the 5 screws holding the metal cage on.

  7. bECePiDM5MbgGBxS
    bECePiDM5MbgGBxS
    lNjFELZSICk6EcDN

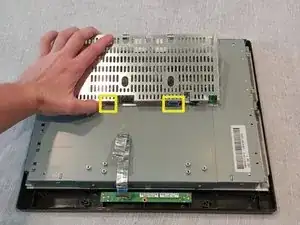

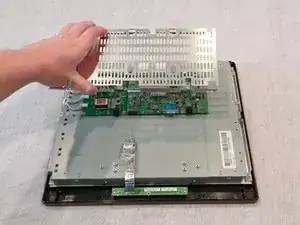

    • Turn the monitor around.

    • Lift up on the back of the metal cage slightly.

    • Pull the cage toward self.

    • (Must be careful to free the cover of the VGA port and power supply input)

  8. jJbItWjsIRQYXlP5
    jJbItWjsIRQYXlP5
    qsMiWsqEISCAhCYY
    2GEVGJH3jnFcAWck

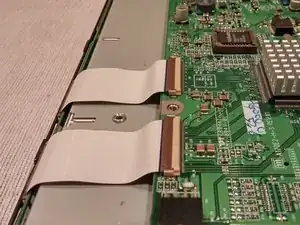

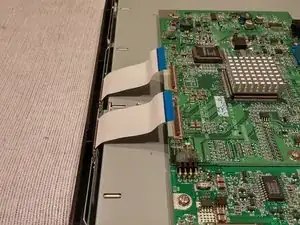

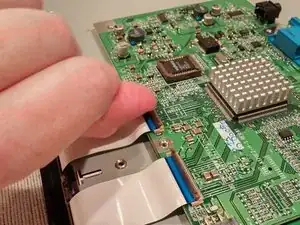

    • Lift up on the Flat Flex Cable holder tabs to release the cords.

    • Lift up on the Flat Flex Cables and bend them out of the working area.

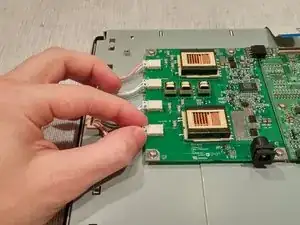

  9. dd3yeIoCNiukmhXH
    dd3yeIoCNiukmhXH
    TPyriSCJiyrS3m34
    CTBvuLPTX3JunjVO

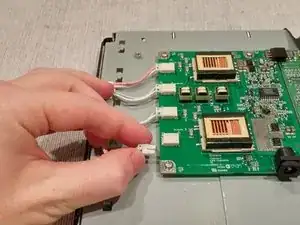

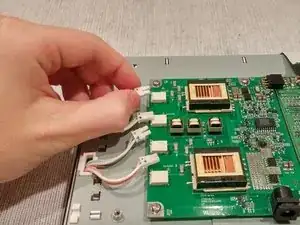

    • Unplug the 4 backlight wires from their ports on the Power Supply Board.

    • (Considering their size, the best way to unplug the backlight wires is by slowly jiggling and pulling the wires out of place)

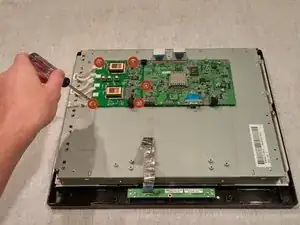

  10. W6eawxCWSNRaC1bD

    • Unscrew the 5 screws holding the joined Power Supply and Video Display boards on.

  11. tjwLGCH4VtFhTDyQ
    tjwLGCH4VtFhTDyQ
    MlCX5ZYiowTrhWqs

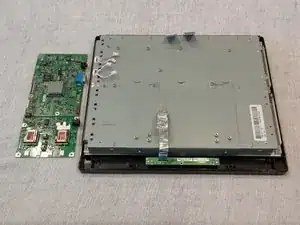

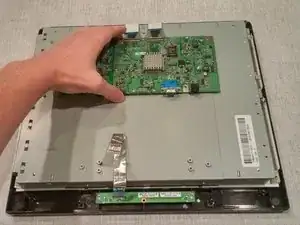

    • Lift and remove the joined Power Supply and Video Display boards.

  12. MauU4hNdwHfxuTwZ
    MauU4hNdwHfxuTwZ
    QO3ARaBPGvPD5CxQ
    BTXUCAPrcud4IaAu

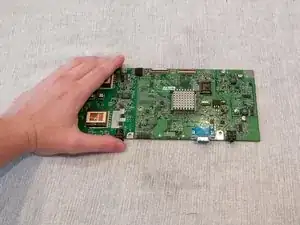

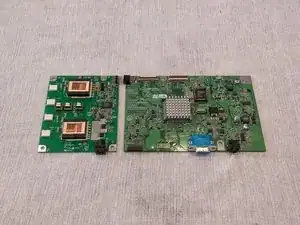

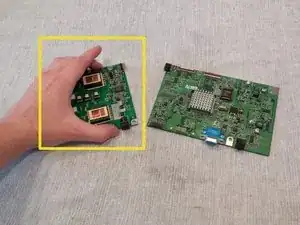

    • Carefully detach the Power Supply and Video Display boards at their connector joint.

    • Replace the Power Supply Board with a new part.

Abschluss

To reassemble your device, follow these instructions in reverse order.
