Acer Aspire 3 A315-21-92FX Hard Drive Replacement

Geschrieben von: ShengKun Lu
  • Kommentare: 1
Acer Aspire 3 A315-21-92FX Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This replacement guide will show you how to replace a full or faulty hard disk drive in your Acer Aspire 3 A315-21-92FX.

Physical or logical failure of your hard disk will cause operating system crashes in your Acer Aspire 3 A315-21-92FX.  Before using this guide to replace the hard disk, make sure to check the troubleshooting page for ensuring that the problem is relative with the hard disk.

  1. AIaDxJkHSuFcHmfP

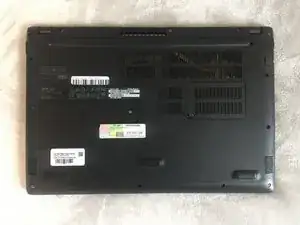

    • Please make sure that there is no external access to the battery, and the battery is out of power.

    • Flip the Acer Aspire 3 A315-21-92FX over, so the back-side is oriented to the upward position.

  2. xiQS1OVEtHP4MIMJ
    xiQS1OVEtHP4MIMJ
    XRsCDXDWQNB5l6CJ

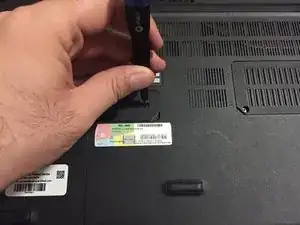

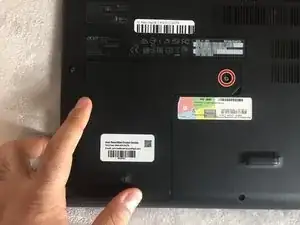

    • Remove the single 2.5mm Phillips #0 screw.

  3. JL5rTroZ2yAPLTaS

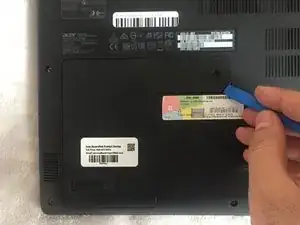

    • Use the iFixit opening tool to remove the cover of the hard disk.

  4. JZ1cywP4ogHFFUUD
    JZ1cywP4ogHFFUUD
    xdahojYZ5Kd4hBUw

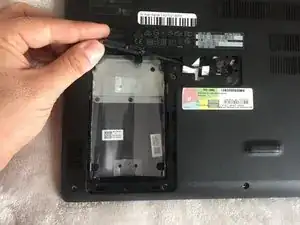

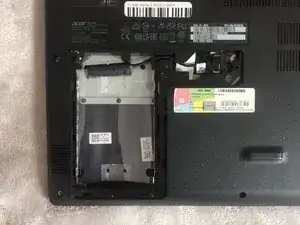

    • Pull the hard disk out of the Acer Aspire 3 A315-21-92FX slightly and slowly.

    • This laptop is missing the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
