Einleitung

This guide will take you step by step through the process of replacing the screen on an Acer Aspire 3000. This process will involve removing the battery and keyboard as well, and will take roughly 30 minutes to complete

  1. gMuH2xUHqTSKHjqI
    • Begin with the device face down.

    • Orient the laptop so that the battery is on the side opposite of you and the headphone ports are facing towards you.

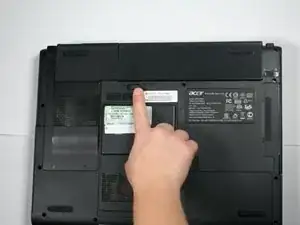

  2. OgWnSIVMiSkkLKht
    OgWnSIVMiSkkLKht
    5an5WpDO63RveKck

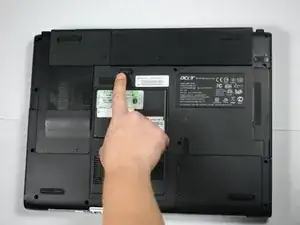

    • Slide the button found below the battery to the left into the unlocked position.

    • You will know the battery is unlocked if the tab is pushed to the side where the symbol is unlocked.

  3. xOO2YZNRKVrb6ScG
    xOO2YZNRKVrb6ScG
    GJPQaQ4b1scEEkCq

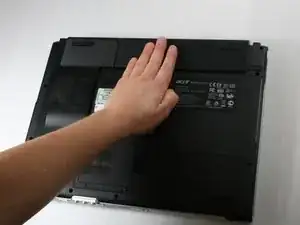

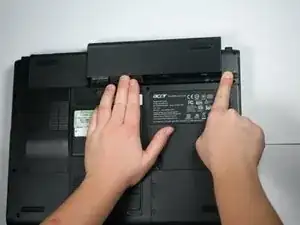

    • Locate the battery and the tab to the right of it.

    • Pull the tab to the right while simultaneously pushing the battery away from you.

    • Make sure you push the battery only when tab is held in the right position in order to avoid damage to the device.

  4. y4ULVNVOFNhFg5Le
    • Remove the two 4.6 mm Phillips #1 screws on the lower edge of the laptop case.

  5. WXFkWWZlfciYhmxN

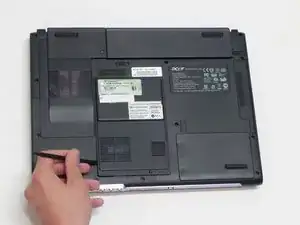

    • Pop the three side tabs out of the back case.

  6. xmEX2QbMomrTBOfg

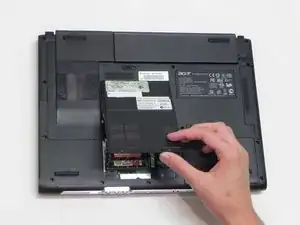

    • Remove the panel that covers the graphics card.

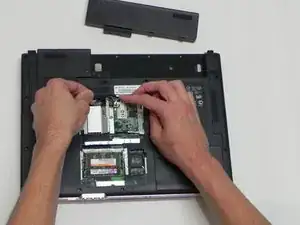

  7. 4tqZuhrymo1atrXI
    • Remove the black and white cables attached to the graphics card.

    • Be careful to lift vertically as to not mess up either part of the connectors.

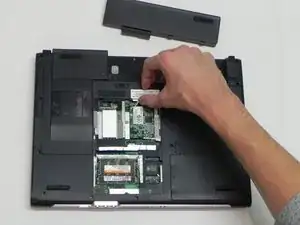

  8. HCVghgIjLGAWT3qd
    • Push the white flanges on either side of the graphics card out.

    • The card should lift on its own slightly out of the case.

  9. HoaAjByhHXXEyqYm
    • Remove the card by lifting up and away from the edge that has all of the contacts on it.

  10. MbevpKv21AbBLqwQ
    • Lift the laptop to be on its edge, with the bottom of the screen in the air.

  11. vwcQQVWJKHvJNfgP

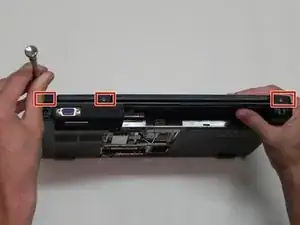

    • Remove the three 4.6 mm Phillips #1 screws that are on this edge.

  12. yFYge12X34fv2EcR
    yFYge12X34fv2EcR
    ncWxLIPY5NGYYgMX

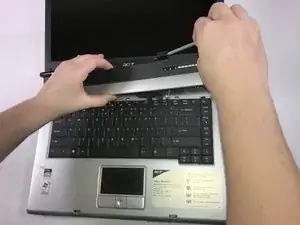

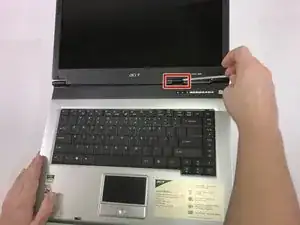

    • Wedge a spudger into the latch on the right side.

    • Open the lid completely to facilitate removal.

    • Pull the handle of the spudger towards you to pop the first of the tabs that hold this piece in place.

    • Starting from right to left, pop the remaining tabs by lifting up on the panel and rotating the panel to the left.

  13. CAclMPoWnWMJP6WP

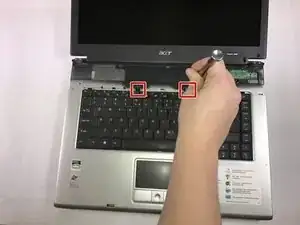

    • Unscrew the two 4.6 mm Phillips #1 screws.

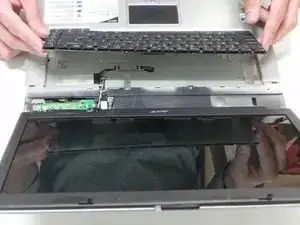

  14. cMPmNCaDrAxOCjHo
    • Gently lift the top edge of the keyboard out of its place.

    • Do not completely remove the keyboard as there is still a ribbon cable connecting it to the device.

  15. 5jshkvCbijtjNZZd

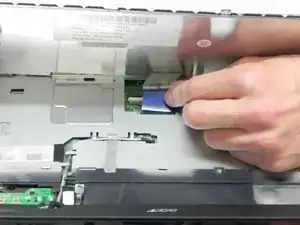

    • Lift the ZIF connector's black retaining flap. Then gently slide the ribbon cable out.

    • Remove the keyboard.

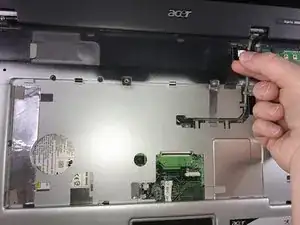

  16. 1wSrUvW4cC3RdkNL
    • Lift the connector attached to a black cable that leads to the screen of the laptop.

    • Be sure to lift vertically, moving your hand slightly towards and away from you as necessary to gently separate the connectors.

  17. QLiZHfLYuq6JsBJl
    QLiZHfLYuq6JsBJl
    ZuYIXE1hXlwOmCl4

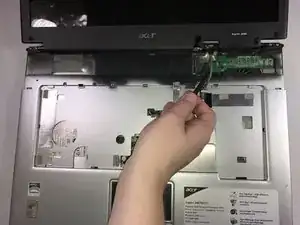

    • Using a spudger, free the grey cable from underneath the plastic bars holding it within the body of the laptop.

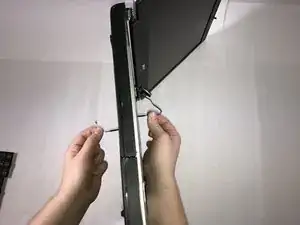

  18. RHNF4XjTngdPrFPt
    RHNF4XjTngdPrFPt
    fyeA2kPDWPgHoSVI
    buRdQuP5sKqdg2fv

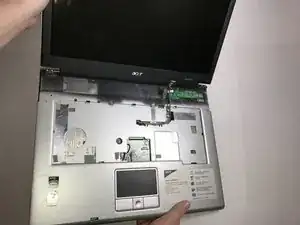

    • Rotate the laptop to where it is standing on its side.

    • Take the black and white ended cable that was disconnnected earlier and straighten it out on the underside of the laptop.

    • Pull the cable through to the keyboard side of the laptop.

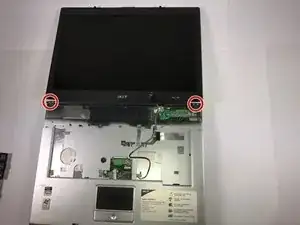

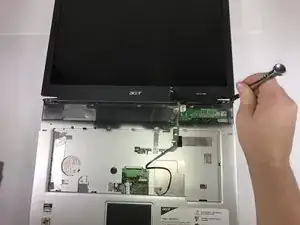

  19. ukmUduXlqIbRA1YN
    ukmUduXlqIbRA1YN
    rcLRrb5OZvqOvYnx
    eCjGVtXJxIJZmNnE

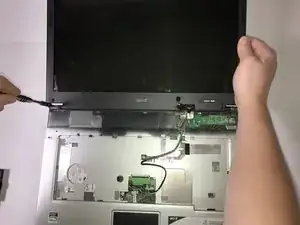

    • Unscrew the four 4.6 mm screws located here.

    • Unscrewing one screw from each side at a time and then supporting the screen as the final screws are removed will help protect the laptop's components.

  20. WBsFpxSQlNC5YrtR
    WBsFpxSQlNC5YrtR
    x4lsWWCL3W2MoN2C

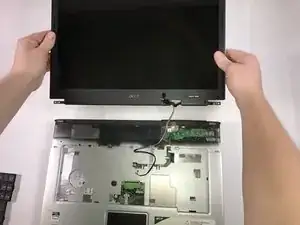

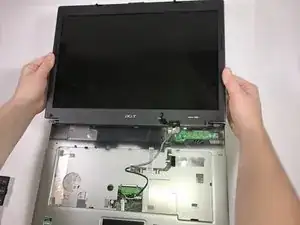

    • Lift the screen and its casing away from the laptop.

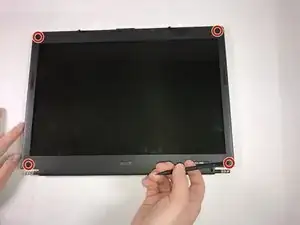

  21. 1DomFZOBFYTcPHSl
    1DomFZOBFYTcPHSl
    mlFUmoN2plMK1rlD
    5J1ScGSOKI6fPJbb

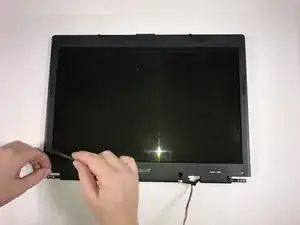

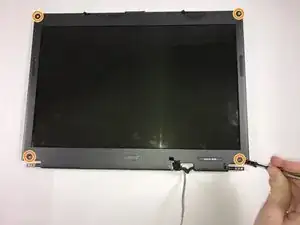

    • Using a spudger, push the four rubber circles covering the screws for the upper casing.

    • Unscrew the four 4.6 mm screws that were just uncovered.

    • There may be some residual adhesive on the top of the screws, this will not harm the driver as you remove the screws.

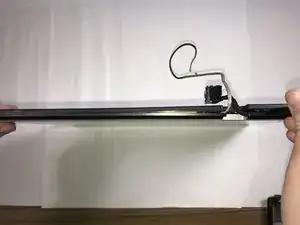

  22. 5Z5tYcMmJfFJj6Vx
    5Z5tYcMmJfFJj6Vx
    Vasd2VGAIxVvFJke
    WvXOoBCJFN3HEXVW

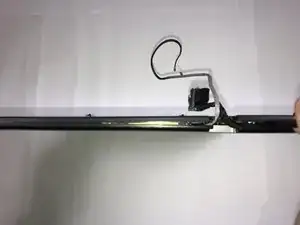

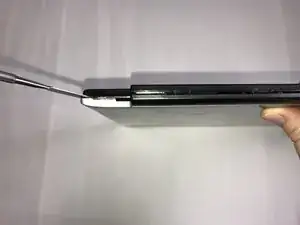

    • Begin prying apart the two halves of the screen casing, starting at the bottom near where the cables enter the casing.

    • The process for separating the two halves is to take a spudger, inserting and twisting it until the tabs holding the casing together audibly pop.

    • Slide the spudger down the divide between the casings, twisting it whenever a tab is encountered to release it.

  23. xVmOQYcvbTmQbDTe
    xVmOQYcvbTmQbDTe
    WDr3dcBlLifNKcAt
    NE1QMH51twkycIZC

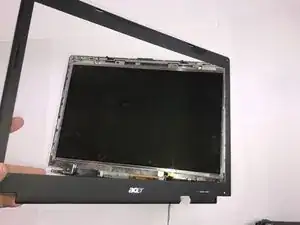

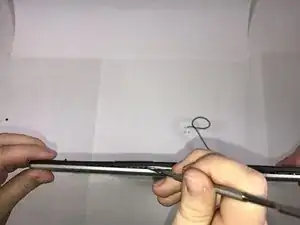

    • After the bottom has been freed and the side of the casing has started to separate, one's hands can be used safely to pry apart the rest of the casing.

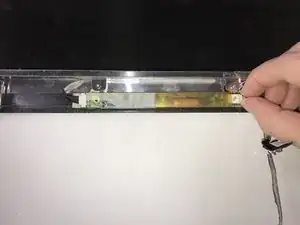

  24. VdeJ2GM3xIweqxHn
    VdeJ2GM3xIweqxHn
    HlqWWAeROpG6tIQe
    KWvxQySU3AJGoZv1

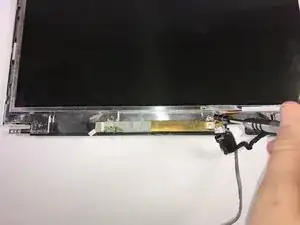

    • Release the two connectors from the screen to the circuit board on the bottom of the casing.

    • Unscrew the grounding screw for the black cable.

  25. mlZYBaAgcjDJYDtT

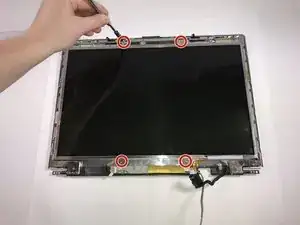

    • Undo the four 4.6mm screws located above and below the screen.

  26. FATZRNRKnyDwkggU
    FATZRNRKnyDwkggU
    IHQhRserJkqoMrwG

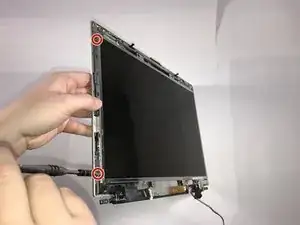

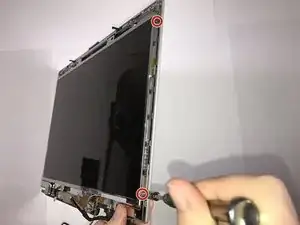

    • Remove the two lateral 4.6 mm screws on each side of the screen.

    • 'To avoid stripping out the screws, this step may require you to lift the screen away from the case to access the screws.

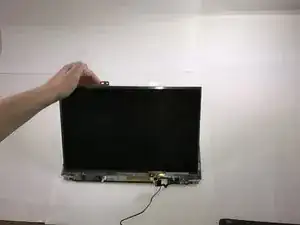

  27. 4v6GWryfFDPNAUPG
    • Tilt the top of the screen out of the case towards you, and then separate the screen from the metal frame that secures it to the casing and remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
