In this guide, you will be instructed on how to replace the optical drive in your laptop. Your optical drive allows for your computer to read CD ROMs.

This replacement is a bit difficult, and will take you 9 steps to complete. However, you must remove the hard drive, internal fan, and battery first.

  1. lZWHL4AWK3mugpRJ
    • Turn the Acer Aspire 3003WLCi so that the bottom of the laptop is facing up. Orient it so that the battery is on your left.

  2. PpuowyuoAqHgEwJy
    PpuowyuoAqHgEwJy
    FNCYvIJ4FqYAqQfA
    gKAP1jENhAl24UIb
    • There will be two switches on the back of the laptop: one at the top of the battery, and one at the bottom.

    • Shift the bottom switch into an upward position in order to unlock the battery.

    • To unlock the upper switch, forcefully push the switch up and hold it in this position.

  3. MA1tMVavehediOPb
    MA1tMVavehediOPb
    YSWiZXCdSCjeLY5p
    • While holding the upper switch in the upward position, remove the battery by pulling it out to the left.

    • You may need to be a bit forceful when pulling the battery to the left if it hasn't been removed before.

    • You have to maintain pulling the upper switch upwards, or the battery will not come out.

  4. 6aiNWQu2ad2I2CPq
    • The panel you will be removing to access the internal fan is located at the bottom of the laptop.

  5. adNIW3xoys3ucJ3P

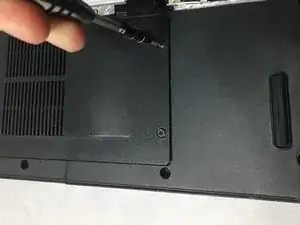

    • Using a Phillips #0 screwdriver, unscrew the two 5mm captive screws on the panel.

    • The screws will not come out of the panel. This is intentional by the manufacturer.

  6. qdIPDrhsIFns4mM2

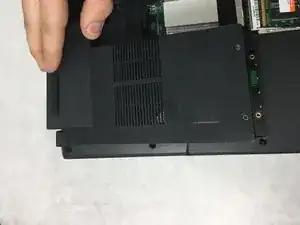

    • Lift and remove the panel.

    • If you have difficulty removing the panel, use a spudger to pry the panel open.

  7. JrnMwu55LSLB3JYV
    JrnMwu55LSLB3JYV
    HnwyNrMJCwqouytQ
    rUNiynBRKZNGVHX1

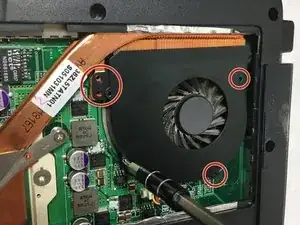

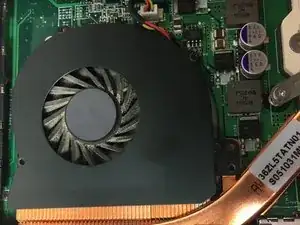

    • The fan is in the upper right corner of the panel.

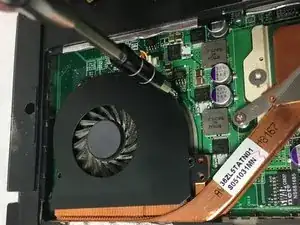

    • Using a Phillips #00 screwdriver, remove each of the four 2.5mm screws securing the fan to the laptop.

  8. yUmrKPJ3eMRyXIw6
    yUmrKPJ3eMRyXIw6
    UjUrLNPUTMPgRcwU

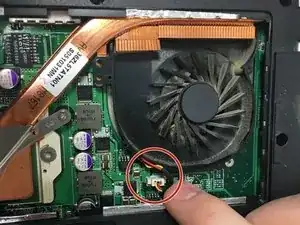

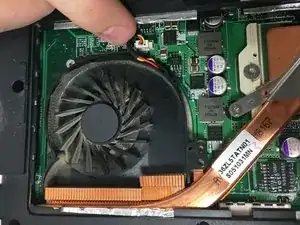

    • Disconnect the fan power cable from the motherboard by pulling the cable up and out of the connector.

  9. IVTpFudZrs3lwrrd
    IVTpFudZrs3lwrrd
    YeF3jawAOCsBuEgS

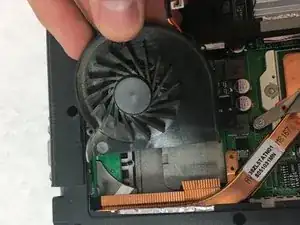

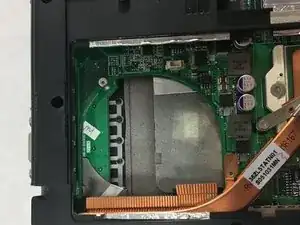

    • Remove the fan by pulling it away from its surrounding copper.

    • The fan is secured on the other side of the copper by a piece of tape, so it may help to wiggle the fan multiple times to try and loosen the tape.

  10. IlZwva1SrErUPHYR
    • Locate the hard drive access panel in the upper right corner of the laptop.

  11. FLAYSs5IIXEC3S1H
    • Using a Phillips #0 screwdriver, unscrew the two 5mm captive screws attached to the access panel.

    • The screws will not come out all the way. Once they are loose enough you should be able to open the panel.

  12. KAjpInHtc3VB5Y1H
    • Lift and remove the panel to access the hard drive.

    • This panel can be difficult to remove. If you have trouble, use a spudger to pry the cover up.

  13. GVGiyokpjHG5HWTn
    GVGiyokpjHG5HWTn
    PTHkFZGbqEg3Pv6G
    • The hard drive is connected to the computer; simply pull it back from the connector and take it out of the laptop casing.

  14. FOrgiKD52k6hBLLm
    FOrgiKD52k6hBLLm
    abeBhDE6V1bodR1J
    QvuSpGOZFeC1iQ6Q

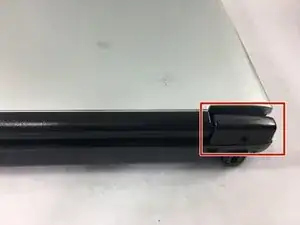

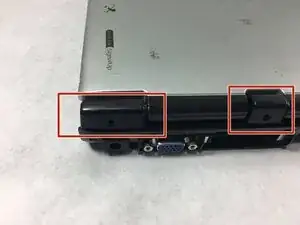

    • Turn the Acer Aspire 3003WLCi so that the back of the laptop is facing towards you.

    • You will be opening the tabs on the back of the laptop in order to access the internal components.

  15. 5EqumFOG2P3O2uHA
    5EqumFOG2P3O2uHA
    ouWbEcB45OAT5YI3
    a6KeeKrOehgs2dJx

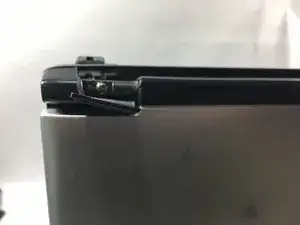

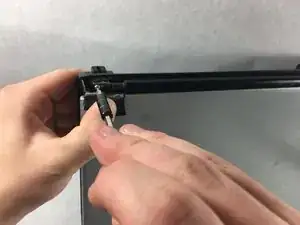

    • Using a metal spudger, lift each tab to access the screws underneath.

    • There are two screws under the leftmost tab and two screws under the rightmost tab.

    • Remove all four screws with the Phillips #00 screwdriver.

  16. AAhAV1MLvlP5AWmb
    AAhAV1MLvlP5AWmb
    Urm4HUqY6HOVEhln

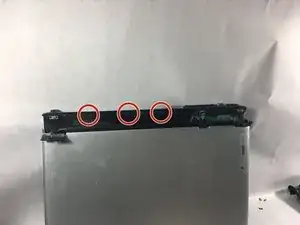

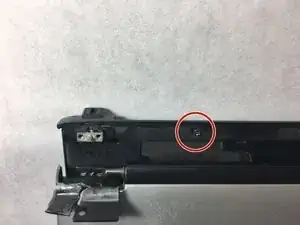

    • Lower the display until the 3 screws at the base of the display become visible.

    • Using the Phillips #0 screwdriver, remove the highlighted three 5mm screws.

  17. qTjkDkeGaQCDgfuy
    qTjkDkeGaQCDgfuy
    jZCAEZcxJEBIkWLX

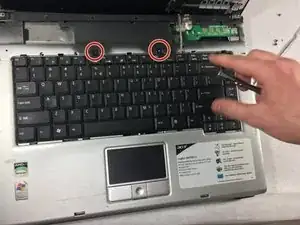

    • Using the Phillips #0 screwdriver, remove the two screws that keep the keyboard in place.

    • Remove the keyboard and unplug; the plug is under the keyboard when you lift it up.

  18. XZVd2HjFlaguuTMg
    XZVd2HjFlaguuTMg
    hgoMalXYA4MZjRmv

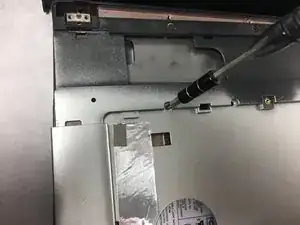

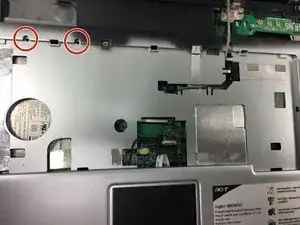

    • Using the Phillips #0 screwdriver, remove the two 5mm screws that are highlighted to get access to the internal area of the laptop.

  19. HeeOONfb55XouAcG
    HeeOONfb55XouAcG
    6wBUBvhtsLSFotxX
    cEspLrj5nZq2BWhG

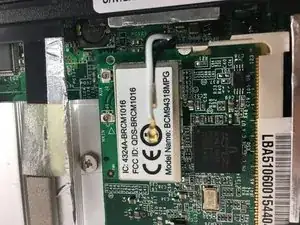

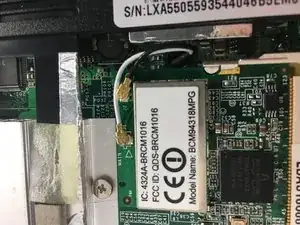

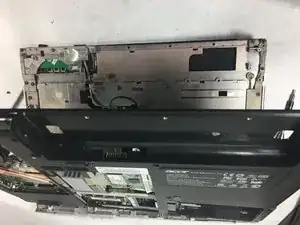

    • To completely remove the display, flip back over to the other side of the laptop. and unplug the two black and white coaxial cables.

  20. ONE4udBk6GjYQsuB
    ONE4udBk6GjYQsuB
    knITSeD2flxuuxQR

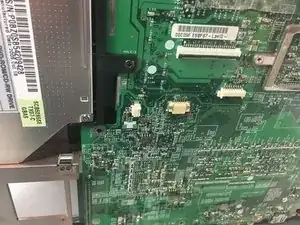

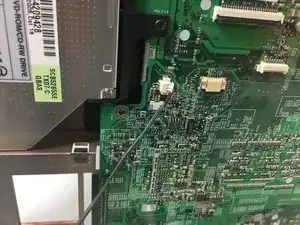

    • Flip the laptop over again and unplug the black and red cable from its socket. The display will come off entirely when the cables are removed.

  21. cvTDCMODV36Jpl3l
    cvTDCMODV36Jpl3l
    Ic2BGXJKHnRQHWcX

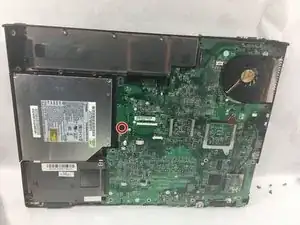

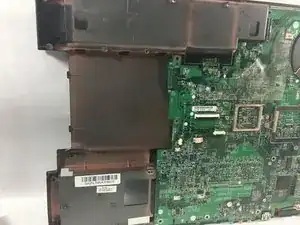

    • You now have a clear view of the optical drive.

    • Using the Phillips #0 screwdriver, remove the 5mm screw that keeps the optical drive in place.

  22. X2nLh2cXwJGldxgJ
    X2nLh2cXwJGldxgJ
    RZJDbC3IGtXPpDEY
    4ayXNoxErlgO3S1C

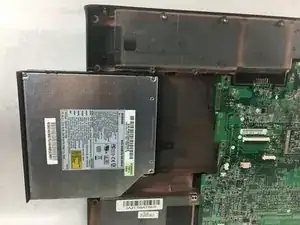

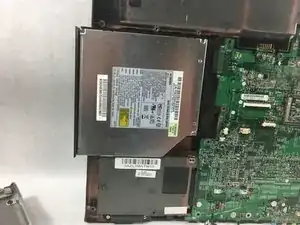

    • Slide the optical drive out of its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
