Acer Aspire 4520-5464 CD/DVD Drive Replacement

Geschrieben von: Ethan Woltersdorf
  • Kommentare: 0
Acer Aspire 4520-5464 CD/DVD Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will show you how to replace the CD/DVD Drive of an Acer Aspire 4520-5464 laptop.

  1. 3VFrUWkRfEyCPf1S

    • Shut down the computer and disconnect all external devices and cables.

    • Flip the computer over.

  2. RIK3DXVTxJUsirZi
    RIK3DXVTxJUsirZi
    N5ZcYn1HFImh3ibd

    • Ensure that the battery compartment lock tab is in the unlocked position.

    • Slide the sliding black tab away from the battery compartment.

    • The inside edge of the battery should be released, causing it to slightly pop out of the compartment.

  3. XeEBiJhH2wfS15SR

    • Grasp the inside edge of the battery and lift to fully detach the battery from the computer.

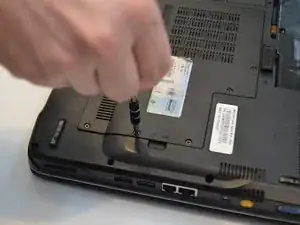

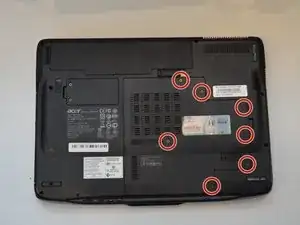

  4. AXp2eJhFtHStcDYF
    AXp2eJhFtHStcDYF
    MRlpHNQfELQEPbVZ
    TjiwMV6lvFHEBIBx

    • Remove 7 of the 2mm Phillips #1 screw from the largest panel on back of the laptop

    • Lift up the panel from the indent located on the right side.

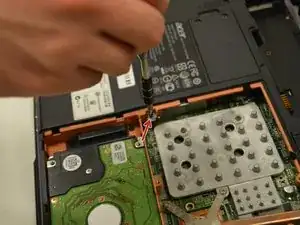

  5. 4GWdg4oHGVHg64QM

    • Remove the .5mm Phillips #1 black screw located on the left side of the panel opening.

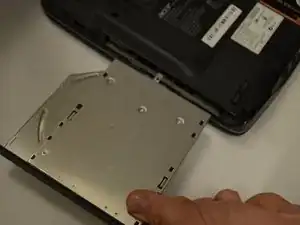

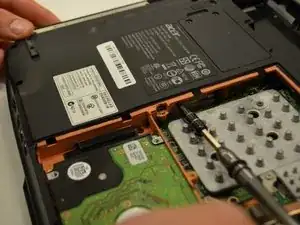

  6. wTurtobkMNHubnfP
    wTurtobkMNHubnfP
    McKCVBFrHLLqgjog

    • Using the screwdriver, push the CD drive out of the laptop through the panel exposure.

Abschluss

To reassemble your device, follow these instructions in reverse order.
