This guide will show you how to replace or upgrade the Graphics Card of an Acer Aspire 4520-5464 laptop. The graphics card allows graphics to be displayed on the screen of the laptop.

  1. 3VFrUWkRfEyCPf1S
    • Shut down the computer and disconnect all external devices and cables.

    • Flip the computer over.

  2. RIK3DXVTxJUsirZi
    RIK3DXVTxJUsirZi
    N5ZcYn1HFImh3ibd
    • Ensure that the battery compartment lock tab is in the unlocked position.

    • Slide the sliding black tab away from the battery compartment.

    • The inside edge of the battery should be released, causing it to slightly pop out of the compartment.

  3. XeEBiJhH2wfS15SR

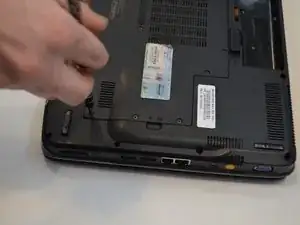

    • Grasp the inside edge of the battery and lift to fully detach the battery from the computer.

  4. waVPgdqjRGcPeA6E
    waVPgdqjRGcPeA6E
    U6MXEnG3jdRdtj5x
    JV4ZQDJDBiwCfqhm
    • Using a Phillips PH1 screwdriver, remove the seven 0.5mm screws from the largest panel on the back of the laptop.

    • Set the screws aside.

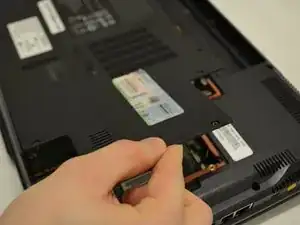

    • Lift up the panel from the indent located on the right side.

  5. Uy2PEEltkRDxZCJS

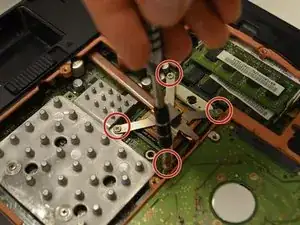

    • Unscrew the four 0.5mm Phillips #1 screws located on the heat sink in numerical order, as labeled on the device.

  6. i6otU52GxU1PGL5W

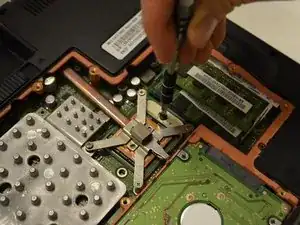

    • Using the traditional 2.5mm screwdriver, rotate the locking tab counterclockwise to unlock the graphics card.

  7. tso66WHtjZreGumN
    tso66WHtjZreGumN
    PHhiZUG1dJjxDGYI

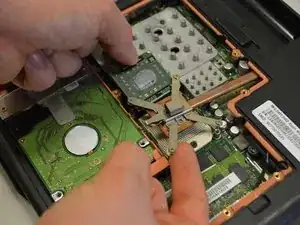

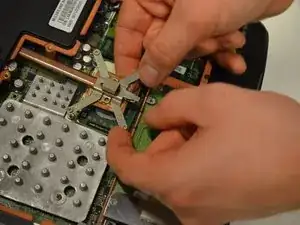

    • Lift up the heat sink line and remove the graphics card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
