Einleitung
This guide demonstrates how to replace or upgrade the Hard Drive of an Acer Aspire 4520-5464 laptop.
Werkzeuge
-
-
Shut down the computer and disconnect all external devices and cables.
-
Flip the computer over.
-
-
-

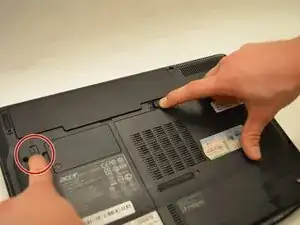

Ensure that the battery compartment lock tab is in the unlocked position.
-

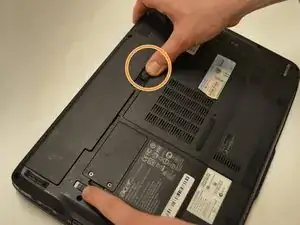

Slide the sliding black tab away from the battery compartment.
-
The inside edge of the battery should be released, causing it to slightly pop out of the compartment.
-
-
-

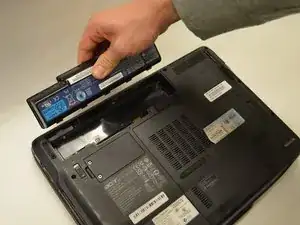

Grasp the inside edge of the battery and lift to fully detach the battery from the computer.
-
-
-
Remove the seven 2mm Phillips #1 screws from the largest panel on the back of the laptop
-

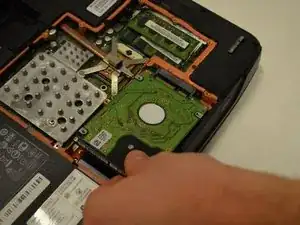

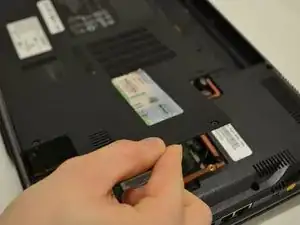

Lift up the panel from the indent located on the right side.
-
-
-

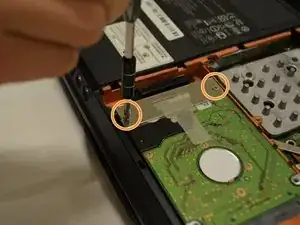

Remove the two 0.5mm Phillips #1 black screws left of the Hard Drive.
-

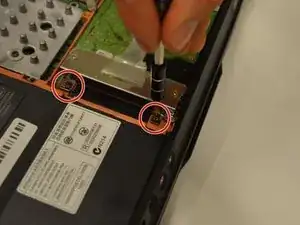

Remove the two 0.5mm Phillips #1 silver on top of the Hard Drive.
-

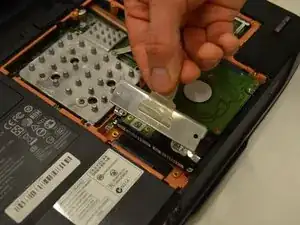

Lift up and remove the hard drive bracket by the plastic tab on top of the hard drive.
-
To reassemble your device, follow these instructions in reverse order.
